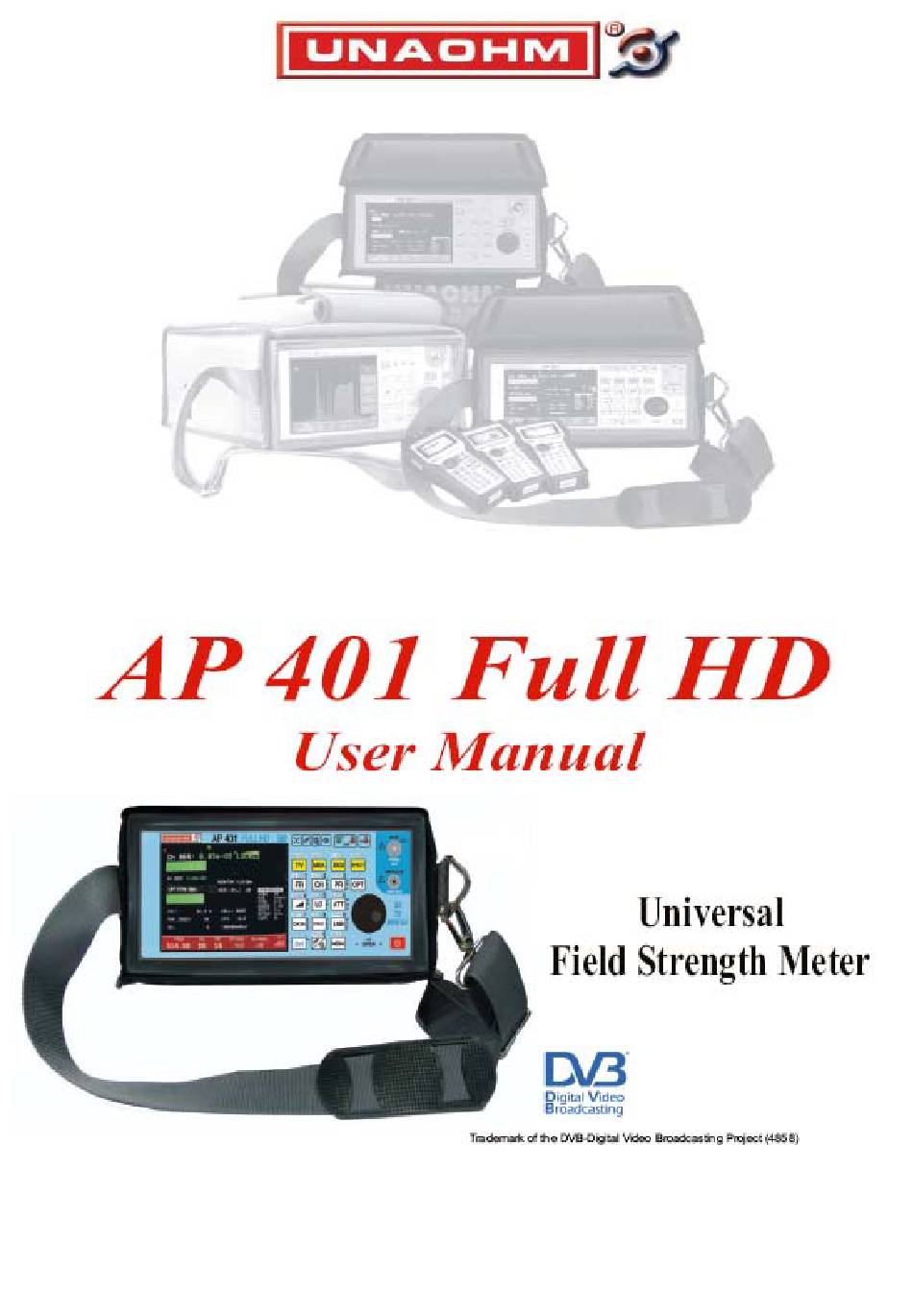

- Page 1 UNAOHM S.r.l. - Via G. di Vittorio 49 - 20068 Peschiera Borromeo (MI) Italy Tel. +39.02.36577787 - Fax +39.02.51650195 - Web : www.unaohm.it - E-mail : sales@unaohm.it ...
-
Page 2: Table Of Contents
INDEX WARNINGS ...................... 4 1.1. SAFETY STANDARDS ..................4 1.2. PRECAUTIONS ....................5 1.3. MAINTENANCE ....................5 1.4. NOTES ......................6 INTRODUCTION ....................7 2.1. TECHNICAL SPECIFICATIONS ................. 8 ... - Page 3 4.13.3. DISEQC MENU ..................26 4.13.3.1. USING THE DISEQC SCR FUNCTION ..........27 4.14. SOUND ...................... 28 4.14.1. FOR TERRESTRIAL CHANNELS .............. 28 4.14.2. FOR SATELLITE CHANNELS ..............28 4.15. SPECTRUM ANALYZER .................
- Page 4 CONSTELLATION .................... 43 7.1. Use of constellation ..................43 MPEG4/MPEG2 DECODER ................45 8.1. Introduction ....................45 8.2. Use of the Card ................... 45 8.2.1. Description of the Network information table ........... 45 ...
-
Page 5: Warnings
Note: UNAOHM S.r.l. shall bear no responsibility for any use of the instrument which does not comply with the indications contained herein. 1.1. -
Page 6: Precautions
1.2. PRECAUTIONS • The liquid contained within the display is toxic. If the module breaks and liquid comes out, avoid touching it with your hands or any other parts of the body, especially the eyes and mouth. In the event of any contact, wash immediately with soap and water. •... -
Page 7: Notes
This symbol indicates circuit components where high-voltage may be present UNAOHM S.r.l. reserves the right to modify the product described herein at any time, for either technical or commercial purposes, as well as to adapt the product to the legal requirements of the various countries. -
Page 8: Introduction
2. INTRODUCTION The AP401 is a total coverage field strength meter for terrestrial, cable (CATV) and 1 satellite TV bands, which offers the option of including the return channel of 5-65 MHz. The instrument is also equipped with an optical input for measuring optical signals in fiber- optic distribution networks. -
Page 9: Technical Specifications
2.1. TECHNICAL SPECIFICATIONS Input characteristics Level VHF/UHF/SAT: from 20 to 130 dBµV (-90 to +20 dBm). HF: from 40 to 130 dBµV (-70 to +20 dBm). OPTICAL: from -20 to + 2 dBm (+12 dBm with attenuator) Units of measure RF: dBµV, dBmV, dBm and V, dB (for ratio measurements). - Page 10 Frequency characteristics Frequency ranges VHF/UHF/SAT: from 45 to 2150 MHz (2) and HF from 5 to 65 MHz. OPTICAL: 1310nm, 1490nm, 1550nm Tuning PLL frequency synthesis with direct frequency, channel or stored program programming by means of a keyboard and/or Shaft Encoder.
- Page 11 Display Characteristics Viewing area 5.7 ” (Diagonal). Resolution 320 (L) x 240 (H) pixels. Contrast Ratio 300:1 Brightness 400 cd/m Surface Treatment Anti-Reflection and Hard-coating (>2H). Viewing Angle ±55 ° (L), -30/+60 ° (H). Backlighting LCD. Reception standards All colour PAL, SECAM and NTSC encodings. Functions The screen is capable of displaying: 1) Full screen TV picture.
-
Page 12: Standard Accessories
Data Logger Storage capacity 5 groups including 50 programs each, 1500 entries Power supply characteristics Alternating current through external power supply, from 90 to 260 V 50/60 Hz Power 50 W. Internal direct current Through one 16 V / 4.2 Ah Li-Ion battery (standard). Approx. -
Page 13: Optional Accessories
2.3. Optional ACCESSORIES FACTORY INSTALLED SB 5 ÷ 65: 5 to 65 MHZ CONVERTER MODULE ( NG 96-F: INTERNAL NOISE GENERATOR FP 2E: CAR BATTERY CHARGER ATO-10: FC/APC 10 DB CALIBRATED OPTICAL ATTENUATOR BR FC/APC – FC/PC: FC/APC – FC/PC CONNECTION ADAPTER BR FC/APC –... - Page 14 Figure 1 Front control panel AP401FULL-HD_rev.09_UK...
- Page 15 Figure 2 Right side Figure 3 Left side AP401FULL- HD_rev. 09_UK...
-
Page 16: Controls, Connections And Indicators
3. CONTROLS, CONNECTIONS AND INDICATORS Front Panel: 1. Scale for relative level measurement 2. Shaft-encoder dial (turn to perform adjustments and settings; press to perform the “ENTER” command) 3. Terrestrial TV and SAT band RF input connector 4. Alphanumeric keyboard and function keys 5. -
Page 17: Operating Instructions
4. OPERATING INSTRUCTIONS 4.1.1. POWER SUPPLY The field strength meter may be powered in three modes: 1) From the AC mains network by means of an external power supply. The power supply accepts mains voltage ratings of 90V to 260 V. The protection fuses are internal and are not accessible. -
Page 18: Battery Status
4.3.1. BATTERY STATUS The battery icon on the upper left-hand portion of the screen provides information regarding the battery’s status and indicates the device’s residual autonomy. 4.3.1.1. CONDITIONS OF USE AT START UP Upon activation, the instrument configures itself with the same usage conditions as when it was last shut off, with the following exceptions: •... -
Page 19: Using The Local Oscillators (Lo)
4.5.2. USING THE LOCAL OSCILLATORS (LO) By repeatedly pressing the LO (4) button, depending on the settings inserted within the menu, the satellite frequency will be displayed as follows: FOR THE “DEFAULT LO” SETTING: • I IF: 1 IF frequency is displayed •... -
Page 20: Inspecting/Editing Stored Channels
4.6.1.1. INSPECTING/EDITING STORED CHANNELS When the table of the currently stored program is shown on the display, the program itself can be edited using the procedure below. Press the MENU button to make the following commands appear on the right hand side of the display: •... -
Page 21: Measurement
4.7. MEASUREMENT The instrument is equipped with two inputs, one for the measurement of the RF signals and one for the measurement of the optical signals. The RF signal must be connected to the RF IN (3) input The optical signal must be connected to the OPT IN (6) input ATTENTION RF INPUT: voltage values exceeding the maximum limit (100 VDC or 5 Vpp) could result in damage to the instrument. -
Page 22: Measurement Bandwidth
5. C/N mode: allows for automatic or manual measurement mode to be selected for measuring the signal-C/N noise ratio. 6. C/N Prmt: this function is used to set the parameters (noise reference frequency) necessary for automatic measurement mode. 4.7.3. MEASUREMENT BANDWIDTH Two bandwidths are available in terrestrial band, n (100 kHz) and w (1 MHz). -
Page 23: Measuring The Optical Power
NOTE: As with any receiver, the presence of several high-level channels within the reception band can generate spurious signals. If the operator does not use the attenuator appropriately under these conditions, in the case of automatic measurements, frequencies which are not actually occupied by channels could be measured at an unexpected level. -
Page 24: Measuring Optical Losses
4.9. MEASURING OPTICAL LOSSES In fibre optic distribution networks, it is possible to measure the optical losses at any given point downstream from the measurement point used for the ref POW. The measurement can be carried out in the following manner: ⇒... -
Page 25: Satellite Video Polarity
The measurement can be activated in MEASUREMENT mode by pressing the MENU button and turning the shaft encoder’s dial to select the C/N field. Press ENTER to confirm the operation. The measurement will be performed either automatically or manually, based on that which has been selected in the MEA menu’s C/N PRMT submenu. -
Page 26: Lnb Menu
If the consumption value exceeds 500 mA, the protection function will intervene to disconnect the power supply and will emit an acoustic beep to avert the user. 4.13.1. LNB MENU The menu for configuring the settings of the LNB function can be accessed by holding down the LNB button. -
Page 27: Diseqc Functions
4.13.2. DiSEqC FUNCTIONS Pressing the DiSEqC button allows the user to alternatively transmit the commands selected in the menu described below. The DiSEqC command can only be transmitted if the LNB is powered on (but even with a voltage of 0 V). 4.13.3. -
Page 28: Using The Diseqc Scr Function
2. STOP: stops the rotation of the motor. 3. LIMITS: this command enables the following functions: Disable Limits: clears the set limits from the motor’s memory. Set East Limit: saves the limit position for rotation towards the east. Set West Limit: saves the limit position for rotation towards the west. Exit: exits the menu. -
Page 29: Sound
Tuning can only be carried out by setting the frequency of the transponder in one of the following manners (it is not possible to use the 1 IF frequency): 1) Using the numeric keyboard and pressing the ENTER button to confirm. 2) Turning the shaft encoder until the display shows the desired frequency. -
Page 30: Spectrum Analyzer
BANDWIDTH: selects the bandwidth for the subcarrier. The following values are available: narrow (for stereo channels), medium (for normal mono channels), wide (for over-modulated channels) and extra wide (for extremely high deviation channels). In order to carry out the configuration: •... -
Page 31: Spect Menu
4.15.2. SPECT MENU Hold down the SPECT button to access the relative menu: 4.15.2.1. SPECTRUM GRID Press the ENTER button and turn the shaft encoder to enable or disable the display of the level reference grid upon the screen. Press ENTER to confirm. 4.15.2.2. - Page 32 Turn the DIAL to highlight the desired plan and press ENTER. For each of the five plans, a menu will appear which allows for the following actions to be carried out: • RF LOG: select this item to change the settings for logging the optical measurements and the measurements of the optical signals converted into RF.
-
Page 33: The Main Menu
4.17. THE MAIN MENU The Main Menu can be accessed by holding down the MENU button for about 2 seconds. It is used to customize the operating mode, as well as to insert settings and to perform less frequent operations. Use the Shaft Encoder to select the desired menu item and press ENTER. -
Page 34: Menu Ch (Channel)
• the level of the highest analogue channel found during the search. • the power of the most powerful digital channel found during the search. • a table containing the progressive number, the channel, the channel type and the measured level for each search result. Press the MENU button. -
Page 35: Lte
4.18.3. LTE The LTE function will analyze the best coexistence of digital terrestrial signals with the latest LTE signals which, because of their frequency and power, without proper protection would risk interfering with the last available MUX DVB-T. This function will help to calibrate the LTE signal protection filters or to assess any performance of those used. -
Page 36: Demodulator Cards For Dvb-S/S2, Dvb-T/T2, Dvb-C
6. DEMODULATOR CARDS FOR DVB-S/S2, DVB-T/T2, DVB-C 6.1. INTRODUCTION The modulation systems adopted for digital signal transmissions are optimized for the various types of transmission: • QPSK/8PSK: used for satellite transmissions due to their significant resistance to noise; • QAM: used for cable transmissions due to their particular efficiency in taking advantage of the available band;... -
Page 37: Use Of The Card
NM: (Noise Margin) indicates the value (expressed in dB) of the reception margin. The greater the value, the greater the reception margin. RU: number of errors not corrected (from 0 to 65535), followed by the indication of the time during which the errors were counted. The timer, as well as the indication of the errors, will be reset when the QPSK signal is not locked. -
Page 38: Measurements In Ofdm (Dvb-T/T2)
6.3. MEASUREMENTS IN OFDM (DVB-T/T2) OFDM is the name of the transmission system adopted in Europe for the transmission of digital television signals over the air. The features of this system can be summarized by the following: • Occupation of a channel frequency equal to that of the current analogue transmissions. •... -
Page 39: Nm (Noise Margin)
6.3.3. NM (Noise Margin) The Noise Margin is a calculated estimate (in dB) of how much the carrier/noise ratio can deteriorate before reception will be compromised, based on the set reception parameters and the measured MER. The higher the noise margin, the lower the possibility of encountering any problems. 6.3.4. -
Page 40: Aer (Adaptive Equalizer Response) In Ofdm
While the OFDM card is function, the tuning frequency can be changed, like for UHF band in analogue. It is necessary to keep in mind, however, that the instrument’s response time is longer in digital mode. When storing a program, by pressing the 2nd and STORE buttons, the digital parameter settings are stored as well, along with the other usual values like frequency, etc. -
Page 41: Technical Characteristics
6.3.8. TECHNICAL CHARACTERISTICS DVB-T Frequency range 42 ~ 870 MHz Modulation QPSK, 16QAM, 64QAM, (automatic). Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 (automatic). Spectrum Direct/Inverted (automatic) Guard 1/4, 1/8, 1/16, 1/32 (automatic). Carriers number 2k, 8k, (automatic). Bandwidth 7 MHz and 8 MHz. Up to 36 dB Noise Margin: in QPSK from 0 to +28.0 dB. -
Page 42: Measurements In Qam
6.4. MEASUREMENTS IN QAM 6.4.1. CH BER in QAM It is quite rare for a QAM signal to be entirely free of errors; a signal of optimal quality will have an error rate of less than 1 per 10 million (1E-7), while a poor signal will have an error rate of more than 1 per 10,000 (1E-4) (This refers to the signal and not an eventual image). -
Page 43: Use Of The Card
6.4.5. Use of the Card Set the frequency of the QAM digital channel. In order to activate the QAM card, press the DIGI button. If the OFDM card is installed as well, a menu will appear prompting the user to choose between the two systems: in this case, turn the Shaft Encoder to select the QAM option and then press ENTER. -
Page 44: Constellation
7. CONSTELLATION This feature allows to display of the constellation diagram that refers to the modulation of the tuned signal. Looking at the constellation can be a first qualitative assessment of the signal. The measure of signal quality is shown in numerical form in dB of the MER (Modulation Error Ratio). - Page 45 DVB-S QPSK Signal DVB-S2 8PSK Signal DVB-T 16 QAM Signal DVB-T 64 QAM Signal EXAMPLE OF QUALITY VALUATION OF A DVB-T SIGNAL OBSERVING THE CONSTELLATION DVB-T 64 QAM Signal DVB-T 64 QAM Signal Poor quality good quality Presence of noise low noise AP401FULL- HD_rev.
-
Page 46: Mpeg4/Mpeg2 Decoder
8. MPEG4/MPEG2 DECODER 8.1. Introduction The MPEG card allows for unencrypted digital transmissions to be viewed. This however is not the most useful function that it performs within the instrument in which it is installed, as the quality of a digital signal cannot be judged by the video image, but only by means of specific measurements like the BER or the C/N ratio (albeit much less reliable and accurate). - Page 47 NOTE: Certain programs may not be transmitted as declared. In such cases, the corresponding line may be green despite the fact that the signal is encrypted, or vice versa. AP401FULL- HD_rev. 09_UK...
-
Page 48: Program Viewing
8.2.2. Program viewing Use the Shaft Encoder to highlight the line of the desired program, then press the ENTER or TV button. The same procedure can be used to select a radio program. The MPEG card may require a few seconds in order to select the program chosen amongst those available and decode it before displaying it on the screen. -
Page 49: Auxiliary Inputs And Outputs
AUXILIARY INPUTS AND OUTPUTS 10.1. STANDARD SCART CONNECTOR This connector allows audio and video exchange with external devices; it is therefore possible to control an external monitor as well as to receive signals for the field strength meter’s monitor. Communication can be obtained by holding down the TV button and selecting SOURCE <EXT>. -
Page 50: Pc Management And Remote Control Software
PC MANAGEMENT AND REMOTE CONTROL SOFTWARE 11.1. General Information The remote control software is a PC application that performs the following functions 1 Management of program groups intended for the user programs list; 2 Management of program groups intended for the Data Logger; 3 Management of the data acquired by the Data Logger;... - Page 51 Figure 1: Main screen of the software The program contains various sections, the names of which are listed below in both the Italian and English languages: User Program Setup (Impostazione programmi utente) ⇒ Data Logger Setup (Impostazione Data Logger) ⇒ Data Logger ⇒...
-
Page 52: Select Rs232 Port
12.1. Select RS232 Port In order to establish a connection between the instrument and a PC, it is necessary to indicate the RS232 or USB port on the PC to which the instrument is connected. In order to Select RS232 Port do so, click the icon, which opens the window shown in figure 2. -
Page 53: User Program Setup
Note: In order to use the remote control software, the instrument must have the following RS232 configuration: baud rate = 38400 bps data bits = 8 parity = none stop bits = 1 Flow control = Xon / Xoff 12.2. User Program Setup This section allows for the creation, management, digital storage and transmission of plan various user program groups to the instrument (a program group is called a “... -
Page 54: Data Logger Setup
It is possible to manage both terrestrial and satellite programs. For each type, both analogue and digital transmissions can be handled. In order to create a program, all of its characteristic parameters must be properly configured. Certain parameters require numeric values to be inserted into the relative text fields, while others require of one of the available drop down menu options to be selected (see figure 3). -
Page 55: Data Logger
12.4. Data Logger This section allows for the management of the Data Logger’s entries. The following functions are available, as shown in figure 5: ⇒ Buttons: RF LOG: • select this button to allow for the acquisition of RF measurements OPT Log: •... -
Page 56: Interoperability Certification Testing (Ict)
RF Log AP401 plan Opt Log Start Acquisition Download data Clear last Clear all Figure 5: Data Logger 12.5. Interoperability Certification Testing (ICT) This section allows for the production of important printouts for the certification of a terrestrial and/or satellite TV system. The guided procedure produces the reports in the currently selected language. - Page 57 • If a second upright is present, proceed by selecting the number of the first acquisition and continue as previously described until all of the system’s acquisitions and uprights have been completed. If there is no second upright, on the other hand, leave the field blank and confirm. •...
-
Page 58: Warranty
WARRANTY The conditions of warranty are stated in the “GENERAL CONDITIONS OF SALE" available for consultation at www.unaohm.it. Revision operations are carried out by Technical Support at our facility located at Via G. Di Vittorio, 49 20068 Peschiera Borromeo (Milan), where the units must be sent. Shipment must be carriage unpaid with adequate packing, preferably in the original packing in order to prevent damage during transportation.
