Introduction
The 4606-9102 Liquid Crystal Display (LCD) Annunciator for the 4010ES provides remote
annunciation of the Fire Alarm Control Unit (FACU) status, see Figure 1. Visual status is
provided using an LCD and LEDs. Audible annunciation is provided using a piezo sounder. Use
the keyswitch to lock or enable the annunciator switch.
In this
publication
Specifications
Installing the 4606-9102 LCD Annunciator
Address chart
General wiring precautions
Specific wiring precaution
Wire length tables
Checkout procedure
Cautions
READ AND SAVE THESE INSTRUCTIONS
must be followed to avoid damage to this product and associated equipment. Product operation and reliability depend
and warnings
upon proper installation.
DO NOT INSTALL ANY SIMPLEX® PRODUCT THAT APPEARS DAMAGED
Simplex product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim
with the carrier and notify an authorized Simplex product supplier.
ELECTRICAL HAZARD
repairs should be performed by a representative or authorized agent of your local Simplex product supplier.
STATIC HAZARD
EYE SAFETY HAZARD -
eye safety limits. Do not use magnification (such as a microscope or other focusing equipment) when viewing the output
of this device.
SULFURIC ACID WARNING -
can destroy fabric. Replace any leaking or damaged battery while wearing appropriate protective gear. If you come in
contact with sulfuric acid, immediately flush skin or eyes with water for 15 minutes and seek immediate medical attention.
© 2011-2016 Tyco Fire Protection Products. Specifications and other information shown were current as of publication and are subject to change without notice.
TYCO, SIMPLEX, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited.
Annunciator installation instructions
FIRE
ALARM
ALARM
ACK

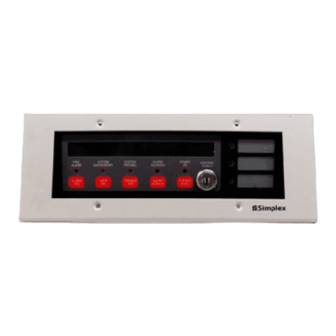

Figure 1. 4606-9102 LCD Annunciator
Topic
- Disconnect electrical field power when making any internal adjustments or repairs. All
- Static electricity can damage components. Handle as follows:
• Ground yourself before opening or installing components.
• Prior to installation, keep components wrapped in anti-static material at all times.
Under certain fiber optic application conditions, the optical output of this device may exceed
Battery contains sulfuric acid, which can cause severe burns to the skin and eyes and
4606-9102 for 4010ES LCD
PRIORITY 2
SYSTEM
SYSTEM
POWER
ALARM
SUPERVISORY
TROUBLE
ON
ALARM
SUPV
TBL
ACK
ACK
ACK
- Follow the instructions in this installation manual. These instructions
ALARM
SILENCED
DISPLAY
TIME
ALARM
SYSTEM
SILENCE
RESET
Page
2
2
4
7
7
7
8
- Upon unpacking your
579-977
Rev. C
Advertisement
Related Manuals for Simplex 4606-9102
Summary of Contents for Simplex 4606-9102
- Page 1 © 2011-2016 Tyco Fire Protection Products. Specifications and other information shown were current as of publication and are subject to change without notice. TYCO, SIMPLEX, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited.
-
Page 2: Specifications
Use a 2975-9206 box (2¾ in/69.85mm deep) or a 2975-9217 box (1¾ in/44.75mm deep). Installing the Complete the following steps to install the 4606-9102 LCD Annunciator: 4606-9102 LCD 1. Terminate the annunciator’s communication (COMM) and power lines as shown in Figure 2. - Page 3 4606-9102 LCD Annunciator installation instructions Installing the 4606-9102 LCD Annunciator 24C (0V) +24VDC +24VDC 24C (0V) -COMM (RUI-) +COMM (RUI+) SHIELD -COMM (RUI-) +COMM (RUI+) SHIELD GROUND HARNESS 733-936 Figure 3. Power and RUI Communicating Wiring to TB1 and TB2 3.
- Page 4 4606-9102 LCD Annunciator installation instructions Address chart Table 2: Address chart SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 ADDRESS ADDRESS 1 ADDRESS 2 ADDRESS 3 ADDRESS 4 ADDRESS 5 ADDRESS 6 ADDRESS 7 ADDRESS 8 ADDRESS 9 ADDRESS 10 ADDRESS 11...
- Page 5 4606-9102 LCD Annunciator installation instructions Table 2: Address chart SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 ADDRESS ADDRESS 65 ADDRESS 66 ADDRESS 67 ADDRESS 68 ADDRESS 69 ADDRESS 70 ADDRESS 71 ADDRESS 72 ADDRESS 73 ADDRESS 74 ADDRESS 75 ADDRESS 76...
- Page 6 7. Using the four oval-head screws provided, mount the trim plate to the back box, see Figure 6. Two slotted screws (part no. 412-059) Back box LCD assembly Four oval head screws Trim plate (part no. 411-702) Figure 6. Expanded view of 4606-9102 LCD Annunciator Continued on the next page.
-
Page 7: Wire Length
Communication wiring is supervised and power limited. • 4606-9102 LCD Annunciator wiring that leaves the building, above or below ground, requires overvoltage suppression at both ends for the communication and the power wiring. Communication and power wiring must meet the following requirements using: - A Simplex Model 2081-9044 overvoltage protector (200 mA) or a Simplex Model 2081-9027 (200 mA) isolated loop circuits protector. -
Page 8: Checkout Procedure
4606-9102 LCD Annunciator installation instructions Wire length tables Table 3: With 2081-9044 or 2081-9027 Circuit Protectors Total Current 12 AWG 14 AWG 16 AWG 18 AWG (Amps) (3.309 mm²) (2.801 mm²) (1.309 mm²) (0.823 mm²) 0.100 2,500ft (762m) 2,500ft (762m) 2,371ft (722.68m)
