Summary of Contents for Specialized Myka
- Page 1 OWNER’S MANUAL...
- Page 3 TABLE OF CONTENTS Introduction... Seat Post / Fork Compatibility... Accessories... Frame Features... Frame Geometry... Shock Setup... Optional Derailleur Guard Installation... Schematic and Specifications... Warranty...
- Page 4 Frames or parts under high stress may fail, causing you to lose control or fall. Because of the risk involved, Specialized recommends that you conduct a thorough inspection before each ride. If you miss a jump, ditch your bike in mid crash, dump or launch your bike without you on it, inspect yourself for injury, then carefully inspect your bicycle for damage.
- Page 5 Specialized does not warrant the bicycle frame or components for such activities, and expressly disclaims all warranties, including the warranty of fitness for particular purpose and merchantability.
- Page 6 Your bicycle has been engineered and tested with specific components and parts. Because of the great variety in these items, it is impossible for Specialized to test and approve of all possible combinations. Modifying the frame, fork, or any of the components may make your bike unsafe.
-
Page 7: Fork Setup Information
FORK SETUP INFORMATION WARNING! The FSRxc and Myka frames are compatible ONLY with single crown forks that have travel of 4.0” (100mm) or less. Use of different styled forks or forks with longer travel may result in catastrophic failure of the frame which may result in serious personal injury or death. - Page 8 MUDFLAP FENDER The Stumpjumper Mudflap is compatible with all 04- 06 Stumpjumper FSR, 07 Myka and 0-07 FSRxc Models, through your local Specialized dealer. SJ MudFlap Part #: 9894-00 CHAINSTAY SLEEVE Replacement custom neoprene chainstay SlapJacket sleeves are available through your local Specialized dealer.

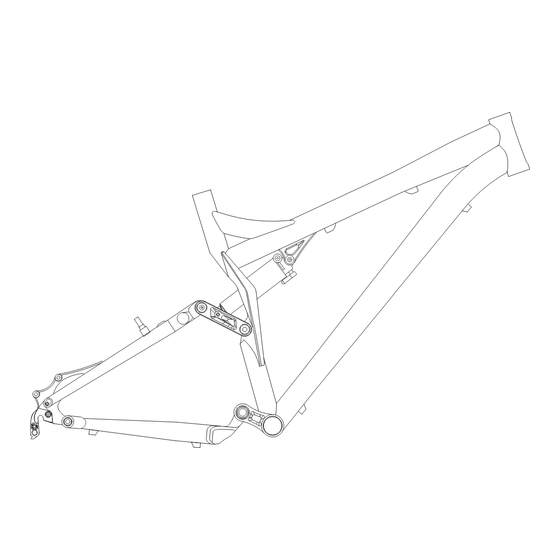

- Page 9 FSRxc / MYKA FRAME FEATURES . Main Frame . Seatstay . Chainstay 4. Shock Link . Main Pivot 6. Dropout (Horst) Pivot 7. Shock Link at Seatstay Pivot 8. Shock Link at Frame Pivot 9. Lower Shock Eyelet 0. Upper Shock Eyelet .
- Page 10 FSRxc / MYKA FRAME GEOMETRY FSRxc Geometry Men’s Small *Top Tube Length 0mm (.6“) **Standover Hgt 7mm (8.46”) Head Tube Length 00mm (.94”) Head Tube Angle 69° Seat Tube Angle 7° BB Height mm (.64”) Wheelbase 0mm (4.46”) Chainstay Length 44mm (6.70”)
- Page 11 FSRxc / MYKA FRAME GEOMETRY...
- Page 12 REAR AIR SHOCK SETUP Fox Triad X-Fusion RLA / RC Sag Setting: Set the sag (0-% of shock stroke). See attached pressure chart for starting air pressure. Note - the chart is only a starting point, actual sag needs to the checked and adjusted on the bike, while riding, and at regular intervals.
- Page 13 DERAILLEUR GUARD INSTALLATION The Specialized Derailleur guard is available separately through your local Specialized dealer. The guard works with solid or Q/R axle types and is compatible with all Mountain bike models using the 00-006 Enduro/Demo derailleur hanger. Guard Part #: 9896-400...
- Page 15 NOTE: Bearing and Bolt Kits are available only through your local Specialized dealer. To retain your warranty and for your safety, all maintenance should be performed by your local Specialized dealer. Part # Qty. Part Description BB Pivot Bearing Dropout Pivot Bearing...
- Page 16 ADDITIONAL CONDITIONS This Limited Warranty is made only to the original owner of this new Specialized bicycle or frameset purchased from an authorized Specialized dealer, and it shall remain in force only as long as the original owner retains ownership of the Specialized bicycle. This Limited Warranty is not transferable. In order to exercise your rights under this limited warranty, the bicycle or frameset must be presented to an authorized Specialized dealer, together with a receipt, bill of sale or other appropriate written proof of purchase which identifies the bicycle or frameset by serial number.
- Page 17 USEFUL PRODUCT LIFE CYCLE Every Specialized bicycle and frameset has a useful product life cycle. The length of that useful product life cycle will vary with the construction and materials of the bicycle or frameset, the maintenance and care the bicycle or frameset receives over its useful product life cycle, and the type and amount of use the bicycle or frameset is subject to. Uses in competitive events, trick riding, ramp riding, jumping, aggressive riding, riding on severe terrain, riding in severe climates, riding with heavy loads, commercial activities and other types of non-standard use can dramatically shorten the useful product life cycle of a Specialized bicycle or frameset.
- Page 18 SPECIALIZED BICYCLE COMPONENTS 0 Concord Circle, Morgan Hill, CA 907 (408) 779-69 15130 Concord Circle Morgan Hill, CA 95037 www.specialized.com © 2008 Specialized Bicycles PN# W2080308 Please note all instructions are subject to change for improvement without notice. Rev., April 007...
