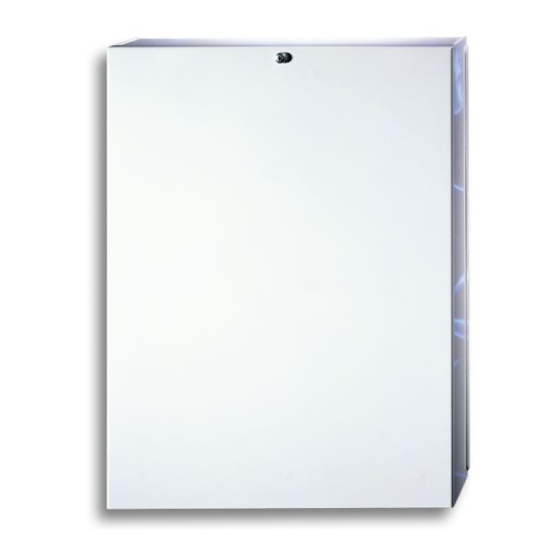

Texecom Premier Elite Series Quick Reference Manual
Hide thumbs
Also See for Premier Elite Series:
- Installation manual (152 pages) ,
- User manual (44 pages) ,
- User manual (7 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Texecom Premier Elite Series
Summary of Contents for Texecom Premier Elite Series
- Page 1 Quick Reference Guide Premier Elite Series INS222-10...
-
Page 2: Installation Sequence
Quick Start Guide Premier Elite Series Quick Start Guide 1 Output Module ( Elite 12** 4 to 16 Zones ( Elite 12-W) 1 Output Module ( Elite 24 2 keypads ( Elite 12-W) 0 Expanders ( Elite 12 8/4 to 24 zones (... - Page 3 Premier Elite Series Quick Start Guide 10: Confirm Devices 12: Programming the Control Panel The "Confirm Devices" menu will appear check and make sure all Please refer to section 5 for instruction on programming the control panel. / installed Keypads and Expanders are showing, press /...
-
Page 4: Wiring Zones
Quick Start Guide Premier Elite Series Wiring Zones Wiring Types When using this configuration, no more than 10 detectors can be connected to each zone. Terminal types are shown below. Triple End Of Line (TEOL) 12/12-W/24/24-W/48/48-W/64-W 48/88/168/Keypads & 8XP... -
Page 5: Programming Guide
Premier Elite Series Quick Start Guide Programming Guide Introduction The Premier Elite range of control panels are all programmed using a simple menu based system. The LCD keypad information displayed for each option is question based. Simple use of the ... -
Page 6: Zone Setup
Quick Start Guide Premier Elite Series 1 Zone Setup Premier Elite 12:13.16 Tue 26 YES to Select:- Zone Setup ? ? ? ? / Zone Type Use the Numerical keys to Attributes 1 enter the zone number Attributes 2 Use the ... - Page 7 Premier Elite Series Quick Start Guide Zone Setup Custom Attributes - Press to edit, to select an attribute, to accept (Zone Response S* = Seismic Zone D* = Seismic Debug ...
-
Page 8: Area Programming
Quick Start Guide Premier Elite Series 2 Area Programming Premier Elite 12:13.16 Tue 26 YES to Select:- Zone Setup ? ? ? ? YES to Select:- Area Programming / Use the Numerical keys or 0 Timers to select the option. -
Page 9: Global Options
Premier Elite Series Quick Start Guide Area Programming - s to select an option, no to edit, to select an area group (1-4), use to select areas A – H and I –P), to accept. -
Page 10: Monitor Hardware
Quick Start Guide Premier Elite Series Global Options System Timers - to select a timer, press and then to enter a value, to accept Exit Settle Time Pulse Period 3 Confirmation Dly Global Bell Dly.... -
Page 11: Keypad Setup
Premier Elite Series Quick Start Guide Global Options Holiday Dates - to select a holiday date, to enter the required date ( accept Speaker Tones to select a tone type,... -
Page 12: Expander Setup
Quick Start Guide Premier Elite Series 5 Expander Setup Premier Elite 12:13.16 Tue 26 YES to Select:- Zone Setup ? ? ? ? YES to Select:- Expander Setup / Use the Numerical keys to enter the zone number Expander Areas ... -
Page 13: System Outputs
Premier Elite Series Quick Start Guide 6 System Outputs Premier Elite 12:13.16 Tue 26 YES to Select:- Zone Setup ? ? ? ? YES to Select:- System Outputs / Use the Numerical keys or 0 Panel Outputs to select the option. - Page 14 Quick Start Guide Premier Elite Series Coms Failed Custom 4 Stage B Low Fob Battery Coms Successful Custom 4 Stage A or B PS Failure Coms Active Com 1 Fault Charger Fault UDL Lockout Com 2 Fault GSM Tamper UDL Call Active...
-
Page 15: Udl/Digi Options
Premier Elite Series Quick Start Guide 7 UDL/Digi Options Premier Elite 12:13.16 Tue 26 YES to Select:- Zone Setup ? ? ? ? YES to Select:- UDL/Digi Options / Use the Numerical keys or 0 Reset Digi to select the option. - Page 16 A = Dial All Numbers Enable Texecom THIS MENU ONLY APPEARS ONCE THE TEXECOM CONNECT PROTOCOL HAS BEEN SELECTED. * Connect App SUBSEQUENT MENUS ARE INCREMENTED ACCORDINGLY SO 5 BECOMES 6 etc Used to enable the Connect App. Communicates with our secure servers and issues an app code to be entered into the Users Smart device.
-
Page 17: Setup Users
Premier Elite Series Quick Start Guide UDL/Digi Options ComIP Mask - Press to edit, to enter a Subnet Mask, to accept Polling /SMG IP - Press to edit,... - Page 18 Quick Start Guide Premier Elite Series Setup Users Select User - to enter enter a user number, to Delete User, to assign a Radio FOB, to Copy a TAG, to Import a TAG,...
-
Page 19: Engineer Utilities
Premier Elite Series Quick Start Guide 9 Engineer Utilities Premier Elite 12:13.16 Tue 26 Engineer Code YES to Select:- Zone Setup ???? YES to Select:- Engineer Utils / Use the Numerical keys or 0 View Event Log to select the option. -
Page 20: Engineer Utils
Quick Start Guide Premier Elite Series Engineer Utils View System Log to view System, Alarm or Mandatory log System log to move up and down through log (down moves back in time, up moves forward again), to show ... - Page 21 Premier Elite Series Quick Start Guide U Ricochet Learn Ricochet ® Learn Will go to the next available wireless zone starting at 9 or Press to search. Learning always starts from the next available zone, deleting ways starts from the highest zone learnt to the system. Use the...
-
Page 22: Summary Of Keys Used
SmartKey™. details of the LED & Aux functions. All other user programmable options can be found in INS176 Premier Elite Series Installation Manual.on the enclosed CD or Deleting a Premier Elite SmartKey™ our website Deleting the Premier Elite SmartKey™ from the user is a similar ... - Page 23 Premier Elite Series Quick Start Guide way of finding out which user a Premier Elite SmartKey™ in Once the 16 slots on a XP-W are taken up, the learn process will your hand belongs to! fail and display 'No spaces left'.
- Page 24 Texecom Limited, Bradwood Court, St. Crispin Way, Haslingden, Lancashire BB4 4PW, England. Technical Support: UK Customers Tel: 08456 300 600 (Calls charged at local rate from a BT landline. Calls from other networks may vary.) International Customers Tel: +44 1706 233875 Email: techsupport@texe.com...
