SUN2000-(30KTL-A, 33KTL, 33KTL-E001, 40KTL) User Manual Issue Date 2019-06-30 HUAWEI TECHNOLOGIES CO., LTD.
Page 2
Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS"...
About This Document About This Document Purpose This document describes the SUN2000-30KTL-A/33KTL/33KTL-E001/40KTL (SUN2000 for short) in terms of its installation, electrical connections, commissioning, maintenance, and troubleshooting. Understand the safety information and get familiar with the SUN2000 functions and features before installing and operating the SUN2000.
Operators should understand the components and functioning of a grid-tied PV power system and be familiar with relevant local standards. Read this document thoroughly before operations. Huawei shall not be liable for any consequence caused by violation of the storage, transportation, installation, and operation regulations specified in this document.

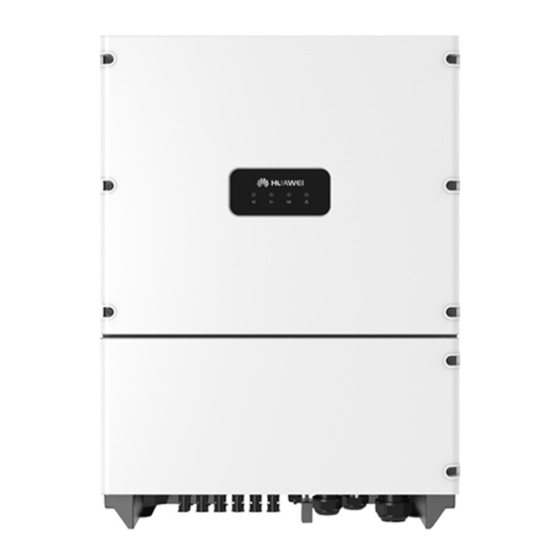

The SUN2000 is a three-phase grid-tied PV string inverter that converts the DC power generated by PV strings into AC power and feeds the power into the power grid. Models Figure 2-1 shows a model number of the SUN2000, using SUN2000-30KTL-A and SUN2000-33KTL-E001 as an example. Figure 2-1 Model number description Table 2-1 lists all models of the SUN2000 and their rated output power.
2 Overview Figure 2-4 Power grid modes supported by the SUN2000-30KTL-A and SUN2000-40KTL The SUN2000-30KTL-A and SUN2000-40KTL are mainly used for medium-voltage power grids. They deliver three-phase, three-wire output and then are fed to a medium-voltage power grid over a step-up transformer.
Page 21
SUN2000-(30KTL-A, 33KTL, 33KTL-E001, 40KTL) User Manual 2 Overview Figure 2-12 Circuit diagram for the SUN2000-30KTL-A and SUN2000-40KTL Working Modes Figure 2-13 shows the conditions for the SUN2000 to switch between working modes. Figure 2-13 Working modes Figure 2-13 describes the operations shown in Table 2-5.
(L1, L2, L3, N, and PE) outdoor copper-core cable. To connect a ground cable to the ground point on the SUN2000-30KTL-A or SUN2000-40KTL chassis shell, use a three-core (L1, L2, and L3) outdoor copper-core cable. To connect a ground cable to the ground point in the maintenance compartment, use a four-core (L1, L2, L3, and PE) outdoor copper-core cable.
Page 53
5 Electrical Connections Figure 5-8 Stripping the SUN2000-33KTL/SUN2000-33KTL-E001 AC output cable (including the ground cable) Figure 5-9 Stripping the SUN2000-30KTL-A or SUN2000-40KTL AC output cable (excluding the ground cable) Figure 5-10 Stripping the SUN2000-30KTL-A or SUN2000-40KTL AC output cable (including...
Page 54
N of the AC terminal block and tighten the screws to a torque of 4 N· m using a 10 mm socket wrench. Connect the SUN2000-30KTL-A or SUN2000-40KTL AC output wires to pins L1, L2, and L3 of the AC terminal block and tighten the screws to a torque of 8 N· m using a 13 mm socket wrench.
User Manual 5 Electrical Connections Figure 5-14 Connecting the SUN2000-30KTL-A or SUN2000-40KTL AC output cable (including the ground cable) Step 8 Use a torque wrench with an open end of 52 mm to tighten the locking cap to a torque of 7.5 N·...
Page 102
230 V/400 V 30 kW Custom (60 Hz) Reserved 230 V/400 V 30 kW Table A-2 lists the grid codes that the SUN2000-30KTL-A/SUN2000-40KTL supports. Table A-2 Grid codes (for the SUN2000-30KTL-A/SUN2000-40KTL) Grid Code Description Rated Power Maximum Maximum Grid Voltage...
