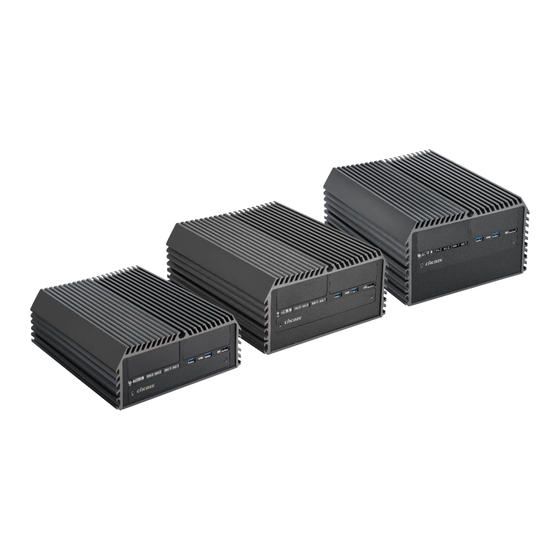

Page 1 Rugged Embedded Computer Generation Intel® Core™ Series Processors High Performance, Expandable and Modular Rugged Embedded Computer DS-1200 Series CN-TB-QP22-44_V1.0...
Page 2: Table Of Contents
Contents | User’s Manual DS-1200 Series Rugged Embedded Computer Preface Revision …………………………………………….……..……………….……….. 04 Copyright Notice …………………………………………………………………… 04 Acknowledgement …………………………………………….………....04 Disclaimer ………………………………………………………….……………….. 04 Declaration of Conformity ……………………………………….………………… 05 Product Warranty Statement ……………………………………….…………….. 06 Technical Support and Assistance ………………………………….……………. 07 Conventions Used in this Manual …………………………………….………….. 07 Safety Precaution …..…………………………………….…………….…………..
Page 3 | User’s Manual DS-1200 Series Rugged Embedded Computer Chapter 4 BIOS Setup 4.1 BIOS Introduction …….……….……….…….…….…..….…………... 73 4.2 Main Setup ……..……….…………….…….…..….………………..74 4.3 Advanced Setup ……………………….……….……………………….. 75 4.3.1 CPU Configuration ..……………………….……..…………..75 4.3.2 SATA Configuration ……………...…….………………………... 76 4.3.3 PCH-FW Configuration …..……..……………………………..78 4.3.4 Trusted Computing ….…….……..……………..……………..
Page 4: Revision
2018/11/20 Copyright Notice © 2016 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd.
Page 5: Declaration Of Conformity
| User’s Manual DS-1200 Series Rugged Embedded Computer Declaration of Conformity This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 6: Product Warranty Statement
(such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.
Page 7: Technical Support And Assistance
| User’s Manual DS-1200 Series Rugged Embedded Computer Technical Support and Assistance 1. Visit the Cincoze website at www.cincoze.com/warranty.php where you can find the latest information about the product. 2. Contact your distributor or our technical support team or sales representative for technical support if you need additional assistance.
Page 8: Safety Precaution
| User’s Manual DS-1200 Series Rugged Embedded Computer Safety Precautions Before installing and using this device, please note the following precautions: 1. Read these safety instructions carefully. 2. Keep this User’s Manual for future reference. 3. Disconnected this equipment from any AC outlet before cleaning. 4.
Page 9: Package Contents
8th Generation Intel® Core™ Series Processors, High Performance, DS-1201-R10 Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slots 8th Generation Intel® Core™ Series Processors, High Performance, DS-1202-R10 Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slots CN-TB-QP22-44_V1.0...
Page 10: Optional Modules & Accessories
| User’s Manual DS-1200 Series Rugged Embedded Computer Optional Modules & Accessories Model No. Description CFM-PoE03 CFM Module with PoE Control Function, Individual Port 25.5W CFM Module with Power Ignition Sensing Function, 12V/24V CFM-IGN101 Selectable for DS-1200/ DS-1100/ P1101 Series CMI Module with 4x Intel I210-AT GbE LAN, RJ45 Port / 1x Universal CMI-LAN01/UB1012 Bracket with 4x RJ45 Cutout for DS-1200 Series...
Page 11 | User’s Manual DS-1200 Series Rugged Embedded Computer Model No. Description Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm GST220A24-CIN Pitch, with TUBES, level VI RC-E8E8-01 Riser Card with 2x PCIex8 Slots RC-E16E1-01 Riser Card with 1x PCIex16 and 1x PCIex1 Slots RC-E16PI-01 Riser Card with 1x PCIex16 and 1x PCI Slots RC-PIPI-01...
Page 12: Chapter 1 Product Introductions
Chapter 1 Product Introductions...
Page 13: Overview
DVI-I, 2x DisplayPort, and 1x M.2 Key M 2280 socket for ultra-fast data transfer speed. Based on Cincoze’ innovative CMI & CFM Technology, it allows users to expand I/O and functionalities through ready-to-use modules, such as GbE/PoE ports, serial ports, optical isolated digital I/O and power ignition function.
Page 14: Product Pictures
| User’s Manual DS-1200 Series Rugged Embedded Computer 1.3 Product Pictures Rear Front DS-1200 DS-1201 DS-1202 1.4 Key Features • Supports 8th Gen Intel® Core™ / Pentium® / Celeron® Hexa Cores 35W/65W LGA 1151 Processors • 2x DDR4 SO-DIMM Socket, Supports Up to 2666MHz, 32GB •...
Page 15: Hardware Specification
| User’s Manual DS-1200 Series Rugged Embedded Computer 1.5 Hardware Specification Processor Expansion • Core™ i: • 3x Full-size Mini-PCIe Socket Intel® Core™ i7-8700 Hexa Core 12M Cache, up to 4.6 GHz, TDP 65W • 2x SIM Socket Intel® Core™ i5-8500 Hexa Core 9M Cache, up to 4.1 GHz, TDP 65W •...
Page 16: System I/O
| User’s Manual DS-1200 Series Rugged Embedded Computer 1.6 System I/O 1.6.1 Front ATX power on/off switch Press to power-on or power-off the system Ethernet LED Indicates the status of the LAN ports AT/ATX Mode Select Switch Used to select AT or ATX power mode USB 3.1 Port Used to connect USB 3.1/3.0/2.0/1.1 device Power LED...
Page 17: Rear
| User’s Manual DS-1200 Series Rugged Embedded Computer DS-1202 1.6.2 Rear DC IN Terminal Block Antenna Hole Used to plug a DC power input with terminal Used to install an antenna jack block COM Port External Fan Terminal Block COM 1 ~ COM 2 support RS232/422/485 Used to plug a external fan with terminal block serial device DVI-I Port...
Page 18 | User’s Manual DS-1200 Series Rugged Embedded Computer DS-1200 DS-1201 DS-1202 CN-TB-QP22-44_V1.0...
Page 19: Mechanical Dimension
| User’s Manual DS-1200 Series Rugged Embedded Computer 1.7 Mechanical Dimension DS-1200 Unit: mm DS-1201 Unit: mm CN-TB-QP22-44_V1.0...
Page 20 | User’s Manual DS-1200 Series Rugged Embedded Computer DS-1202 Unit: mm CN-TB-QP22-44_V1.0...
Page 21: Chapter 2 Pin Definitions And Settings
Chapter 2 Pin Definitions and Settings...
Page 22: Location Of Connectors And Switches
| User’s Manual DS-1200 Series Rugged Embedded Computer 2.1 Location of the Connectors and Switches 2.1.1 Top View CN-TB-QP22-44_V1.0...
Page 23: Bottom View
| User’s Manual DS-1200 Series Rugged Embedded Computer 2.1.2 Bottom View CN-TB-QP22-44_V1.0...
Page 24: Connector / Switch Definition
| User’s Manual DS-1200 Series Rugged Embedded Computer 2.2 Connector / Switch Definition List of Connector / Switch Connector Location Definition RTC / SATA DOM / COM1 / COM2 Power Select BIOS SPI interface (Optional) RTC Battery board to board connector AT_ATX1 AT / ATX Power Mode Switch Debug1...
Page 25: Definition Of Switches
| User’s Manual DS-1200 Series Rugged Embedded Computer 2.3 Definition of Switches AT_ATX1: AT / ATX Power Mode Switch Definition 1-2 (Right) ATX Power Mode (Default) 2-3 (Left) AT Power Mode SW1 Pin Defined: RTC / SATA DOM / COM1 / COM2 Power Select Super CAP Function Setting: Pin Define SW1 Switch Switch mode Function...
Page 26: Definition Of Connectors
| User’s Manual DS-1200 Series Rugged Embedded Computer 2.4 Definition of Connectors CN5 : Mini PCI-Express Socket (Support mSATA and SIM Card to Link feature) Definition Definition Definition WAKE# SIM_DATA2 RESERVED 3.3V 3.3V USB_D+ RESERVED PERST# PERN/SATARP 3.3V 1.5V 3.3V UIM_RST2 PERP/SATARN SIM_PWR1...
Page 27 | User’s Manual DS-1200 Series Rugged Embedded Computer CN4 : Mini PCI-Express Socket (Support mSATA feature) Definition Definition Definition WAKE# 3.3V 3.3V USB_D+ 3.3V PERST# PERN/SATARXP 3.3V 1.5V 3.3V PERPSATARXN +1.5V SMB_CLK +1.5V PETN/SATATXN SMB_DATA PETP/SATATXP +3.3V USB_D- CN-TB-QP22-44_V1.0...
Page 28 | User’s Manual DS-1200 Series Rugged Embedded Computer CN3 : Mini PCI-Express Socket (Support mSATA feature) Definition Definition Definition WAKE# 3.3V 3.3V USB_D+ 3.3V PERST# PERN/SATARP 3.3V 1.5V +3.3VAUX CLKREQ# PERP/SATARN +1.5V REFCLK- SMB_CLK +1.5V REFCLK+ PETN/SATATN SMB_DATA PETP/SATATP +3.3V USB_D- CN-TB-QP22-44_V1.0...
Page 29 | User’s Manual DS-1200 Series Rugged Embedded Computer CN8 : M.2 Socket Socket (Support M.2 PCIE / SATA SSD feature) Definition Definition Definition CFG3 REFCLKN +3.3V PEWAKE# PERN1 REFCLKP +3.3V PERN3 PERP1 PERP3 PETN1 PETN3 PETP1 +3.3V DEVSLP PETP3 +3.3V SMB_CLK PERN0/SATARP0 +3.3V...
Page 30 | User’s Manual DS-1200 Series Rugged Embedded Computer SATA3 : SATA Connector (SATA DOM) Definition Definition RX2- TX2+ RX2+ TX2- NC/+5V POWER1, POWER2, POWER3, POWER4: Power Connector Connector Type: 1X4-pin Wafer, 2.54mm pitch Definition +12V CN-TB-QP22-44_V1.0...
Page 31 | User’s Manual DS-1200 Series Rugged Embedded Computer CLR_CMOS1 : Clear BIOS Switch Definition 1-2 (Left) Normal Status (Default) 2-3 (Right) Clear BIOS PWR_SW1 : Power and Thermal LED Button Definition Green Blue Thermal LED_PH : TEMP / HDD / GPIO LED Status LED PH1 TEMP LED HDD LED...
Page 32 | User’s Manual DS-1200 Series Rugged Embedded Computer DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Ignition (IGN) 1 2 3 FAN1: External PWM Fan Connector Connector Type: Terminal Block 1X4 4-pin, 3.5mm pitch Definition +12V SENSE...
Page 33 | User’s Manual DS-1200 Series Rugged Embedded Computer COM1_2_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub COM1 / COM2 RS232 RS422 / 485 RS485 DB9 Pin Definition Full Duplex Half Duplex Definition Definition DATA- DATA+ CN-TB-QP22-44_V1.0...
Page 34: Chapter 3 System Setup
Chapter 3 System Setup...
Page 35: Disassembling The System For Installation
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.1 Disassembling the System for Installation In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 1. Turn over the unit to have the bottom side face up, unscrew the 6 screws of bottom cover and place them aside for later use.
Page 36 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Unscrew the 2 screws at rear panel as marked on photo and place them aside for later use. 4. Loosen the 4 screws. Pull out 4 latches as marked on photo. CN-TB-QP22-44_V1.0...
Page 37 | User’s Manual DS-1200 Series Rugged Embedded Computer 5. Lift up the unit vertically by holding the front and rear panel. 6. Turn over the body of the unit and place it gently. CN-TB-QP22-44_V1.0...
Page 38: Installing The Cpu
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.2 Installing the CPU 1. Locate the CPU socket , remove the protection cover on it. 2. Press the CPU socket lever and pull it aside away from the socket to unlock it. Pull back the lever to open the socket.
Page 39 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Align the notches on CPU with the alignment post on socket. 4. The notches of socket provide the space for fingers while lowering the CPU, hold the CPU by the edges toward the notches and insert the CPU gently. CN-TB-QP22-44_V1.0...
Page 40 | User’s Manual DS-1200 Series Rugged Embedded Computer 5. Place the thermal pad on the CPU heat spreader. Press down the socket lever to lock the CPU. Thermal pad 6. Align mounting holes of heat sink with the nut studs and fasten the heat sink with provided 4 screws.
Page 41 | User’s Manual DS-1200 Series Rugged Embedded Computer 7. Place thermal pad on the top of CPU heatsink in order to provide a seamless contact with the body of chassis to create a efficient heat dissipation. Thermal pad CN-TB-QP22-44_V1.0...
Page 42: Installing A Mini-Pcie / Msata Card On Top Side
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.3 Installing a Mini-PCIe / mSATA Card on Top Side (Applicable for full or half size card) 1. Locate the Mini PCIe slot on top side of system. 2. Use provided two screws fasten the half size module and adapter bracket together as shown in Fig (a) below.
Page 43 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Tilt the Mini PCIe module at a 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45° 4. Press down the module and fasten two screws to secure the module. CN-TB-QP22-44_V1.0...
Page 44: Installing Antennas
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.4 Installing Antennas Please installing a Mini PCIe Wireless Lan Card on top side before you put on washer and fasten the nut with antenna jack. 1. Remove the antenna hole covers at rear panel. 2.
Page 45 | User’s Manual DS-1200 Series Rugged Embedded Computer 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at another end of cable onto the module. CN-TB-QP22-44_V1.0...
Page 46: Installing A Sata Hard Drive On Top Side
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.5 Installing a SATA Hard Drive on Top Side 1. Unscrew the 3 screws on HDD bracket and remove the bracket. 2. Make the PCB side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together.
Page 47 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Turn over the HDD bracket. Connect the HDD bracket to the SATA connector and fasten the 3 screws . CN-TB-QP22-44_V1.0...
Page 48: Installing A Mini-Pcie / Msata Card On Bottom Side
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.6 Installing a Mini-PCIe / mSATA Card on Bottom Side (Applicable for full or half size card) 1. Turn over the body of the unit. Locate Mini-PCIe (mSATA) slots at the bottom. 2.
Page 49 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Press down the module and use previous two screws to fix the module. CN-TB-QP22-44_V1.0...
Page 50: Installing A M.2 Card
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.7 Installing a M.2 Card 1. Turn over the body of the unit. Unscrews the 2 screws and remove the bracket. 2. Locate M.2 slots at the bottom. CN-TB-QP22-44_V1.0...
Page 51 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Tilt the Mini-PCIe module at a 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 4. Press down the module and use previous one screw to fix the module. CN-TB-QP22-44_V1.0...
Page 52: Installing So-Dimm Memory
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.8 Installing SO-DIMM Memory 1. Locate the SO-DIMM sockets at the bottom side of system. Unscrews the 4 screws and remove the bracket. 2. Locate two SO-DIMM sockets at the bottom. CN-TB-QP22-44_V1.0...
Page 53 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Tilt the SO-DIMM module at a 45 degree angle and insert it to SO-DIMM socket until the gold-pated connector of module contacted firmly with the socket. 45° 45° Upper socket Lower socket 4.
Page 54 | User’s Manual DS-1200 Series Rugged Embedded Computer 5. Put the cover back and fix the cover with 4 screws. CN-TB-QP22-44_V1.0...
Page 55: Installing A Pci / Pcie Add-On Card
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.9 Installing a PCI / PCIe Add-on Card (For DS-1201 and DS-1202 only) The applicable riser cards for DS-1200 series are listed in the following table. Model No. Description Compatible Model RC-E16-01 Riser Card 1 x PCIex16 DS-1201 RC-PI-01...
Page 56 | User’s Manual DS-1200 Series Rugged Embedded Computer 1. Unscrew the 4 screws to remove the extension bracket. 2. Remove the extension bracket from the system. CN-TB-QP22-44_V1.0...
Page 57 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Assemble the riser card with extension bracket together and fasten with the 4 screws. Extension Bracket 4. (1) Loosen the screw to remove I/O bracket. (2) Loosen the 2 screws halfway to allow the card retainer to be adjustable.
Page 58 | User’s Manual DS-1200 Series Rugged Embedded Computer 5. (1) Insert a PCI(e) add-on card to the slot. (2) Fasten the screw to secure it (3) Push the card retainer forward to against the edge of the add-on card. (4) Tighten the screw to fix the card retainer.
Page 59 | User’s Manual DS-1200 Series Rugged Embedded Computer 7. Install the module assembled in step 4 into the riser card slot, and fasten the 4 screws to secure it. CN-TB-QP22-44_V1.0...
Page 60: Assembling The System
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.10 Assembling the System 1. Make sure the notch on chassis and the front bezel of body are at the same side. 2. Lift up the body of unit. Make sure that both front and rear panels are in the chassis groves and assemble the body on to chassis firmly.
Page 61 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Push into the 4 latches as indicated and fasten the 4 screws. 4. Fasten the 2 screws at rear panel. CN-TB-QP22-44_V1.0...
Page 62 | User’s Manual DS-1200 Series Rugged Embedded Computer 5. Be sure to align the grooves with front and ear panels. Put the cover back on and fasten the 6 screws to fix the cover. CN-TB-QP22-44_V1.0...
Page 63: Installing A Sata Hard Drive At Front Side
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.11 Installing a SATA Hard Drive at Front Side 1. Loosen the screws in order to remove the front expansion plate. 2. Locate the removable HDD bay and loosen the screw. CN-TB-QP22-44_V1.0...
Page 64 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Move the rotating arm out and pull the HDD bracket out. 4. Make the PCB side of the HDD face up, place the HDD bracket into it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together.
Page 65 | User’s Manual DS-1200 Series Rugged Embedded Computer 5. Align the HDD bracket with the entrance of HDD bay. Holding the rotating arm and insert the HDD bracket until the connector of HDD contact the SATA connector firmly. 6. Place the rotating arm back and fasten the screw. CN-TB-QP22-44_V1.0...
Page 66: Installing Sim Card
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.12 Installing SIM Card 1. Locate SIM card slots on top of HDD bay. 2. Insert the SIM card according to the icon instruction aside. SIM 1 SIM 2 CN-TB-QP22-44_V1.0...
Page 67: Installing The Cmos Battery
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.13 Installing the CMOS Battery 1. Locate the removable CMOS Battery and loosen the screw. 2. Pull out the CMOS battery bracket with assistance of a tweezer. CN-TB-QP22-44_V1.0...
Page 68 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Insert a CMOS battery in the battery slot. 4. Insert the battery bracket firmly and fasten the screw. CN-TB-QP22-44_V1.0...
Page 69: Fasten The Cover
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.14 Fasten the Cover 1. Fasten the cover by using the two screws. CN-TB-QP22-44_V1.0...
Page 70: Wall Mount Brackets
| User’s Manual DS-1200 Series Rugged Embedded Computer 3.15 Wall Mount Brackets DS-1200 series offers wall mount that customers can install system on the wall in convenient and economical ways. 1. The mounting holes are at the bottom of system. Use provided 8 screws to fasten the bracket with each side of system together.
Page 71 | User’s Manual DS-1200 Series Rugged Embedded Computer 2. Fasten the screws through the bracket mounting hole to mount system on the wall. CN-TB-QP22-44_V1.0...
Page 72: Chapter 4 Bios Setup
Chapter 4 BIOS Setup...
Page 73: Bios Introduction
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.1 BIOS Introduction The BIOS (Basic Input/Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.
Page 74: Main Setup
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.2 Main Setup Press <Del> key to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu.
Page 75: Advanced Setup
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.3 Advanced Setup This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.3.1 CPU Configuration CN-TB-QP22-44_V1.0...
Page 76: Sata Configuration
| User’s Manual DS-1200 Series Rugged Embedded Computer ■ Intel (VMX) Virtualization Technology [Enabled] Enables or disables Intel (VMX) Virtualization Technology. Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems.
Page 77 | User’s Manual DS-1200 Series Rugged Embedded Computer ■ Serial ATA Port 0 ❑ Port 0 [Enabled] Enables or disables SATA Port 0. ■ Serial ATA Port 1 ❑ Port 1 [Enabled] Enables or disables SATA Port 1. ■ Serial ATA Port 2 ❑...
Page 78: Pch-Fw Configuration
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.3.3 PCH-FW Configuration ■ Firmware Update Configuration Configure Management Engine Parameters. ■ Me FW Image Re-Flash Enables or disables ME firmware Image Re-Flash function. CN-TB-QP22-44_V1.0...
Page 79: Trusted Computing
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.3.4 Trusted Computing ■ Security Device Support [Enabled] Enables or disables BIOS support for security device. ■ SHA-1 PCR Bank [Enabled] Enables or disables SHA-1 PCR (Platform Configuration Register) Bank. ■ SHA256 PCR Bank [Enabled] Enables or disables SHA256 PCR (Platform Configuration Register) Bank.
Page 80: Acpi Setting
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.3.5 ACPI Settings ■ Enable Hibernation [Enabled] Enables or disables system ability to hibernate state (OS/S4 state). This option may not be effective with some OS. ■ ACPI Sleep State [S3 (Suspend to RAM)] Allows users to select the highest Advanced Configuration Power Interface®...
Page 81: F81866 Super Io Configuration
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.3.6 F81866 Super IO Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal settings for the Super IO Device ■ Serial Port 1~6 Configuration. CN-TB-QP22-44_V1.0...
Page 82 | User’s Manual DS-1200 Series Rugged Embedded Computer ❑ Serial Port [Enabled] Enables or disables serial port. ❑ Change Settings [Auto] Allows you to change the IO Address & IRQ settings of the specified serial port. ❑ Onboard Serial Port 1~6 Mode [RS232] Allows you to select Serial Port Mode.
Page 83: Hardware Monitor
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.3.7 Hardware Monitor This screen displays the current status of all monitored hardware devices/components such as voltages, temperatures and all fans’ speeds. ■ External Smart Fan Function [Enabled] Enables or disables external smart fan function. ■...
Page 84: S5 Rtc Wake Settings
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.3.8 S5 RTC Wake Settings ■ Wake system from S5 [Disabled] Enables or disables wake system from S5 (soft-off state). [Disabled]: Disables wake system from S5. [Fixed Time]: Sets a fixed time (HH:MM:SS) to wake system from S5. [Dynamic Time]: Sets a increase minute(s) from current time to wake system from CN-TB-QP22-44_V1.0...
Page 85: Serial Port Console Redirection
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.3.9 Serial Port Console Redirection ■ Console Redirection Allow users to enable or disable COM0, COM1, COM2, COM3, COM4, COM5 console redirection function. COM0 = Serial Port 1 COM1 = Serial Port 2 COM2 = Serial Port 3 COM3 = Serial Port 4 COM4 = Serial Port 5...
Page 86: Usb Configuration
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.3.10 USB Configuration ■ Legacy USB Support [Enabled] This item allows you to enable or disable legacy USB support. When set to [Auto], legacy USB support will be disabled automatically if no USB devices are connected.
Page 87: Network Stack Configuration
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.3.11 Network Stack Configuration ■ Network Stack [Disabled] Enables or disables UEFI Network Stack. 4.3.12 CSM Configuration This option controls legacy/UEFI ROMs priority. CN-TB-QP22-44_V1.0...
Page 88 | User’s Manual DS-1200 Series Rugged Embedded Computer ■ Boot option filter [UEFI and Legacy] Allows you to select which type of operating system to boot. [UEFI and Legacy]: Allows booting from operating systems that support legacy option ROM or UEFI option ROM. [Legacy only]: Allows booting from operating systems that only support legacy option ROM.
Page 89: Nvme Configuration
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.3.13 NVMe Configuration This screen displays the current NVMe device information. CN-TB-QP22-44_V1.0...
Page 90: Chipset Setup
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration CN-TB-QP22-44_V1.0...
Page 91 | User’s Manual DS-1200 Series Rugged Embedded Computer ■ Memory Configuration This item displays detailed memory configuration in the system. ❑ Max TOLUD [Dynamic] This feature sets the maximum TOLUD (Top of Low Usable DRAM) value, which specifies the TOLUD memory space to be used by internal graphics devices, GTT Stolen Memory, and TSEG, respectively, if these devices are enabled.
Page 92: Pch-Io Configuration
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.4.2 PCH-IO Configuration ■ PCI Express Configuration CN-TB-QP22-44_V1.0...
Page 93 | User’s Manual DS-1200 Series Rugged Embedded Computer PCI Express Root Port (PCIe x1) ❑ PCI Express Root Port [Enabled] Enables or disables PCI Express Root Port. ❑ PCIe Speed [Auto] Allows you to select PCI Express port speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3] PCI Express Root Port (mPCIe CN3) ❑...
Page 94 | User’s Manual DS-1200 Series Rugged Embedded Computer ■ CN3 mSATA Function Switch [Mini-PCIe] Allows you to change Mini PCIe1 (CN3) as [Mini-PCIe] or [mSATA]. ■ CN3 USB3 Function Switch [Disabled] Enables or disables CN3 USB3 Controller. ■ CN4 mSATA Function Switch [Mini-PCIe] Allows you to change Mini PCIe1 (CN4) as [Mini-PCIe] or [mSATA].
Page 95: Security Setup
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.5 Security Setup This section allows you to configure BIOS security settings. ■ Administrator Password Allows you to set Administrator Password to control access to the BIOS Setup utility. ■ User Password Allows you to set User Password to control access to the system at boot and to the BIOS Setup utility.
Page 96: Boot Setup
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.6 Boot Setup This section allows you to configure Boot settings. ■ Setup Prompt Timeout [1] Use this item to set number of seconds (1..65535) to wait for setup activation key. ■ Bootup NumLock State Allows you to set NumLock key to [On] or [Off] state when system boots up.
Page 97: Save & Exit
| User’s Manual DS-1200 Series Rugged Embedded Computer 4.7 Save & Exit ■ Save Changes and Exit This item allows you to exit the system after saving changes. ■ Discard Changes and Exit This item allows you to reset the system setup without saving any changes. ■...
Page 98: Chapter 5 Product Application
Chapter 5 Product Application (For DIO only)
Page 99: Digital I/O (Dio) Application
| User’s Manual DS-1200 Series Rugged Embedded Computer This chapter describes the DIO applications. 5.1 Digital I/O (DIO) Application This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O (DIO) Programming Guide 5.1.1.1 Pins for Digital I/O 1~8 Item...
Page 100 | User’s Manual DS-1200 Series Rugged Embedded Computer 5.1.1.3 Programming Guide To program the F81866A configuration registers, the following configuration procedures must be followed in sequence: (1) Enter the Extended Function Mode (2) Configure the configuration registers (3) Exit the Extended Function Mode The configuration register is used to control the behavior of the corresponding devices.
Page 101 | User’s Manual DS-1200 Series Rugged Embedded Computer CN-TB-QP22-44_V1.0...
Page 102 | User’s Manual DS-1200 Series Rugged Embedded Computer CN-TB-QP22-44_V1.0...
Page 103 | User’s Manual DS-1200 Series Rugged Embedded Computer CN-TB-QP22-44_V1.0...
Page 104 | User’s Manual DS-1200 Series Rugged Embedded Computer 5.1.1.5 Sample Code in C Language 5.1.1.5.1 Control of GP70 to GP77 (DI1 ~ DI8) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to entering Extended mode <Select Logic Device>...
Page 105 | User’s Manual DS-1200 Series Rugged Embedded Computer 5.1.1.5.3 Control of GP70 to GP77 & GP30 to GP37 (DI1 ~ DI16) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to entering Extended mode <Select Logic Device>...
Page 106 // Select configuration register 60h (High Byte address) WriteByte(DataPort, ( 0x0A)) WriteByte(AddrPort, 0x61) // Select configuration register 61h (Low Byte address) WriteByte(DataPort, ( 0x00)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Cincoze default DIO Port base address is set to 0x0A00h CN-TB-QP22-44_V1.0...
Page 107 | User’s Manual DS-1200 Series Rugged Embedded Computer 5.1.1.5 DATA Bit Table (DIO) 7 6 5 4 3 2 1 0 = DI1 0 0 0 0 0 0 0 1 Value (Base address + 3) (0xA03) 7 6 5 4 3 2 1 0 = DI2 0 0 0 0 0 0 1 0 Value...
Page 108 | User’s Manual DS-1200 Series Rugged Embedded Computer 7 6 5 4 3 2 1 0 = DO1 0 0 0 0 0 0 0 1 Value (Base address + 2) (0xA02) 7 6 5 4 3 2 1 0 = DO2 0 0 0 0 0 0 1 0 Value...
Page 109 | User’s Manual DS-1200 Series Rugged Embedded Computer 7 6 5 4 3 2 1 0 = DI9 0 0 0 0 0 0 0 1 Value (Base address +9) (0xA09) 7 6 5 4 3 2 1 0 = DI10 0 0 0 0 0 0 1 0 Value (Base address +9) (0xA09)
Page 110 | User’s Manual DS-1200 Series Rugged Embedded Computer 7 6 5 4 3 2 1 0 = DO9 0 0 0 0 0 0 0 1 Value (Base address +10) (0xA10) 7 6 5 4 3 2 1 0 = DO10 0 0 0 0 0 0 1 0 Value (Base address +10) (0xA10)
Page 111 | User’s Manual DS-1200 Series Rugged Embedded Computer 5.1.1.6 DIO I/O Port Address (Default Address 0xA00) Pin Definition Data Bits Digital Input I/O Port Address 0xA03 Pin Definition Data Bits Digital Output I/O Port Address 0xA02 Pin Definition DI16 DI15 DI14 DI13 DI12...
Page 112: Digital I/O (Dio) Hardware Specification
| User’s Manual DS-1200 Series Rugged Embedded Computer 5.2 Digital I/O (DIO) Hardware Specification • XCOM+ / 2XCOM+ : Isolated power in V+ • XCOM- / 2XCOM- : Isolated power in V- • Isolated power in DC voltage : 9~30V •...
Page 113: Digital I/O Dio Connector Definitions
| User’s Manual DS-1200 Series Rugged Embedded Computer 5.2.1 Digital I/O DIO Connector Definitions DIO1: Digital Input / Output Connector Connector Type: Terminal Block 2X5 10-pin, 3.5mm pitch Definition Definition 11 12 13 14 15 XCOM+ XCOM- Definition Definition 16 17 18 19 20 9 10 2XCOM+ 2XCOM-...
Page 114 | User’s Manual DS-1200 Series Rugged Embedded Computer DIO2: Digital Input / Output Connector Connector Type: Terminal Block 2X5 10-pin, 3.5mm pitch Definition Definition 11 12 13 14 15 (DI9) (DO9) (DI10) (DO10) (DI11) (DO11) (DI12) (DO12) XCOM+ XCOM- Definition Definition 16 17 18 19 20 (DI13)
Page 115: Chapter 6 Optional Module Pin Definitions And Settings
Chapter 6 Optional Module Pin Definitions and Settings...
Page 116: Cmi-Com Module Connector Definition And Settings
| User’s Manual DS-1200 Series Rugged Embedded Computer and Settings 6.1 CMI-COM Module Connector Definition Model No. Description CMI Module with 4x RS232/422/485 Serial Ports, 1x Universal Bracket CMI-COM02/UB1004 with 4x DB9 Cutout for DS-1200 Series CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, CMI-ICOM01/UB1004 1x Universal Bracket with 4x DB9 Cutout for DS-1200 Series COM3_4_1 / COM5_6_1 : RS232 / RS422 / RS485 Connector...
Page 117 | User’s Manual DS-1200 Series Rugged Embedded Computer COM3 / 4 / 5 / 6 Voltage Function Setting : Pin Define SW1 Switch Function Definition 0V(RI) ON/ON (Default) COM3 ON/OFF OFF/OFF 0V(RI) ON/ON (Default) COM4 ON/OFF OFF/OFF 0V(RI) ON/ON (Default) COM5 ON/OFF OFF/OFF...
Page 118: Cmi-M12 Module Connector Definition And Settings
| User’s Manual DS-1200 Series Rugged Embedded Computer and Settings 6.2 CMI-M12 Module Connector Definition Model No. Description CMI Module with M12 Connector, 4x Intel GbE LAN, 1x Universal CMI-M12LAN01/UB1010 Bracket with 4x M12 Cutout for DS-1200 Series CMI-M12LAN01 Connector CMI-M12 LAN Module Pin Definitions Connector Type: M12 A coded 8pin connector Definition...
Page 119: Cfm-Ign Module Connector Definition And Settings
| User’s Manual DS-1200 Series Rugged Embedded Computer and Settings 6.3 CFM-IGN Module Connector Definition Model No. Description CFM Module with Power Ignition Sensing Control Function, 12V/24V CFM-IGN101 Voltage Detection Selectable SW2: IGN Function Switch Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3...
Page 120: Installing A Low Speed Cmi Module
| User’s Manual DS-1200 Series Rugged Embedded Computer 6.4 Installing a Low Speed CMI Module The applicable low speed CMI modules for DS1200 series are listed in the following table. Model No. Description CMI Module with 4x RS232/422/485 Serial Ports, 1x Universal Bracket CMI-COM02/UB1004 with 4x DB9 Cutout for DS-1200 Series CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports,...
Page 121 | User’s Manual DS-1200 Series Rugged Embedded Computer 2. Locate the connector of CMI-module on top side of system. 3. Insert the CMI module carefully into the CMI connector on main board. Fix it with 2 screws. CN-TB-QP22-44_V1.0...
Page 122 | User’s Manual DS-1200 Series Rugged Embedded Computer 4. Fasten the 2 hex nuts from the back side of front bezel. 5. Fasten the 8 D-Sub jack screws as marked on photo. CN-TB-QP22-44_V1.0...
Page 123: Installing A High Speed Cmi Module
| User’s Manual DS-1200 Series Rugged Embedded Computer 6.5 Installing a High Speed CMI Module The applicable high speed CMI modules for DS1200 series are listed in the following table. Model No. Description CMI Module with 4x Intel I210-AT GbE LAN, RJ45 Port, 1x Universal CMI-LAN01/UB1012 Bracket with 4x RJ45 Cutout for DS-1200 Series CMI Module with M12 Connector, 4x Intel GbE LAN, 1x Universal...
Page 124 | User’s Manual DS-1200 Series Rugged Embedded Computer 2. Locate the connector of CMI module on top side of system. 3. Remove the 4 ring nuts from M12 jack before attempting to install the module. CN-TB-QP22-44_V1.0...
Page 125 | User’s Manual DS-1200 Series Rugged Embedded Computer 4. Insert the CMI module vertically into the female connector on system’s mainboard until it’s connected firmly and fasten 4 screws to fix it. 4. Attach the M12 I/O bracket. M12 I/O bracket CN-TB-QP22-44_V1.0...
Page 126 | User’s Manual DS-1200 Series Rugged Embedded Computer 5. Fasten 2 hex nuts from the back side of the bracket. 6.Fasten the 4 ring nuts onto M12 jacks. CN-TB-QP22-44_V1.0...
Page 127: Installing A Cfm-Poe Module
| User’s Manual DS-1200 Series Rugged Embedded Computer 6.6 Installing a CFM-PoE Module The applicable high speed CMI modules for DS1200 series are listed in the following table. Model No. Description CFM-PoE03 PoE Control Function Module, Power Boost 44-57V CMI-M12 PoE Module Pin Definitions Connector Type: M12 A coded 8pin connector POE type: Midspan Please note that the M12 Pin Definitions will change as the following table when the CFM- PoE module is inserted onto the CMI-M12LAN01 Module.
Page 128 | User’s Manual DS-1200 Series Rugged Embedded Computer 1. Insert the CMI module vertically into the female connector on system’s mainboard until it’s connected firmly and fasten 4 copper pillars to fix it. 2. Insert the CFM-PoE module vertically into the female connector on CMI module until it’s connected firmly.
Page 129 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Turn over the heatsink and locate the two places which were marked by red circles. 4. Please paste the 2 thermal pads onto the heatsink carefully. CN-TB-QP22-44_V1.0...
Page 130 | User’s Manual DS-1200 Series Rugged Embedded Computer 5. Please paste the 1 thermal pad onto the coil of the CFM-PoE module carefully. 6. Please paste the heatsink onto the CFM-PoE module carefully. CN-TB-QP22-44_V1.0...
Page 131 | User’s Manual DS-1200 Series Rugged Embedded Computer 7. Fasten 4 screws to fix it. 6. Please paste the thermal pad onto the heatsink carefully. CN-TB-QP22-44_V1.0...
Page 132: Installing A Cfm-Ign Power Ignition Module
| User’s Manual DS-1200 Series Rugged Embedded Computer 6.7 Installing a CFM-IGN Power Ignition Module 1. Locate power ignition connector on main board. 2. Insert the power ignition module carefully into the connector on main board. Fasten 2 screws to fix it. CN-TB-QP22-44_V1.0...
Page 133: Installing An External Fan
| User’s Manual DS-1200 Series Rugged Embedded Computer 6.8 Install an External Fan Model No. Description External Fan with 4pin Terminal Block Plug, Mounting Bracket. FAN-EX101 Support Smart Fan Function 1. Prepare an external fan. Loosen the 2 screws halfway on mounting frame before attempting to install it.
Page 134 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Move the fan to the center of chassis. Tighten the 2 screws marked on photo to secure it. 4. Connect the FAN cable to external fan power connector at rear panel. CN-TB-QP22-44_V1.0...
Page 135: Installing An Internal Fan
| User’s Manual DS-1200 Series Rugged Embedded Computer 6.9 Installing an Internal FAN (For DS-1202 only) Model No. Description FAN-UB100 Exhaling Fan with 4pin Connector, Universal Bracket FAN-UB101 Inhaling Fan with 4pin Connector, Universal Bracket 1. Unscrew 6 screws to remove 3 I/O brackets from rear panel. 2.
Page 136 | User’s Manual DS-1200 Series Rugged Embedded Computer 3. Connect the FAN power cable to the power connector on main board.as marked on photo. CN-TB-QP22-44_V1.0...
Page 137 © 2014 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.

This manual is also suitable for:

Ds-1200 series Ds-1201-r10 Ds-1200-r10

Cincoze DS-1202-R10 User Manual

Chapter 1 Product Introductions

Chapter 2 Pin Definitions and Settings

Chapter 3 System Setup

Chapter 4 BIOS Setup

Chapter 5 Product Application

Chapter 6 Optional Module Pin Definitions and Settings

Quick Links

Need help?

Questions and answers

Related Manuals for Cincoze DS-1202-R10

Summary of Contents for Cincoze DS-1202-R10

This manual is also suitable for:

Table of Contents
