- Page 1 Signature Series ® Copyright © 2007, 2009 - 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
-
Page 2: Table Of Contents
Signature Series ® Table of Contents Page Signature Features and KeyWizard Software ..................1 ® ™ Signature Components ..........................2 UL437 Mortise & Rim Cylinders ......................... 3 Bored Locks Cylinders ............................ 4 10-6300 LFIC Cylinders and 6300 Series Tools ..................5 Key Blanks ................................ -
Page 3: Signature Features And Keywizard Software
Signature® Features and KeyWizard™ Software Signature Series ® SARGENT’s KeyWizard 5.5 Software Package Tracks Multiple Key Systems Including Keys, Keyholders, Locations and Hardware Information ™ This comprehensive key management software package was developed for locksmiths and end-users to track detailed information. The program features easy to navigate, non-cluttered screens and uses a format similar to Microsoft Outlook ®... -
Page 4: Signature Components
Signature Components Signature Series ® The Signature key system consists of a 6 pin cylinder with 2 added blocking bars with shear lines (item 4) which work in conjunction with 6 factory loaded side pins. The side pins depths and locations vary and only work with a corresponding dimpled key. In addition, two “blocking pins”... -
Page 5: Ul437 Mortise & Rim Cylinders

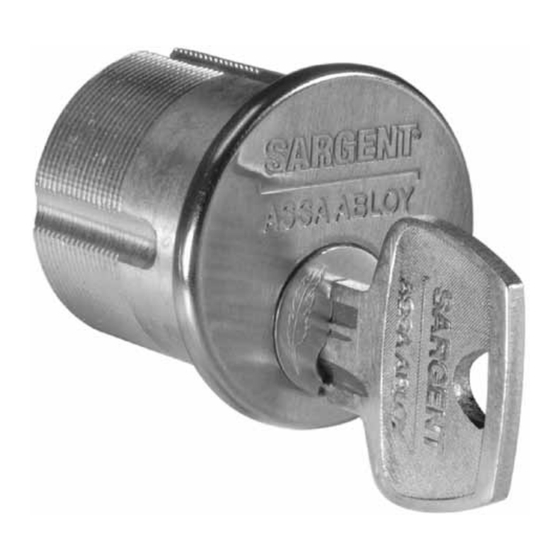

UL437 Mortise & Rim Cylinders Signature Series ® UL 437 Listed Cylinders Sargent offers the Signature Series Mortise and Rim Cylinders with the UL 437 option. UL 437 sets the standard for both drilling and picking resistances. These cylinders are manufactured to include hardened drill resistant inserts in both the plug/barrel and body along with 6 stainless spool drivers. UL 437 High Security Signature Cylinders are recommended for doors most likely to be physical assaulted, while the use of standard Signature Cylinders is more advantageous and less costly for interior doors. -
Page 6: Bored Locks Cylinders
Bored Locks Cylinders Signature Series ® Top Loading of Cylinders allows for easier field pinning (since May 2008) Body & Slide Barrel Assembly Bored Locks Functions Lockset Assembly Barrel Body & Slide Assembly #1 All except 50 function 11 Line 10-C11-1 (13-4147) 13-3851 13-3710... -
Page 7: 10-6300 Lfic Cylinders And 6300 Series Tools
10-6300 LFIC Cylinders and 6300 Series Tools Signature Series ® Signature LFIC core cylinders offer a patented cylinder with the convenience of quickly changing cores without lock disassembly. Consult individual product catalogs for availability. Top Loading of Cylinders allows for Ordering examples: easier field pinning (since May 2008) 10 Line Cylindrical - 10-63-10G05 LL x 26D x LH key set... -
Page 8: Key Blanks
Key Blanks/Cut Master Keys Signature Series ® Part Numbers Version two: The key is less SARGENT logo. All Signature key blanks are stamped at the This allows for additional space for optional factory with the Quill Logo and the individual stamping such custom or specific die stamping Signature pattern. -
Page 9: Visual Key Control
Visual Key Control Signature Series ® Visual Key Control (Stamping) To allow for easier key and cylinder identification, SARGENT offers the option for permanent stamping of keys and/or cylinder with industry standard alpha-numeric keyset symbols. Non-visual key control stamped change (day) keys include bitting numbers as standard, (Item A) unless specified in keying order lead sheet submitted with order requesting to be omitted and key set substituted. -
Page 10: Keyway Control
Keyway Control Signature Series ® Signature vs. Standard Keyway Control SARGENT Signature keys are produced with a special feature that allows them to operate Signature cylinders as well non-Signature cylinders within the same keyway family. The standard key does not contain the special feature which allows it to operate a Signature cylinder but will continue to operate non-Signature cylinders. -
Page 11: Construction Master Keying
Construction Master Keying (21- Option) Signature Series ® With construction key in cylinder The SARGENT Signature Cylinder employs what is known in the industry as the “Lost Ball” method of Construction Master Keying. Use the 21- as the option when ordering this feature. NOTE: Adding this feature to an existing SARGENT Master Key system may not be possible. -
Page 12: Registration Forms
Registration Forms Signature Series ® Signature Code Pattern Registration Form The Signature Code Registration Form must be submitted prior to any purchase orders for products. This for is available from your authorized SARGENT distributor or SARGENT key records dept. @ 1-800-727-5477 The information on this form is used by computer software to select the unique Signature code pattern for each key system... -
Page 13: How To Order/Special Features
How to Order/Special Features Signature Series ® How to Order In order to obtain a unique SARGENT Signature pattern, a pre-authorization form must be sent to SARGENT’s Key Records department in New Haven, CT. SARGENT will reserve a specific Signature pattern for the particular end user. All purchase orders received by SARGENT for Signature products must be accompanied by a letter of authorization from the end user, including his registered Signature pattern and 8 digit pin code. - Page 14 The company’s customer base includes commercial construction, institutional, and industrial markets. Copyright © 2007, 2009 - 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
