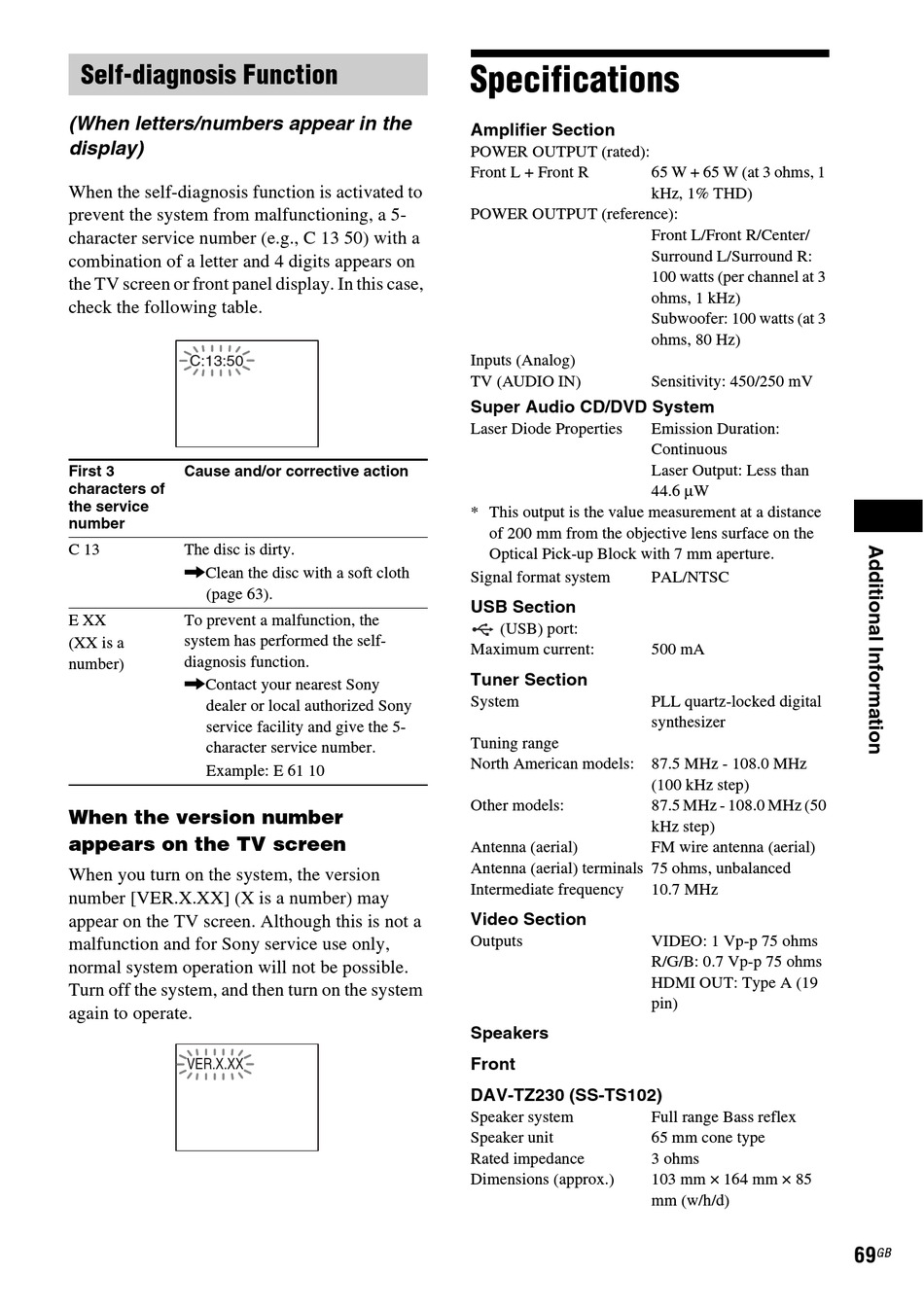

Self-diagnosis Function
(When letters/numbers appear in the
display)
When the self-diagnosis function is activated to
prevent the system from malfunctioning, a 5-
character service number (e.g., C 13 50) with a
combination of a letter and 4 digits appears on
the TV screen or front panel display. In this case,
check the following table.
C:13:50
First 3 Cause and/or corrective action
characters of
the service
number
C 13 The disc is dirty.
,Clean the disc with a soft cloth
(page 63).
E XX To prevent a malfunction, the
system has performed the self-
(XX is a
diagnosis function.
number)
,Contact your nearest Sony
dealer or local authorized Sony
service facility and give the 5-
character service number.
Example: E 61 10
When the version number
appears on the TV screen
When you turn on the system, the version
number [VER.X.XX] (X is a number) may
appear on the TV screen. Although this is not a
malfunction and for Sony service use only,
normal system operation will not be possible.
Turn off the system, and then turn on the system
again to operate.
VER.X.XX

Specifications

Amplifier Section
POWER OUTPUT (rated):
Front L + Front R
POWER OUTPUT (reference):
Inputs (Analog)
TV (AUDIO IN)
Super Audio CD/DVD System
Laser Diode Properties
* This output is the value measurement at a distance
of 200 mm from the objective lens surface on the
Optical Pick-up Block with 7 mm aperture.
Signal format system
USB Section
(USB) port:
Maximum current:
Tuner Section
System
Tuning range
North American models: 87.5 MHz - 108.0 MHz
Other models:
Antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency
Video Section
Outputs
Speakers
Front
DAV-TZ230 (SS-TS102)
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
65 W + 65 W (at 3 ohms, 1
kHz, 1% THD)
Front L/Front R/Center/
Surround L/Surround R:
100 watts (per channel at 3
ohms, 1 kHz)
Subwoofer: 100 watts (at 3
ohms, 80 Hz)
Sensitivity: 450/250 mV
Emission Duration:
Continuous
Laser Output: Less than
44.6 μW
PAL/NTSC
500 mA
PLL quartz-locked digital
synthesizer
(100 kHz step)
87.5 MHz - 108.0 MHz (50
kHz step)
FM wire antenna (aerial)
10.7 MHz
VIDEO: 1 Vp-p 75 ohms
R/G/B: 0.7 Vp-p 75 ohms
HDMI OUT: Type A (19
pin)
Full range Bass reflex
65 mm cone type
3 ohms
103 mm × 164 mm × 85
mm (w/h/d)
69
GB
