Chapter 4 Toolchest Components

In order to use the dual bus application components, they must first be added to the Proficy Machine Edition
Toolchest.

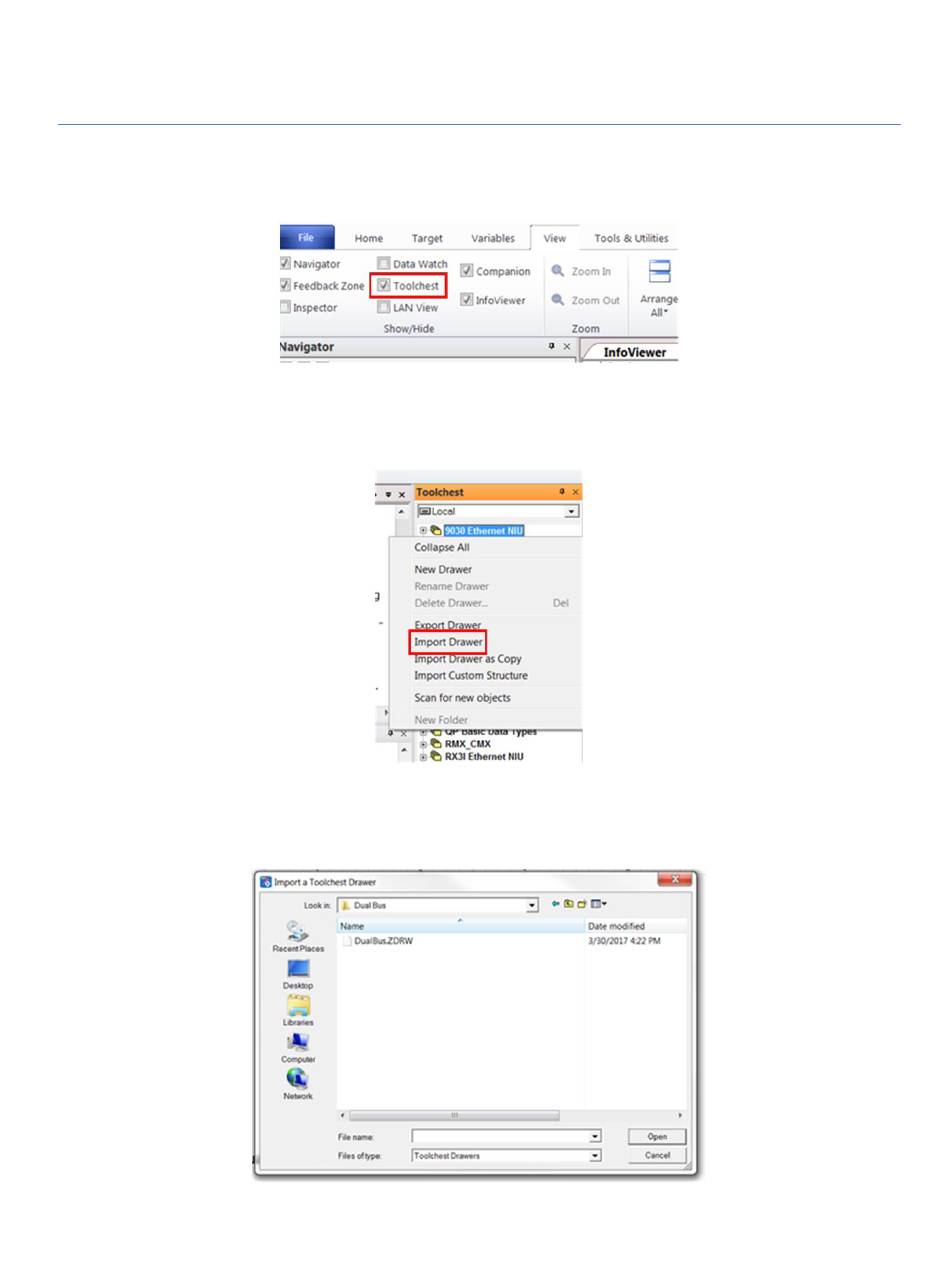

Click on the View Tab in PME. Then make certain that the Toolchest item is checked.

Figure 5: PME Toolchest Checkbox

The Toolchest will be displayed (normally docked on the right side of PME). Right click on the Toolchest to
display a popup menu that will allow you to import a Toolchest Drawer. Double click on the menu item Import
Drawer.

Figure 6: Import Toolchest Drawer Menu Item

A dialog box, similar to the one below, will be displayed. Navigate to the location containing the application
Toolchest components and then Import the Toolchest drawer for dual bus support by selecting DualBus.ZDRW
(or a designated upgrade filename). Click on the Open button.

Figure 7: Select Toolchest Drawer File to Import

GFK-2928 December 2017 11
