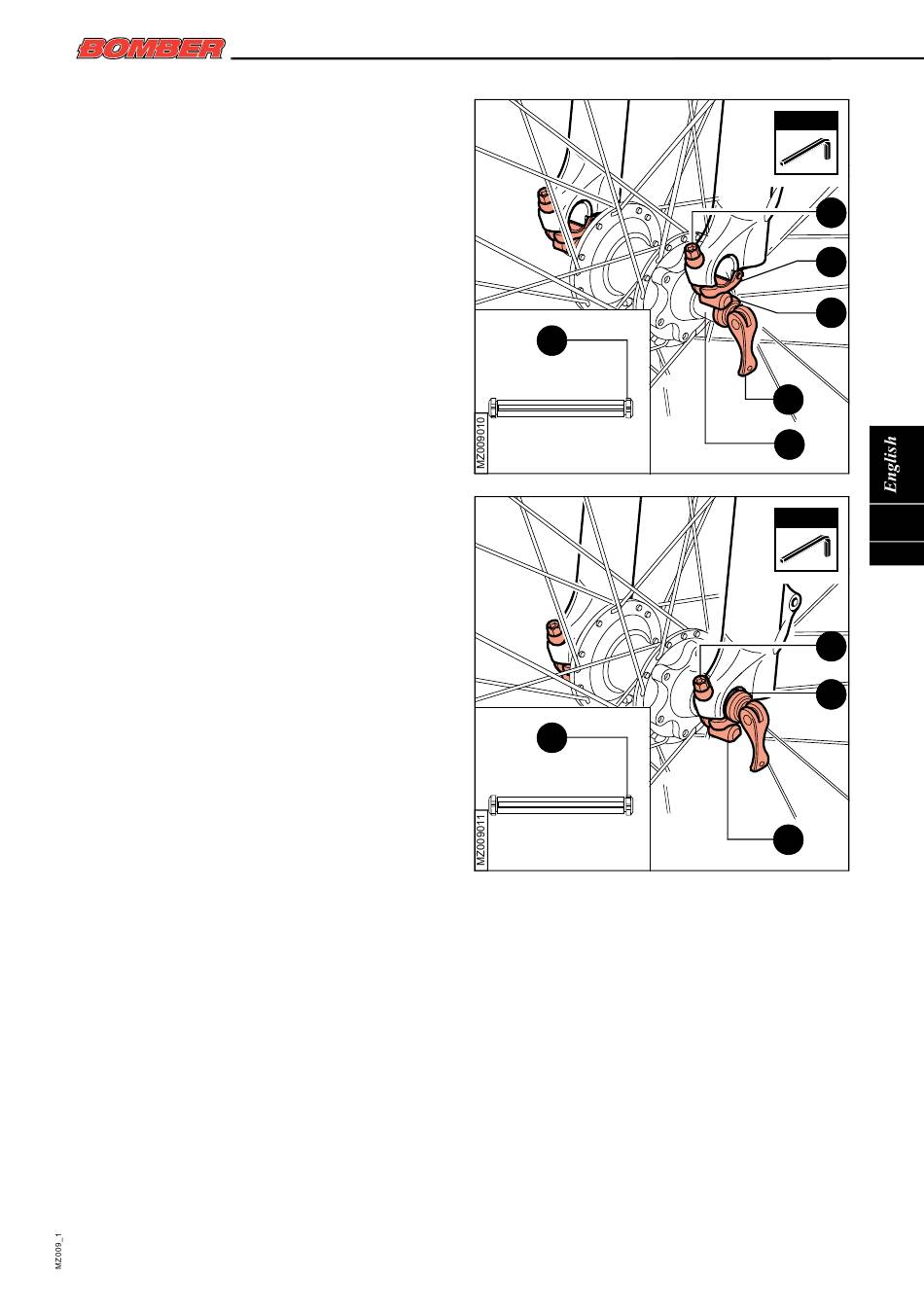

3.5 Wheel installing with a QR20 "With
Bolt" fork
For correct fork function, please follow the
instructions here below when installing the
wheel:
• Using a 6 mm Allen key unscrew both screws
(L) as much as needed to open the securing
device (M)
• For quick-release hubs, open the release
lever (B).
• For threaded cap hubs, unscrew the cap (C)
as much as needed to insert the wheel axle
through the fork wheel axle clamp.
• Insert the wheel axle (D) through the fork
wheel axle clamp.
• Make sure that the wheel axle supporting
bushings (E) are centred in the sliders' seat
• If the wheel axle is provided with quick-
release system, lock the wheel with the quick-
release lever (B); otherwise, tighten the cap
positioned on the axle side using a 6 mm
Allen key to the required tightening torque
(see Table - Tightening Torques).
• Verify the correct settling of the supporting
bushings (E)
• Check the correct fork-wheel alignment, by
fully compressing the fork a few times.
• Lift the front wheel; turn the wheel a few times
to verify the correct alignment with the disk
brake.
• Lock the wheel axle securing device (M) and
tighten both screws (L) using a 6 mm Allen
key.
C
C
Installation
6 mm
L
M
E
B
D
3
6 mm
119
L
E
M
