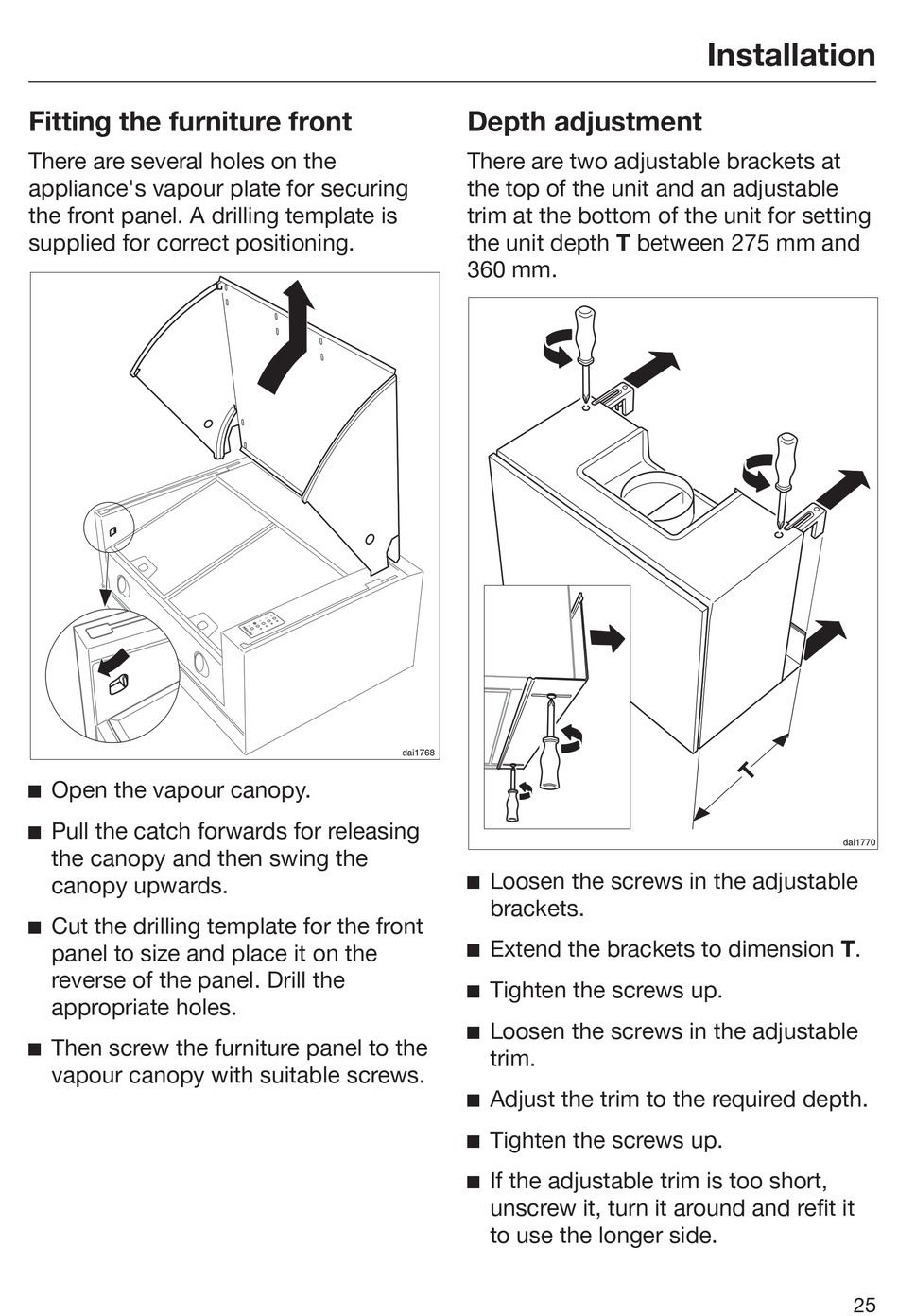

Fitting the furniture front

There are several holes on the
appliance's vapour plate for securing
the front panel. A drilling template is
supplied for correct positioning.
 Open the vapour canopy.
 Pull the catch forwards for releasing
the canopy and then swing the
canopy upwards.
 Cut the drilling template for the front
panel to size and place it on the
reverse of the panel. Drill the
appropriate holes.
 Then screw the furniture panel to the
vapour canopy with suitable screws.

Depth adjustment

There are two adjustable brackets at
the top of the unit and an adjustable
trim at the bottom of the unit for setting
the unit depth T between 275 mm and
360 mm.
 Loosen the screws in the adjustable
brackets.
 Extend the brackets to dimension T.
 Tighten the screws up.
 Loosen the screws in the adjustable
trim.
 Adjust the trim to the required depth.
 Tighten the screws up.
 If the adjustable trim is too short,
unscrew it, turn it around and refit it
to use the longer side.
