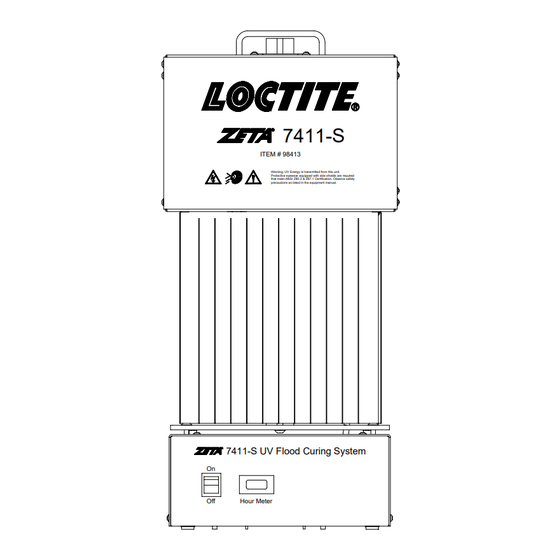

7411-S UV Flood Curing System
On
Off
Hour Meter
®
7411-S
EQUIPMENT
Operation Manual
Advertisement
Table of Contents
Related Manuals for Loctite Zeta 7411-S
Summary of Contents for Loctite Zeta 7411-S
- Page 1 Protective eyewear equipped with side shields are required that meet ANSI Z80.3 & Z87.1 Certification. Observe safety precautions as listed in the equipment manual. 7411-S UV Flood Curing System Hour Meter ® ® Loctite Zeta 7411-S UV Flood Curing System Part Number 98413...
-
Page 2: Table Of Contents
Table of Contents 1 Please Observe The Following 1.1 Emphasized Sections 1.2 For Your Safety 1.3 Items Supplied 2 Description 2.1 Operation 2.2 System Components 3 Technical Data 3.1 Specifications 4 Installation 4.1 Unpacking and Inspection 4.2 Installation and Startup 5 Operation 5.1 Controls and Operation 6 Troubleshooting... -
Page 3: Please Observe The Following
Appropriate safety precautions must be taken if the filter is removed. UV safety is the responsibility of the user, especially when operating the model ® ZETA 7411-S in a non-standard configuration. When in doubt about UV safety, consult a Loctite technical specialist at 1-800-LOCTITE (562-8483). -
Page 4: Items Supplied
The work surface is covered by a special silicone rubber mat, which resists UV deterioration and chemical attack. Over time, it may soften and need replacement. A ¼ inch phono jack is located on the rear panel of the lamp housing to allow use the Loctite® UV Intensity Monitor, (item # 891494). -
Page 5: System Components
7411-S UV Flood Curing System Hour Meter Technical Data 3.1 Specifications ® Loctite Model: ZETA 7411-S Loctite Part Number: 98413 Electrical Power Required: 120 VAC, 60 Hz single phase, 8 Amps Lamp Type: 400 Watt Metal Halide (visible and UV enhanced) Power Supply Dimensions L x W x H (inches): 11.25"... -
Page 6: Installation
Any damage should be reported immediately to the carrier. Refer to the list of supplied parts, and compare to the contents. Report any missing parts promptly ® to the Loctite customer service department at 1-800-LOCTITE (562-8483). Installation and Start-up ® ®... -
Page 7: Troubleshooting
A six foot extension cable is also available from Loctite (part # 985022). With the lamp turned off, the lamp head and base can be taken off the power supply and operated at bench level by simply removing the four screws. -
Page 8: Care And Maintenance
® ® cured. The Loctite Zeta Meter 7010 (part number 98001) can be used to monitor performance. As an alternative, regular inspection of the cured product may provide an indirect and less accurate measure of lamp function. -
Page 9: Documentation
Documentation Wiring Diagram NOTE: LINES 277, 240 AND 208 ENDS TO BE COVERED 115 V. INPUT WITH CRIMP CAPS AND TY-WRAPED TOGETHER. NOTE: USE MECHANICAL CRIMP TO HOLD WIRES TOGETHER BEFORE INSERTING AND TIGHTENING SCREW. FUSE BLACK WIRE LAMP HOUSING CHASSIS RED WIRE GROUND... -
Page 10: Warranty
NO WARRANTY IS EXTENDED TO ANY EQUIPMENT WHICH HAS BEEN ALTERED, MISUSED, NEGLECTED, OR DAMAGED BY ACCIDENT, OR IF THE SYSTEM WAS USED TO DISPENSE ANY ® LIQUID MATERIAL OTHER THAN LOCTITE PRODUCTS. EXCEPT FOR THE EXPRESS WARRANTY CONTAINED IN THIS SECTION, HENKEL MAKES NO WARRANTY OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCTS. - Page 11 Madison Heights, MI 48071 Diadema/SP, Brazil www.loctite.com Loctite is a trademark of Henkel Corporation, U.S.A. © Copyright 2004. Henkel Corporation All rights reserved. Data in this operation manual is subject to change without notice. Manual P/N: 988165, Rev B, Date: 11/2009...
