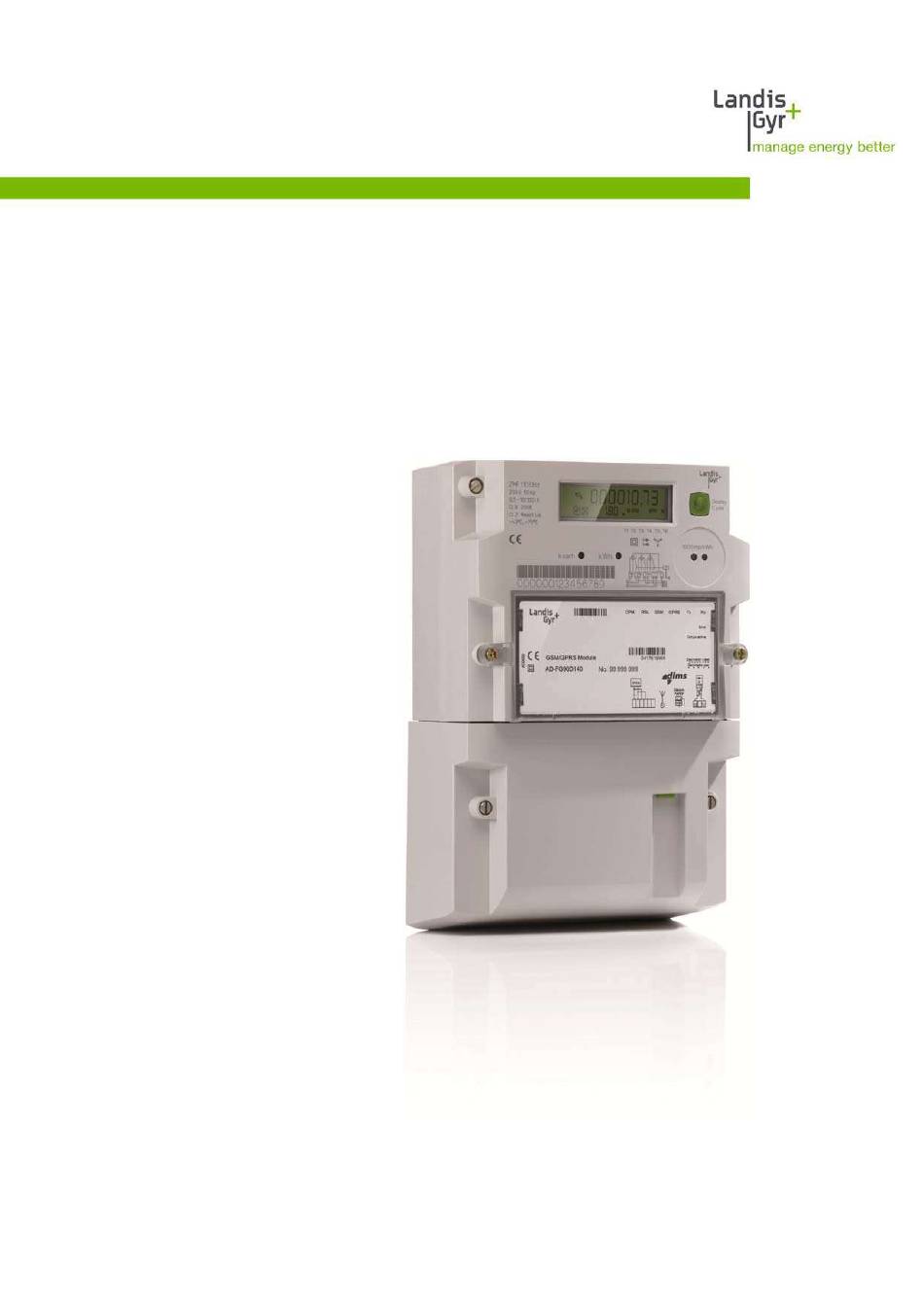

- Page 1 Electricity Meters IEC/MID Residential ZxF100Ax/Cx E350 Series 2, 3-Phase User Manual Date: 23.08.2016 File name: D000027979 E350 Series 2 ZxF100Ax Cx 3-ph User Manual en t.docx © Landis+Gyr D000027979 en t...
-
Page 2: Revision History
"useful" tool have to be used; Section 5.2.7 "Error Display" modified; Remark about module data added in section 5.2.9; Content of section 5.2.12 "Error descriptions E350 Series 1 and Series 2" moved partly into functional description and partly to section 6.2 "Error Codes": Safety information about cleaning added in section 6.1 and modified in section 7.2.;... - Page 3 Landis+Gyr makes no warranty, representation or guarantee regarding the performance, quality, durability or suitability of the products for any particular purpose. To the fullest extent permitted by law Landis+Gyr disclaims (1) any and all liability arising out of the use of the product, (2) any and all liability, including, but without limitation to, special, consequential and indirect damages and losses, and (3) any and all implied warranties, including, but without limitation to, fitness for purpose and merchantability.
-
Page 4: Table Of Contents
5.2.7 Error Display ........................38 5.2.8 Text Messages on Display ....................39 5.2.9 Meter Display List – Available Items with OBIS Codes ............40 5.2.10 Display Status Messages ....................42 © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... - Page 5 7.1.4 Connection to a Meter Testing Device ................53 7.1.5 No-Load Test ........................54 7.1.6 Starting Test ........................54 Cleaning ..........................54 Decommissioning and Disposal ....................55 Decommissioning ........................55 Disposal ..........................55 D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr...
-
Page 6: Introduction
6/56 Safety Introduction Range of validity The present manual applies to the following E350 Series 2 meter versions: Three-phase four-wire network ZMF100AC and ZMF100AB for active energy (import and export) ZMF100CC and ZMF100CB for active and reactive energy (import and... -
Page 7: Safety
and the training of personnel. Landis+Gyr AG provides training courses for this purpose on specific equipment; please contact the relevant agent, if interested. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 8: Safety Instructions
Class A product. In a domestic environment, this may then cause radio interference, in which case the user may be required to take adequate measures . © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 9: Description Of Unit
ZFF100 meters differ from ZMF meters in the type of measurement (Aron circuit for three-phase three-wire networks). Therefore, they are only equipped with 2 instead of 3 measuring elements. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 10: Field Of Application
Retroactive modification of the parameters is not possible. The parameters stored in the meter are protected against unauthorised overwriting. Details about parameter settings can be found in the functional description. © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 11: Characteristics
Installation aids (e.g. phase voltages and direction of energy) - Presence of phase voltages (voltage values are displayed) - Visual output (no-load indicator) on LCD - Display of energy direction - Power indication D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 12: Type Designation
The communication module is not part of this type designation, since it is a complete unit in itself. Users can change it without opening the calibration seal . © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 13: Measuring Principle
(rate-dependent) . The microprocessor generates pulses for the pulse output LEDs from the digital sum to the meter constant R. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 14: Signal Processing
Summation by vectors +A/–A As in Ferraris meters, the meter summates the values of the individual phases taking the sign into account. With differing signs (energy directions) © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... - Page 15 Cum sum 7 kWh 17 kWh 19 kWh Cum sum 3 kWh 3 kWh 11 kWh Fig. 1.3 Example magnitude summation active energy (left: +A, right –A) D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr...
- Page 16 For ZMF, most of the customers, use vectorial mode too. Only some customers use magnitude mode, mainly for tamper prevention . F-circuit With F-circuit (Aron connection), only the sums of +R and -R are calculated. © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual...
- Page 17 - kvarh Fig. 1.6 4-quadrant measurement (only inZxF100Cx meters) The reactive energies of the individual phases can be allocated to the 4 quadrants in the same way. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr...
-
Page 18: Instantaneous Values
0.01 kW or 0.001 kW I > 0.075 I Signed Instantaneous Reactive Power QI+QII+QIII+QIV Instantaneous Reactive Import Power +R QI+QII Instantaneous Reactive Export Power –R QIII+QIV © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 19: Anti-Tampering And Tamper Prevention
Detection of terminal cover opening Detection of DC magnetic field Sealable access lock to voltage connections Detection of supply control switch tampering (supply control switch meters only) D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 20: Supply Control Switch
For the list of functions of .MAP110, please see .MAP documentation and the E350 Series 2 Functional Description. © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 21: Mechanical Description
On the terminal cover, two sealing points for utility seals prevent unauthorised access to the phase connections and therefore help to avoid unrecorded power consumption. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 22: Faceplate
Fig. 3.3 Connection diagram ZMF100xC (left, M-Connection) and ZMF100xB (right, with supply control switch) ZFF100AC/CC, ZFF100AB/CB Fig. 3.4 Connection diagram ZFF100xC (left, Aron connection), ZFF100xB (right, with supply control switch) © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 23: Dimensions
The meter with extended terminal cover offers increased safety since the phase connecting wires are protected under the terminal cover. The suspension triangles are identical in both terminal covers. They comply with DIN standards. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... - Page 24 Terminals are available with an opening diameter of 8.5 mm and 9.5 mm. Terminals with opening diameter of 8.5 mm and 9.5 mm have the same position on the terminal block. Fig. 3.8 Terminal layout and dimensions © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual...
-
Page 25: Installation/Uninstallation
For open meter mounting insert the meter suspension eyelet – this is supplied in the terminal cover – into the corresponding opening at the rear side of the meter until the suspension eyelet engages (see Fig. 4.2). D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 26: Connecting The Meter
(e.g. buzzer) to ensure that the right consumer is connected to the meter output. Phase connections Fig. 4.3 Meter connections © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 27: Checking The Connections
Aron connected ZFF meters)? Interchanging of a phase with the neutral could destroy the meter. Mount the terminal cover after a successful check of the connections, tighten its screws and seal it. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 28: Commissioning And Functional Check
Fit a substitute meter as described in section 4.2 "Connecting the Meter" and the following sections, if necessary. © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 29: Operation
D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 30: Liquid Crystal Display (Lcd)
With the unit indications below and on the right side of the value field the following units can be displayed: V, A, kWh, kvah, kvarh, kW, kva, kvar, m MJ, GJ. The unit displayed indicates which register is being viewed. © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... - Page 31 The active no-load indication (a circle) shows that the kWh registers have entered anti-creep mode. No energy is flowing through the meter (no active energy direction indicator displayed). D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr...
- Page 32 (group C = 1) is displayed in the value field. 0.9.1 indicates that the local time is displayed in the value field. © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual...
-
Page 33: Displaying Obis Codes
Active energy export for rate 3 is indicated by 252.4 kWh. The active energy direction arrow -P, the phase voltage indications L1, L2 and L3 and the arrow symbol of the current rate are also displayed. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 34: Display Definitions
Active energy export rate 2 Manufacturer identification Line voltage L1 number Line current L3 Water consumption Total active power Heat consumption Reactive energy L1 Gas consumption k ar © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 35: Display Sequence
Value y Value x = short press of display button (< 5 s) = long press of display button (> 5 s) Fig. 5.4 Overview display sequences D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... - Page 36 Removal of the terminal cover will override all of the above and the meter will not exit service mode until the terminal cover is replaced . © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual...
- Page 37 6 digits with 1 decimal place. The leading zeros are not suppressed. Displayed value Total active energy import Total reactive energy import Display check (all segments on) Empty display (all segments off) D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr...
-
Page 38: Display Check
In the following error display the error code "00002002" is composed of the two errors "00000002" and "00002000". The error codes are described in section 6.2.2 "Error Code Descriptions". © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 39: Text Messages On Display
(there are also meter versions with a slightly different character set. E.g. the characters that cannot be shown are represented with a lower "o") . D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 40: Meter Display List - Available Items With Obis Codes
Scheme / Parameter ID Blank Display - All segs OFF All Segments On - All segs ON FLASH All Segments Flash - All segs FLASH [M26…] © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... - Page 41 Terminal cover removal counter 82.8.2 DC Field Count 82.8.3 Supply control switch tamper counter [M25…] (only in readout) C.7.0 Power Fail Count C.7.1 Phase L1 (R) Fail Count D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr...
-
Page 42: 5.2.10 Display Status Messages
Error detected (if error value FF > 0) Reverse energy detected Terminal cover removal detected Strong magnet field tamper detected Supply control switch (breaker) tamper detected © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 43: 5.2.11 Energy Efficiency Items In The Meter Display
Pulse output LEDs – one for active and one for reactive energy – are used for meter testing. They transmit visible red pulses equivalent to the D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 44: Optical Interface
Data Readout The power supplier can read the meter data, particularly the energy consumption, locally in two ways: © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 45: Iec 62056-21 Mode C
Data saved to EEPROM on power fail is corrupted Not used Valid for readout with E35C modules! For other modules, other codes may be delivered, e.g. equal to error display values . D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 46: Data Readout Procedure Via Optical Interface Or Communication Module
Code Z in the data readout acknowledge string identifies the required transmission rate for the data to follow: Code Z Transmission rate 300 bps 600 bps 1200 bps 2400 bps 4800 bps 9600 bps © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 47: Addressability Of Meter
(i.e. the meter remains signed on for the invalid password timeout period). Even if the password is corrected, the invalid password timeout has to expire before retrying is allowed. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 48: Service
Error codes are added As all errors are shown in hexadecimal code, a single error can appear in various ways depending on the presence of other errors . © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 49: Error Code Descriptions
Error Code Descriptions The following error code descriptions apply for E350 Series 2 meters. Error code descriptions for E350 Series 1 meters can be found in the functional description D000028645. The allocation of the defined errors to the individual bits of the error register... -
Page 50: Repairing Meters
Pack the meter to ensure it is not damaged during transport. Use the original packing, if available. Do not enclose any loose components. Send the meter to an authorised service centre. © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 51: Maintenance
LED, which can now be done with 0.5 kW in about 5 minutes. It is indicated by a flashing decimal point. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 52: Measuring Times
For meter testing purposes, only the rising edge is decisive. LED for reactive energy: The LED for reactive energy works similarly, but with values of 1 varh and a meter constant of 1000 imp/kvarh. © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 53: Connection To A Meter Testing Device
After testing, remove the cable (voltage-free!) from the terminal cover. The spring closes the contact and the voltage is connected again. Insert the access lock sliding piece again, if necessary, and seal it. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... -
Page 54: No-Load Test
If the meter is heavily soiled, it should be dismantled, if necessary, and sent to an authorised service centre, so that a new plastic viewing window can be fitted. © Landis+Gyr D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual... -
Page 55: Decommissioning And Disposal
Metal parts Sorted and taken to collective materials disposal point. Plastic components Sorted and taken to recycling (regranulation) plant or if no other possibility to refuse incineration. D000027979 en t – E350 Series 2, 3-Phase ZxF100Ax/Cx – User Manual © Landis+Gyr... - Page 56 Contact: Landis+Gyr AG Theilerstrasse 1 CH-6301 Zug Switzerland Phone: +41 41 935 6000 www.landisgyr.com...
