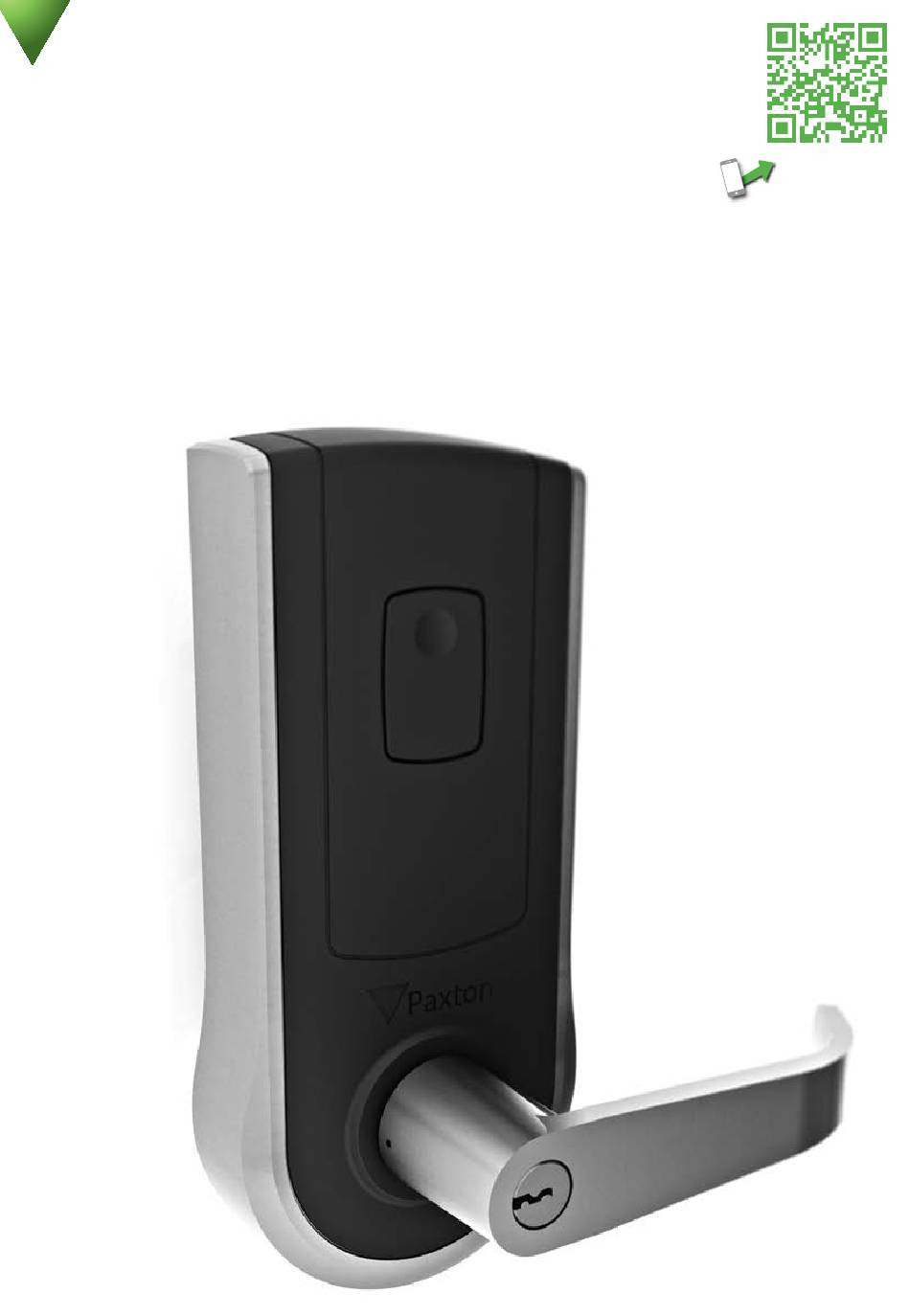

- Page 1 Paxton ins-40213-US Paxlock US...
-
Page 2: What's In The Box
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? What’s in the box 1) Front handle 12) Rear battery cover 2) Lock Cylinder * 13) Rear handle cover 3) Paxlock front housing 14) Rear Handle 4) Motor adjustment plate 15) Small mounting screws x 2 5) Motor... - Page 3 Step 1: Marking out Tape template to door, mark holes then remove template for drilling. 2-3/8” (60mm) backset Step 2: Drilling To ensure accuracy you should drill holes from both sides of the door towards the center. This avoids the risk of damaging the door face when the drill breaks through.
- Page 4 Step 4: Fitting the door latch Attach the latch using the screws provided. Step 5: Fitting the strike plate Close the door to mark the horizontal line of the strike plate. Measure one half of door thickness from door stop to mark vertical center line of the strike. Drill 1”...
- Page 5 Step 7: Rotating the motor adjustment plate To ensure that the motor adjustment plate is at - 2” (50mm) the correct distance, rotate until it sits flush with the door and the motor has engaged properly. Please refer to the diagram for the correct position of the plate for each door thickness.
- Page 6 Step 10: Fitting the rear backplate assembly Feed the motor cable through the hole in the motor back plate. Step 11: Fitting the rear housing and motor wiring Feed both the cables through the rear housing cutout and fit the lower long mounting screws. Step 12: Fitting the rear lock assembly and wiring Fit top, long mounting screws and 2 lower short...
- Page 7 Step 10: Fitting the batteries Step 11: Securing the rear cover Step 12: Fitting the cover plate and handle...
- Page 8 Optional step: Handle orientation for LH door To configure for LH door operation, remove the front and rear handles using the handle removal pin. Unscrew the 4 screws securing the rose to the front/rear housings, rotate 180 degrees and screw back together. Refit the handles, and push home until the axle engagement clicks.
-
Page 9: Software Installation
Software installation ≤ 200 ≤ 1000 Net2 Pro/Net2 Lite: http://paxton.info/1438 Wireless Signal Range 0 ft 10ft 65ft 100ft... - Page 10 Enrolling a PaxLock...
- Page 11 PaxLock reset Battery replacement...
-
Page 12: Specifications
Specifications Features 10,000 Maximum number of users/tokens Access Levels Time zones 1 sec 60 secs Door unlock time Recommended number of Paxlock’s per Net2Air bridge Net2Air bridge per system 50 ft Net2Air wireless range 3,584 Events stored Environment 4 x AA Alkaline Battery type 20,000 operations 30,000 operations... - Page 13 +44 (0)1273 811011 support@paxton.co.uk paxton.support +44 (0)1273 811011 support@paxton.co.uk paxton.support +1(800) 672-7298 supportUS@paxton-access.com usapaxton.support +1(800) 672-7298 supportUS@paxton-access.com usapaxton.support +49 (0) 251 2080 6900 support@paxton-gmbh.de paxton.gmbh.support +31 (0)76 3333 999 support@paxton-benelux.com paxton.benelux.support +31 (0)76 3333 999 support@paxton-benelux.com paxton.benelux.support +31 (0)76 3333 999 support@paxton-benelux.com...
-
Page 14: Fcc Compliance
The declaration of conformity is available on request. Contact details are provided at: http://paxton.info/596 These products are not suitable for retail sale. All warranties are invalid if these products are not installed by a competent person. North America:- Product Compliance and limitations Wiring methods shall be in accordance with the National Electrical Code (ANSI/NFPA70), local codes, and the authorities having jurisdiction. - Page 16 Made in the UK © Paxton Ltd 1.0.0 22/10/2014...
