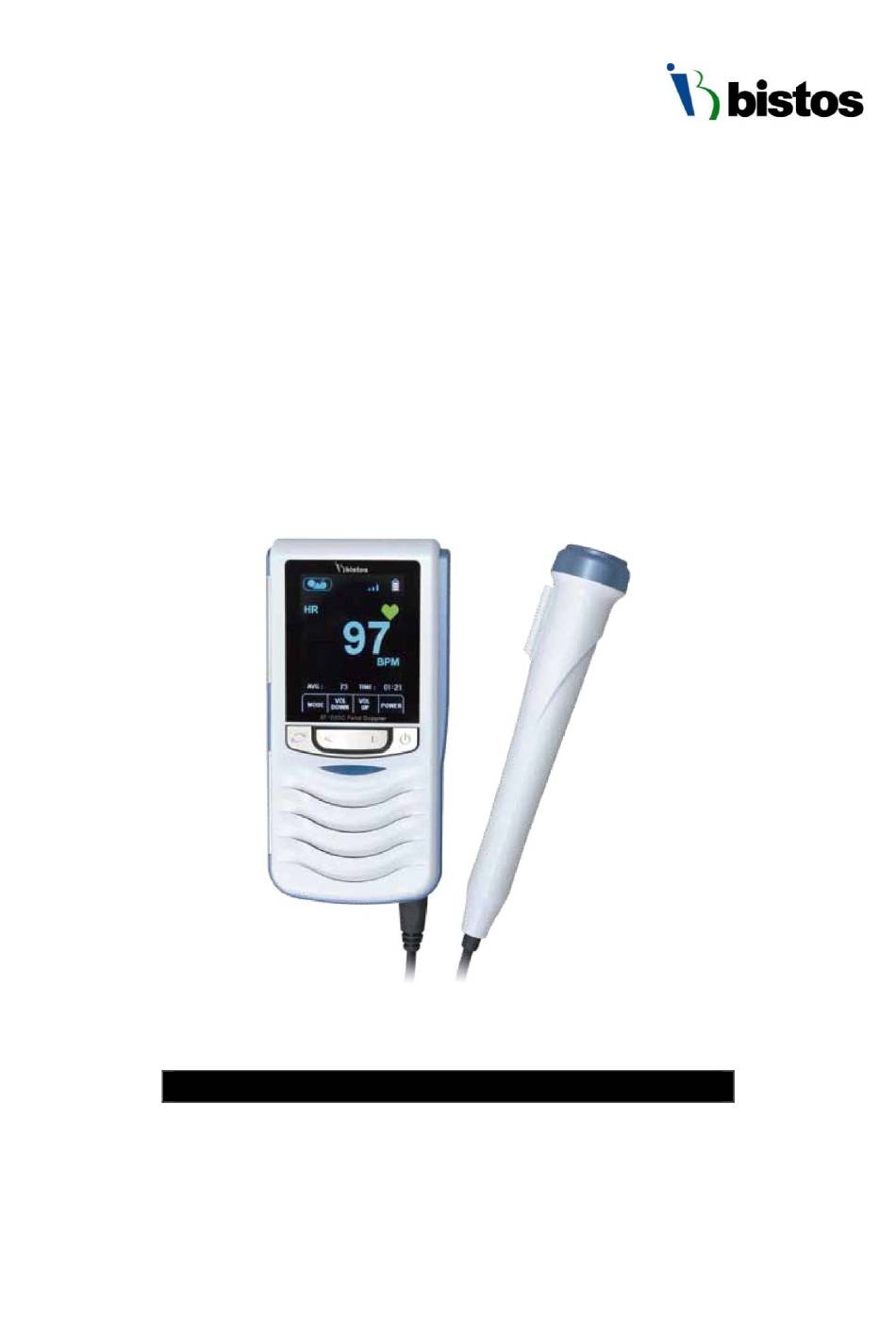

- Page 1 BT-220 Ultrasound Doppler System Operation Manual BT-220 Keep this manual for future reference P/N: 220-ENG-OPM-EUR-R02...
- Page 2 Information furnished by Bistos Co., Ltd. is believed to be accurate and reliable. However, no responsibility is assumed by Bistos Co., Ltd. for its use, or any infringements of patents or other rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Bistos Co., Ltd.
-
Page 3: Table Of Contents
BT-220 Operation Manual Table of Contents 1. SAFETY ..................4 1.1 Instructions for the Safe Operation and Use of the BT-220 Doppler ....4 1.2 Warnings ......................5 1.3 Cautions ......................5 1.4 Definitions of Symbols ..................7 2. INTROCUTION ................. 8 2.1 Product Overview .................... -
Page 4: Safety
BT-220 Operation Manual Section Safety Instructions for the Safe Operation and Use of the BT-220 Ultrasound Doppler System Examine the device and any accessories periodically to ensure that the cable and batteries do not have visible evidence of damage that may affect patient safety or performance. -
Page 5: Warnings
BT-220 Operation Manual 1.2 Warnings EXPLOSION HAZARD — Do not use the BT-220 in a flammable WARNING atmosphere where concentrations of flammable anesthetics or other materials may occur. SHOCK HAZARD — BT-220 doesn't have protection against the burn injury caused by RF Surgical equipment. Do NOT use this product along with RF Surgical equipment. - Page 6 Do not disjoint or Power off when the disassemble the equipment is not equipment. fully installed. BISTOS Co., Ltd. Otherwise, the does not take equipment could responsibility of it. be damaged. P/N: 220-ENG-OPM-EUR-R02 Bistos Co.,Ltd 2018,03...
-
Page 7: Definitions Of Symbols
BT-220 Operation Manual 1.4 Definitions of Symbols Symbol Description Requirements Power On/Off Button IEC TR 60878 This symbol identifies a safety note. Ensure you understand the function of this control before using it. IEC60601-1 Control function is described in the operation manual. -
Page 8: Introcution
④ Long time use ⑤ High quality sound Product Configuration BT-220 consists of the following. Unpack the package and check out the following items. Also be sure to check any damage of main body, probe and accessories. ① BT-220 main body and probe ②... -
Page 9: Exterior Component Designation
BT-220 Operation Manual Exterior Component Designation ◎ Front View, Top View & Right View ◊ BT-220L ① Custom Mono LCD ② Power Button & Up/Down Button ③ Indicator LED ④ Sound Output ⑤ Ear Phone Jack ◊ BT-220C ① TFT Color LCD ②... - Page 10 BT-220 Operation Manual ◎ Rear View, Bottom View & Left View ① Product Label ② Battery Compartment ③ Probe Groove Joint ④ Probe Connection and Charging Jack ◎ Probe ① Sensor ② Probe Groove Joint ③ Probe Connector P/N: 220-ENG-OPM-EUR-R02 Bistos Co.,Ltd...
-
Page 11: Operation
BT-220 Operation Manual Section Operation Controls and Indicators 3.1.1 Buttons and Description ◊ BT-220L Button Description It has function of AST On/Off It has the function of volume down It has the function of volume up It has the function of power on/off ◊... -
Page 12: Operation Of Bt-220
Search for the position which can get the clearest sound. Operation of BT-220 3.2.1 Ready for use 1) Insert batteries Open the battery cover on the back of the BT-220. Insert the battery, ensuring the polarity. P/N: 220-ENG-OPM-EUR-R02 Bistos Co.,Ltd... - Page 13 BT-220 Operation Manual 2) connect the probe Connect the connector , placing the “DOP” mark of connector upward 3) Use the ultrasound transmission gel Put an suitable amount of ultrasound transmission gel on the probe sensor 3.2.2 Use of the product 3.2.2.1 BT-220L...
- Page 14 BT-220 Operation Manual 2) Use the button ① Power on/off Press the button to turn on/off of product. ② Volume up Press the button to turn up the volume. (max level - 4) ③ Volume down Press the button to turn down the volume.
- Page 15 BT-220 Operation Manual 2) Use the button ① Power on/off Press the button to turn on/off of product. ② Volume up Press the button to turn up the volume. (max level - 4) ③ Volume down Press the button to turn down the volume.
-
Page 16: Cleaning & Maintenance
Operation Manual Section Cleaning & Maintenance This chapter contains instructions for the care and cleaning of the BT-220 unit and its accessories. The BT-220 requires proper care and preventive maintenance. If you use the material that is not approved, it may cause any damage to the product. In this case, the product will not be guaranteed even within the warranty period. -
Page 17: Preventative Maintenance
BT-220 Operation Manual unacceptable risks. If the BT-220 does not work properly, please contact us and change the corresponding parts. Note that the replacement costs can be occurred. Preventative Maintenance Operators and service personnel should examine the device and any accessories periodically to ensure that the cable and batteries do not have visible evidence of damage that may affect patient safety or performance. -
Page 18: Specifications
BT-220 Operation Manual Section Specifications BT-220 Ultrasound Doppler System Specifications: General Ultrasound Frequency 2 MHz, 3 MHz Intensity <10 mW/cm BT-220L: 50~240 bpm Heart rate range BT-220C: 30~240 bpm FHR accuracy ±2bpm or 2% of range Available pregnancy periods 10 ~ 12 weeks inward Physical characteristics (W)132 ㎜×(L)66 ㎜×(H)27.6 ㎜... -
Page 19: Declaration On Emc
Section Declaration on EMC Electromagnetic emissions The BT-220 is intended for use in the electromagnetic environment specified below. The customer or the user of BT-220 should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment-guidance... -
Page 20: Electromagnetic Immunity
Electromagnetic immunity The BT-220 is intended for use in the electromagnetic environment specified below. The customer or the user of the BT-220 should assure that it is used in such an environment. IEC 60601... - Page 21 BT-220 Operation Manual The BT-220 is intended for use in the electromagnetic environment specified below. The customer or the user of the BT-220 should assure that it is used in such an environment. IEC 60601 test Compliance Electromagnetic environment- Immunity test...
-
Page 22: Immunity And Compliance Level
BT-220 Operation Manual 6.4 Immunity and Compliance Level [Probe : AY-2MHZDOP-220C (2 Hz, Vertical)] Image at Frequency of Interest Frequency of Interest** Actual Immunity Level [MHz] 160.54 MHz 3 V/m 201.82 MHz 3 V/m Radiated RF IEC 61000-4-3 * Voltage Level at which the RF Induced Noise is No Longer Discernable from the system ambient background noise. - Page 23 BT-220 Operation Manual Probe : AY-2MHZDOP-220C (2 Hz, Horizontal)] Image at Frequency of Interest Frequency of Interest** Actual Immunity Level [MHz] 82.42 MHz 3 V/m 152.74 MHz 3 V/m 216.38 MHz 3 V/m Radiated RF IEC 61000-4-3 * Voltage Level at which the RF Induced Noise is No Longer Discernable from the system ambient background noise.
- Page 24 BT-220 Operation Manual [Probe : AY-3MHZDOP-220C (2 Hz, Vertical)] Image at Frequency of Frequency of Interest** Actual Immunity Level Interest [MHz] 116.76 MHz 3 V/m 120.30 MHz 3 V/m Radiated RF IEC 61000-4-3 * Voltage Level at which the RF Induced Noise is No Longer Discernable from the system ambient background noise.
- Page 25 BT-220 Operation Manual [Probe : AY-3MHZDOP-220C (2 Hz, Horizontal)] Image at Frequency of Frequency of Interest** Actual Immunity Level Interest [MHz] 157.37 MHz 3 V/m 229.69 MHz 3 V/m 277.49 MHz 3 V/m Radiated RF IEC 61000-4-3 * Voltage Level at which the RF Induced Noise is No Longer Discernable from the system ambient background noise.
-
Page 26: Product Guarantee
Sales Agency Manufacture Bistos Co., Ltd. ※ Thank you for purchasing BT-220. ※ This product is manufactured and passed through strict quality control and inspection. ※ Compensation standard concerning repair, replacement, refund of the product complies with “Framework Act on Consumers” noticed by Fair Trade Commission of Republic of Korea. - Page 27 BT-220 Operation Manual Service Telephone and Fax. Numbers Telephone: +82 31 750 0340 Fax: +82 31 750 0344 Bistos Co., Ltd. FL., A Bldg., Woolim Lions Valley 5-cha, 302, Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea www.bistos.co.kr bistos@bistos.co.kr Obelis s.a Bd. Général Wahis 53 1030 Brussels, BELGIUM Telephone: + (32) 2.
