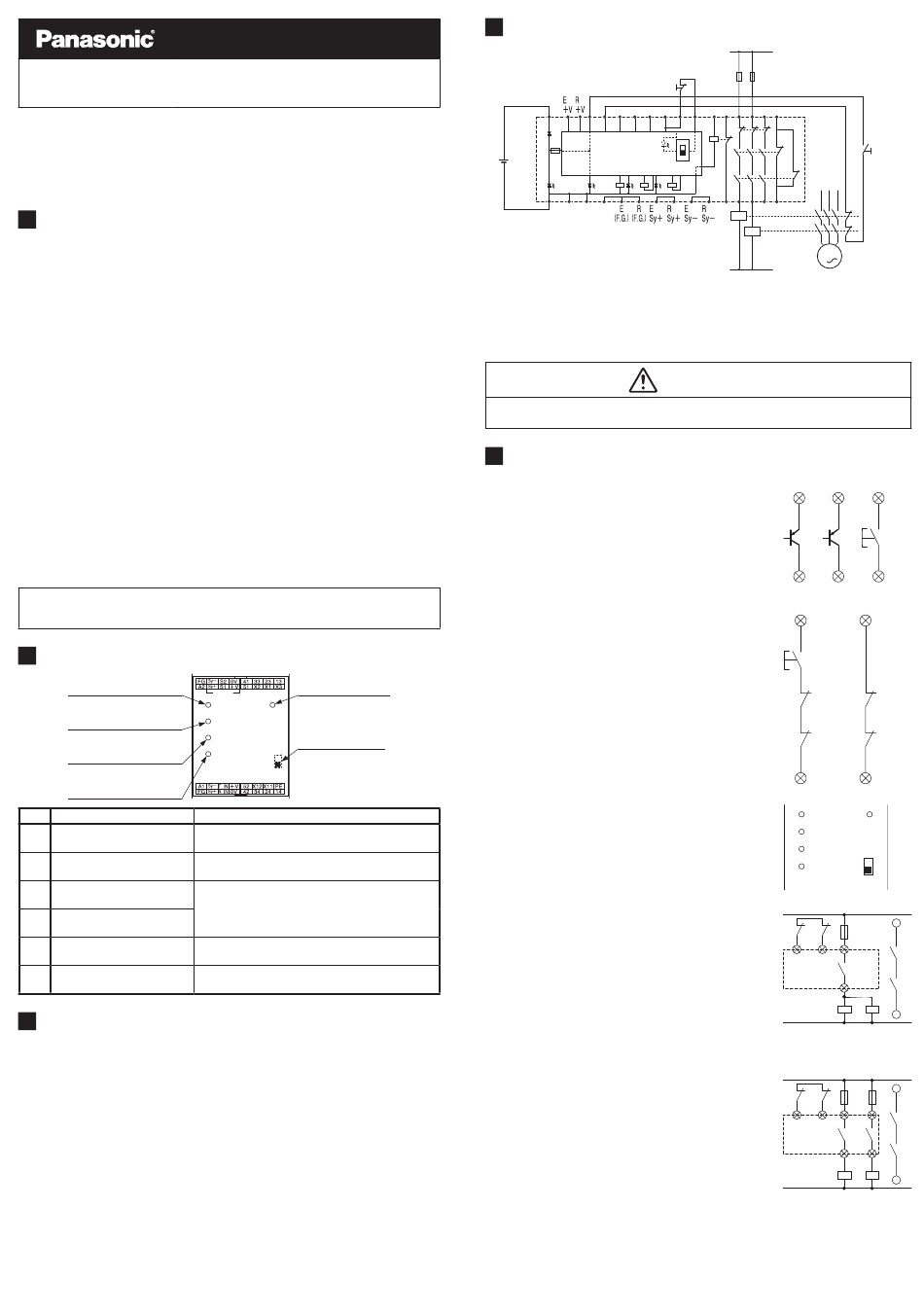

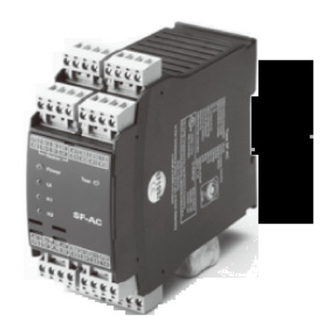

Panasonic SF-AC Instruction Manual

Control Unit Exclusive for Light Curtain
Thank you very much for purchasing Panasonic products.
Please read this Instruction Manual carefully and thoroughly for the correct
and optimum use of this product.
Kindly keep this manual in a convenient place for quick reference.
English and Japanese are original instructions.
1 OUTLINE
● This product is a control unit exclusive for the light curtain conforming to
European / North American safety standards and Japanese safety stan-
dards for press machines.
● This device complies with the following standards / regulations.
<EU Directives>
EU Machinery Directive 2006/42/EC
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
<European Standards>
EN 60947-5-1, EN ISO 13849-1 (Category 4, PLe)
EN ISO 13849-2
<International Standards>
IEC 60947-5-1, ISO 13849-1 (Category 4, PLe), ISO 13849-2
<Japanese Industrial Standards (JIS)>
JIS B 9705-1 (Category 4)
<Standards in US / Canada)>
ANSI/UL 508, CAN/CSA C22.2 No.14
<Regulations in US>
OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19
ANSI/RIA 15.06
Regarding EU Machinery Directive, a Notified Body, BG, has certified
with the type examination certificate.
With regard to the standards in US / Canada, a NRTL, UL (Underwriters
Laboratories Inc.) has certified for C-UL US Listing Mark.
<Reference>
The conformity to JIS, OSHA and ANSI for this device has been evaluated by our-
selves.
FUNCTIONAL DESCRIPTION
2
1. Power indicator
(Power) (Green)
2. Internal circuit operation
indicator (Ui) (Green)
3. K1 relay operation
indicator (K1) (Green)
4. K2 relay operation
indicator (K2) (Green)
No. Designation
Power indicator
1
(Power) (Green)
Internal circuit operation
2
(Ui) (Green)
K1 relay operation
3
(K1) (Green)
K2 relay operation
4
(K2) (Green)
Test input indicator
5
(Test) (Yellow)
Test input polarity selection
6
switch
INSTALLATION POSITION / DIRECTION / METHOD
3
● Use the 35mm width DIN rail to install the unit.
● The installation position/direction is not basically limited.
● Please fix this product with optional DIN rail stopper MS-DIN-E after it
installs it in 35mm width DIN rail.
● Tighten the wiring to the wiring terminal block at tightening torque of
0.6N·m.
● Please install and connect ferrule (sleeve) terminal when the lead wire
of the connected equipment is a twisted wire. Please do not connect the
twisted wire directly with the terminal.
● Always install this product in a control panel having an IP54 or higher
protective structure.
INSTRUCTION MANUAL
SF-AC
ME-SFAC No.0063-81V
5. Test input indicator
(Test) (Yellow)
Receiver
Power Test
Ui
6. Test input polarity
K1
selection switch
SF-AC
K2
Description
Lights up when power is supplied.
Lights up when both conditions are present: unit is
powered up and electronic fuse is at normal state.
Lights up when enabling contacts are closed.
Lights up when X11-X12 is opened.
Selectable PNP or NPN test input polarity.
I/O CIRCUIT DIAGRAM
4
A1 X1 X2X3 S1 S2 T_IN
SF-AC
+ 24V DC
CONTROL-LOGIC
F1
±10%
-
K3 K1 K2
Power Ui
A2 E R PE
0V 0V
* E: Emitter, R: Receiver
T_IN: Used to connect the test input wire (or the emission halt input wire) of light curtain.
A_IN: Used to connect the auxiliary output wire (or the alarm output wire) of light curtain.
Note: Please wire between X1-X2 when using it by the manual reset as shown in the figure
below or please wire between X1-X3 when using it by the auto reset.
Install a RESET switch in palace where it is possible to see all over the
dangerous zone and outside of the zone.
5 CIRCUIT EXAMPLE
● Wiring example of input part
2-channel input type
Connection of PNP transistor output
It is possible to detect the wire disconnection
and short-circuit (against ground) by the built-in
monitor circuit.
When the external reset signal is connected.
• For auto reset, the external conductor B contact
is connected to between the X1-X3 to make up
a back-check circuit.
When the back-check function is not used, the
jumper is connected to between the X1-X3.
When the external reset button (it makes up a
back-up check circuit between X1-X2.) is used,
the relay unit is operated by the signal trailing
operation. When the product is used for auto-
start, use the other control circuit to prevent the
system (after emergency shutdown) from be-
ing reset automatically. (Refer to the "IEC / EN
60204-1)
• The test input polarity selection switch S1 (ar-
ranged on rear side of upper cover) built in the
relay unit is changed depending on the polarity of
test input (emission halt input).
* It has been set to 'PNP' side at time of ship-
ment.
For SF2-EH series, change the slide switch to
"NPN" side prior to use.
● Connection example of output part
• 1-channel output
The 1-channel output is suitable for the
strengthened type to which a relay is used, or
for the contactor to which chamber structure
type contact or forced guide type contact is pro-
vided.
* The external reset button is connected in se-
ries to the back-check circuit.
• 2-channel output
The 2-channel output is suitable for the
strengthened type to which a relay is used, or
for the contactor to which chamber structure
type contact or forced guide type contact is pro-
vided.
* The external reset button is connected in se-
ries to the back-check circuit.
L1
Test
Fuse 1 Fuse 2
X11 X12 A_IN 51 13 2333 41
K3
K4
K1
K2
L1 L2 L3
52 14 2434 42
KA
KB
M
3
N
WARNING
+24V +24V
(+V) (+V)
S1 S2
X1
RESET
KA
KB
X2
Power
Ui
K1
K2
L1
*
KA KB
X1 X2
14
N
KA
L1
*
KA KB
X1 X2
N
KA
RESET
KA
KB
X1
RESET
X2
X1
KA
KB
X3
Test
NPN
S1
(*)
PNP
13
KA
KB
KB
13 23
KA
KB
14 24
KB
