Summary of Contents for MAJORITY PARKSIDE COLOUR

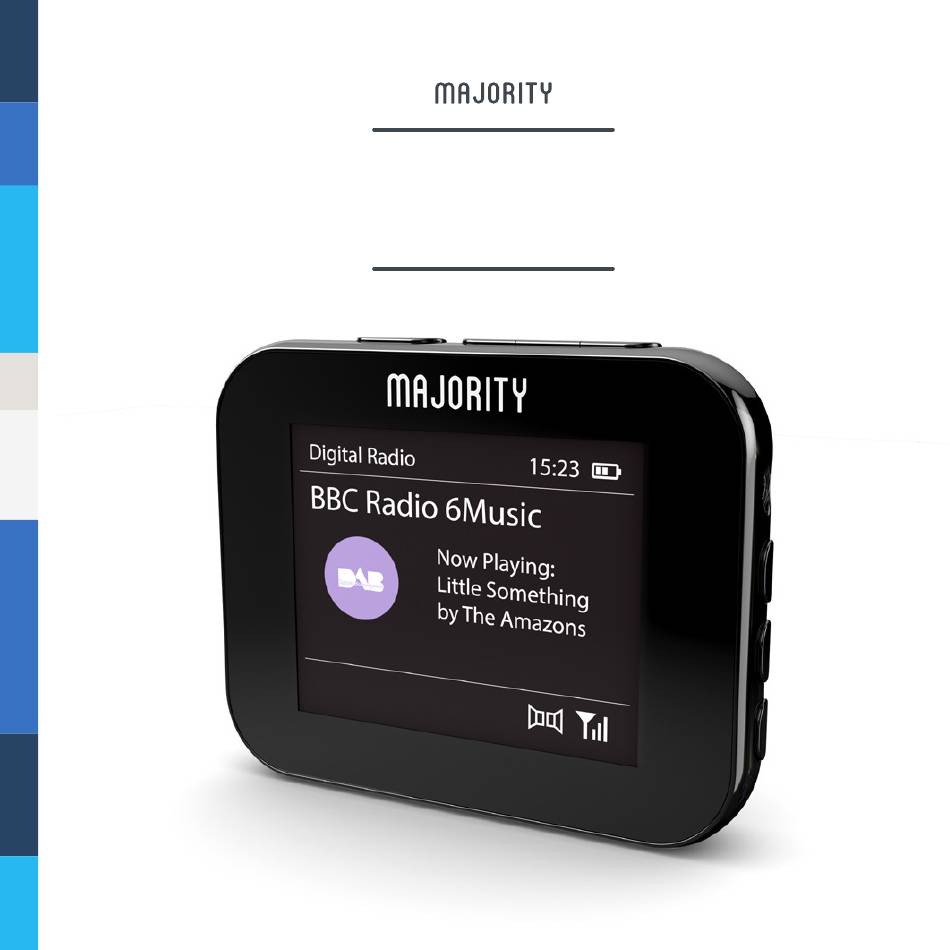

  • Page 1 P A R K S I D E C O L O U R SID-ALL-WAL...

  • Page 2: Table Of Contents

    Contents Box Contents What’s in the Box?1 Controls & Functions  2 Support  4 Instructions Guide  5 Basic Operation ���������������������������������������������������������6 DAB/DAB+ Radio Mode �������������������������������������������� 8 FM Radio Mode ������������������������������������������������������� 11 SD Card Playback ����������������������������������������������������� 14 Radio Settings ����������������������������������������������������������15 Charging ������������������������������������������������������������������20 Troubleshooting 21 Specifications  22...

  • Page 3: What's In The Box?1

    What’s in the Box? Box Contents 1� Parkside Colour Radio 3� Earphones 2� Micro USB Cable 4� Instructions Guide...

  • Page 4: Controls & Functions

    Controls & Functions Front View 1� Colour Display Top View 2� Menu 3� Previous 4� OK / Lock 5� Next...
  • Page 5 Controls & Functions Side Views 6. Micro USB port 10. Volume + 7. SD Card Port 11. Volume - 8. Power/Mode Button 12. Preset 9. Headphone Jack...

  • Page 6: Support

    Support Support Thank you for your purchase of the Majority Petersfield Colour radio. Please follow the guidance of the manual to set up your new purchase and begin enjoying its features. If you require further assistance with your new radio,...

  • Page 7: Instructions Guide

    Instructions Guide Navigation Controls Power/Mode button: Press and hold to turn your radio on. Press and hold to turn to standby mode - to switch off fully, press and hold the button again. Press (do not hold) to enter the mode selection screen. Menu button: Press and hold button to enter radio setting options.

  • Page 8: Basic Operation

    Press and hold the Power/Mode button (Ref.8) to switch the radio on. Whilst the radio loads up, “Majority” will display on the radio screen. Ensure that the earphones are connected to your radio (Ref.9) and fully extended as these act as the antenna.
  • Page 9 Instructions Guide Standby and Switching Off You can place the radio into standby mode or switch off the radio via the Power/Mode button (Ref.8) To place into standby, press and hold the Power/Mode button once (Ref.8) and a Standby screen will display, followed by a clock display screen shortly after.
  • Page 10 Instructions Guide Selecting Modes Ensure that your chosen earphones are connected to your radio and fully extended so that the best signal is being received before selecting modes. Press (do not hold) the Power/Mode button (Ref.8) to go to the mode selection screen, where the following modes will display: DAB, FM and SD card (MP3).

  • Page 11: Dab/Dab+ Radio Mode

    Instructions Guide DAB/DAB+ Radio Mode Press the Power/Mode button (Ref.8) to go to the mode selection screen and select DAB mode. Ensure that your chosen earphones are connected to your radio and fully extended so that the best signal is being received. To auto scan (if it hasn’t automatically or shows no signal), press and hold the Menu button (Ref.2) and use the Next button (Ref.5) to scroll to the “Auto Tune”...
  • Page 12 Instructions Guide DAB/DAB+ Preset Option How to preset a radio station Up to 10 stations can be preset for easy navigation. To store a station that you are currently playing: Press and hold the Preset button (Ref.12) and the ‘Preset Store’ screen will display. Use the Previous/Next buttons (Ref.3/5) to scroll to the preset number you would like to save the station as.
  • Page 13 Instructions Guide DAB/DAB+ Station Information Press the Menu button (Ref.2) repeatedly to show the programme information: Dynamic Label Segment (DLS): Displays text information supplied by the broadcaster. PTY (Programme Type): Shows the type and description of the programme provided by the DAB station. Frequency: Displays the station frequency.

  • Page 14: Fm Radio Mode

    Instructions Guide FM Radio Mode Press the Power/Mode button (Ref.8) to go to the mode selection screen and select FM radio mode. Ensure that the earphones are plugged in and fully extended. The first time you use FM mode, the FM frequency “87.5 MHz”...
  • Page 15 Instructions Guide Setting ‘All Stations’ or ‘Strong Stations’ Press the Menu button (Ref.2) and scroll to the ‘Scan setting’ option with the Next button. Select the option with the OK button. The screen will then display: “Strong Stations Only” with options of “Yes” or “No”. Use the Previous or Next buttons (Ref.3/5) to highlight (in blue) the option you wish to select.
  • Page 16 Instructions Guide FM Preset Option How to preset a radio station Up to 10 stations can be preset for easy navigation. To store a station that you are currently playing: Press and hold the Preset button (Ref.12) and the ‘Preset Store’ screen will display. Use the Previous/Next buttons (Ref.3/5) to scroll to the preset number you would like to save the station as.

  • Page 17: Sd Card Playback

    Instructions Guide SD Card Playback Press the Power/Mode button (Ref.8) to go to the mode selection screen and select SD card mode. Insert the micro SD card into the SD card port of the radio (Ref.7). The radio should automically go to ‘Music Playback’ mode and show the music folders or songs that have been set up on the SD card.

  • Page 18: Radio Settings

    Instructions Guide Radio Settings Open the menu settings by pressing and holding the Menu button (Ref.2). Using the Previous and Next buttons (Ref.3/5), scroll to the ‘Settings’ option and select it with the OK button (Ref.4). The following options will display: Language: Select the radio chosen language: English, French, German and Italian.
  • Page 19 Instructions Guide Settings: Backlight Open the menu settings by pressing and holding the Menu button (Ref.2). Using the Previous and Next buttons (Ref.3/5), scroll to the ‘Backlight’ option and select it with the OK button. The following options will display: Timeout Select the option to choose the backlight display timeout.
  • Page 20 Instructions Guide Settings: Clock Open the menu settings by pressing and holding the Menu button (Ref.2). Using the Previous and Next buttons (Ref.3/5), scroll to the ‘Clock’ option and select it with the OK button. The following options will display: Set Time/Date: The date will flash for you to set.
  • Page 21 Instructions Guide Dual Alarm Settings Open the menu settings by pressing and holding the Menu button (Ref.2). Using the Previous and Next buttons (Ref.3/5), scroll to the ‘Settings’ option and select it with the OK button. In the settings options, select the ‘Alarm’...
  • Page 22 Instructions Guide Alarm Mode: Select the alarm tone that you would like to sound. Choose between Buzzer, DAB or FM. Select your option with the OK button. Alarm volume: Select the volume that you would like the alarm to sound. Select your option with the OK button.

  • Page 23: Charging

    Instructions Guide Charging Ensure that the radio is charged before use. You can charge the radio with the supplied power cable and plug into a computer or a compatible plug (not included). Insert the power cable into the micro USB port (Ref.6) of the radio to begin charging.

  • Page 24: Troubleshooting 21

    Troubleshooting Troubleshooting Malfunction Possible causes/measures No power/function Ensure that the radio is fully charged. Switch on the radio by pressing and holding the Power button. No sound or radio interference Ensure that earphones are plugged into the radio and fully extend the earphone cable.

  • Page 25: Specifications

    Specifications Specifications 5V 1A Power Supply 3.7V/1500mAh Lithium battery DAB: Band III 5A - 13F FM: 87.5MHz - 108 MHz Mode: SD Card - MP2, Mp3, AAC LC - 576 kbps 48KHz and 529.2 kbps 44.1KHZ, FLAC, OGG, Earphone output 3 mW (32Ω) power Battery portability...

  • Page 26: Warranty

    Warranty Warranty All products come with a standard 12 month warranty. All items must be registered on www.majorityradios.co.uk for the warranty to be valid. Once on the web page, use the menu to find “Register Your Product”. You will also be given the chance to extend your warranty for an additional 24 months, free of charge.

  • Page 27: Safety Information

    Safety Information 1. Read these instructions. specified by the manufacturer. 2. Keep these instructions. Instructions 10. Unplug this apparatus during light are also available for download at storms or when unused for long www.majorityradios.co.uk periods of time. 3. Heed all Warnings 11.
  • Page 28 Safety Information ADDITIONAL WARNINGS This symbol means an electrical The apparatus shall not be exposed to product should not be disposed dripping or splashing and no objects filled of with normal household waste. with liquid, such as vases, shall be places Please ensure it is taken to a on the apparatus.
  • Page 29 www.majorityradios.co.uk...
  • Page 30 P A R K S I D E C O L O U R Bedienungsanleitung Instructions guide ist in deutscher Sprache auf unserer website verfügbar: www.majorityradios.de...
