Forcematching Using Previous Bare Rim Measurement

GSP9720JLR Wheel Balancer Operation Instructions

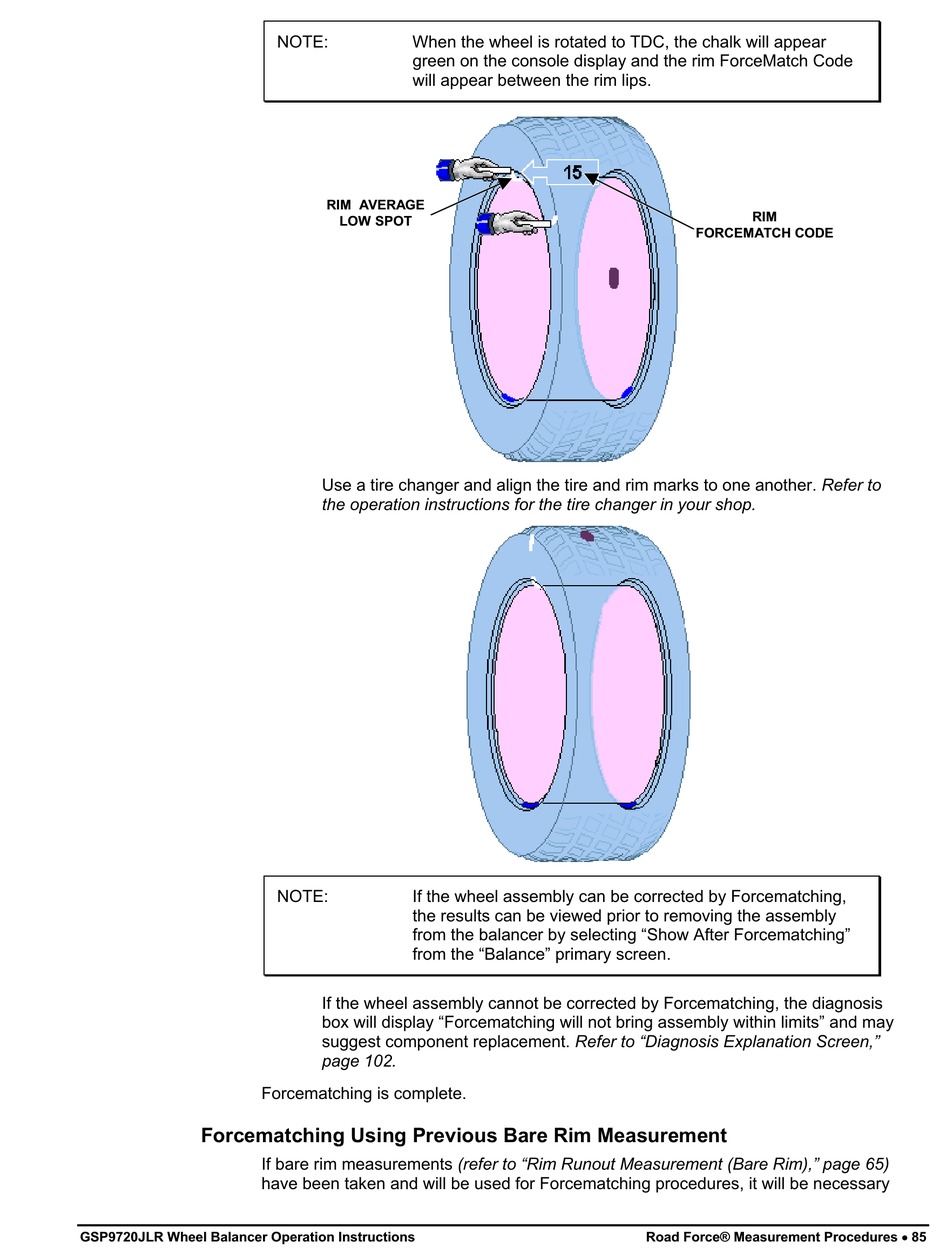

NOTE: When the wheel is rotated to TDC, the chalk will appear
green on the console display and the rim ForceMatch Code
will appear between the rim lips.
RIM AVERAGE
LOW SPOT
Use a tire changer and align the tire and rim marks to one another. Refer to
the operation instructions for the tire changer in your shop.
NOTE: If the wheel assembly can be corrected by Forcematching,
the results can be viewed prior to removing the assembly
from the balancer by selecting "Show After Forcematching"
from the "Balance" primary screen.
If the wheel assembly cannot be corrected by Forcematching, the diagnosis
box will display "Forcematching will not bring assembly within limits" and may
suggest component replacement. Refer to "Diagnosis Explanation Screen,"
page 102.
Forcematching is complete.
If bare rim measurements (refer to "Rim Runout Measurement (Bare Rim)," page 65)
have been taken and will be used for Forcematching procedures, it will be necessary
RIM
FORCEMATCH CODE
Road Force® Measurement Procedures x 85
