RTI XP-3 Reference Manual

Advanced control processor
Hide thumbs Also See for XP-3:
1
2
3
4

Advertisement

Quick Links

Download this manual

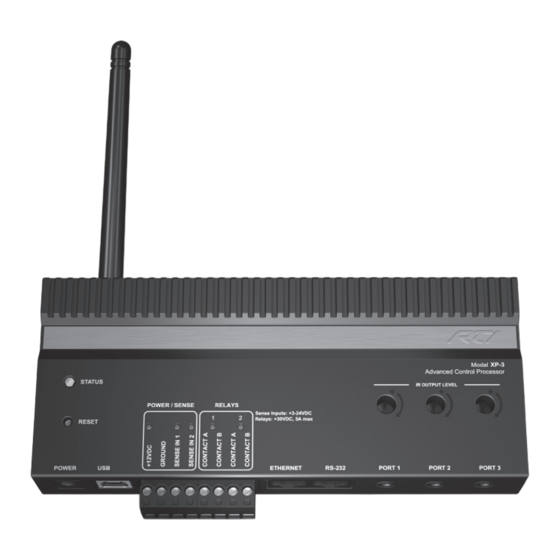

XP-3 Advanced Control Processor
Boasting a powerful 533MHz CPU and 128MB of non-volatile flash memory, the XP-3 processor packs a big punch
at a moderate price. With a built-in ZigBee
the XP-3 can provide the user with rock-solid control and feedback from devices such as music servers, lighting,
security, and much more. For complete control in any room, the XP-3 also allows powerful two-way control with
Ethernet-enabled RTI wired controllers and has full support for the RTiPanel App.
The XP-3 provides superior quality and reliability as well as these features:
• Powerful 32bit, 533MHz CPU.
• 128MB of non-volatile Flash memory.
• One multi-purpose I/O ports.
• Two IR variable output ports.
• Two assignable voltage sense inputs.
• Two programmable relay outputs.
• One two-way RS-232 ports.
• One integrated 10/100Base-T Ethernet port.
• Built-in astronomical clock.
RF transceiver module
• Built-in 2.4GHz Zigbee
®
XP-3
Advanced Control Processor
Reference Guide
transceiver and support for wireless bi-directional communications,
®
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the XP-3 and is the answer not in the manual?

Questions and answers

Related Manuals for RTI XP-3

Summary of Contents for RTI XP-3

  • Page 1 Advanced Control Processor Reference Guide XP-3 Advanced Control Processor Boasting a powerful 533MHz CPU and 128MB of non-volatile flash memory, the XP-3 processor packs a big punch at a moderate price. With a built-in ZigBee transceiver and support for wireless bi-directional communications, ®...
  • Page 2 UPDATING FIRMWARE It is highly recommended that this and all RTI products have the latest firmware installed. The firmware can be found in the Dealer section of the RTI website (www.rticorp.com). Install the firmware using the USB Programming Port located on the front of XP-3.
  • Page 3 RELAYS Sense In 1 or The two relays in the XP-3 can provide contact closure or switching control for loads up 2 and Ground Receiver or source to 5A/30VDC each. Both relays are Normally Open when not energized, but they can be equipment with programmed to behave Normally Closed as long as power is applied to the XP-3.

  • Page 4: Product Contents

    RTI will provide warranty coverage extension of six (6) months from the date code of the product. Note: RTI warranty is limited to the NOTE: Do not use harsh chemicals as damage to the unit may occur.
