- Page 1 OPERATORS SRM12 MANUAL MIXER Persons under the age of 18 are not permitted to operate or have accessibility to operate this equipment per U.S. Department of Labor Employment Standards Administration Fact Sheet No. ESA91-3 SRM12/1208 0011012...

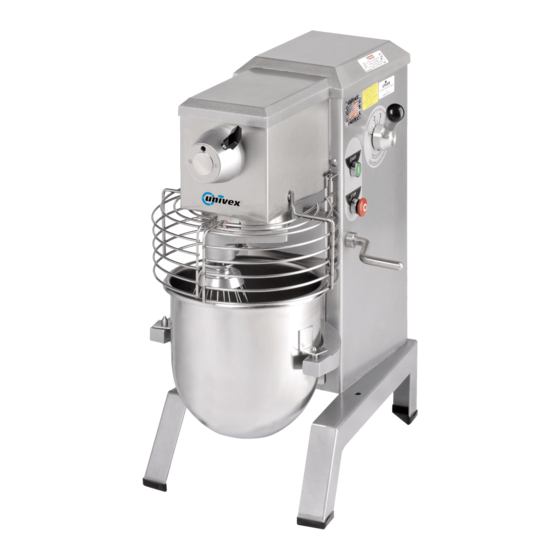

- Page 2 Welcome to Univex Thank you for purchasing this Univex Product. Your new SRM12 mixer has been designed with advanced performance and safety features that make it an excellent addition to your food preparation equipment. Like all Univex mixers, slicers, meat grinders and accessories, this mixer is engineered to provide years of reliable service.
-
Page 3: Table Of Contents
OPERATING THE SRM12 MIXER ........ -
Page 4: Choosing The Right Location For Your Mixer
USER FRIENDLY SWING RING™ SAFETY GUARD Your SRM12 mixer features a two part safety guard. The Swing Ring™ Safety Guard is easily removed and installed, as well as dishwasher safe. It conveniently swings out of the way without having to be removed to place or sample ingredients in the bowl. -
Page 5: Operating The Srm12 Mixer
OPERATING THE SRM12 MIXER Your Univex mixer is designed to meet the cook’s and baker’s demand for an efficient, dependable appliance. It should give unfailing performance over a period of years when operated and maintained according to the instructions contained herein. - Page 6 Do not operate the mixer without the bowl in place. VARI-SPEED CONTROL A major advantage of Univex mixers is there Continuously Variable Transmission (CVT). Unlike other mixers, CVT lets you change speeds while the mixer is running. To change speeds move the speed control lever (Figure 1 [9]) to the desired speed.
-
Page 7: Using The Power Take-Off
NOTE: Always return to speed “1” before shutting the mixer off. Do not move the speed control lever when the mixer is not running, because this will cause the belt to become loose and the mixer will not operate properly. If the mixer has been shut off by the timer, or the stop button in speed 2, 3 or 4, follow these steps to avoid belt slippage or jerky start: Empty the bowl. -
Page 8: Table Of Mixing Capacities And Recommended Agitators
Table of Mixing Capacities and Recommended Agitators SRM 12 MODEL 15 qt. 14.2 L. Bowl Capacity Attachment Hub Size 1/3 hp. Motor Kitchen Capacities (single Agitator batches) Mashed potatoes Batter beater, 4-Wing beater 10 lb. 4.5 kg. Whipping cream Wire whip, 4-Wing beater 2 1/2 qt. -
Page 9: Beaters, Agitators, Bowls, And Accessories
Beaters, Agitators, Bowls, and Accessories Available for the SRM 12 Mixer Part numbers (size in quarts) A. Batter Beater F. Sweet Dough Beater 1012231 (12) Optional 1012238 (12) B. Wire Whip G. Bowl 1012149 (12) 1012494 (12) C. Dough Hook H. -
Page 10: Figure 1 Overall View Of Mixer
OVERALL VIEW OF FOOD MIXER FIGURE 1 BOWL SUPPORT 10. LOWER MOUNTING BRACKET BOWL 11. UPPER MOUNTING BRACKET BOWL SUPPORT PIN 12. SPEED CONTROL LEVER BEATER HEAD SHAFT 13. TIMER (OPTIONAL) INGREDIENT CHUTE 14. SPEED INDICATOR LABEL SWING RING™ SAFETY GUARD 15. -
Page 11: Cleaning Your Mixer
• If the electrical supply cord becomes damaged, it must be replaced with an approved cord or assembly available from Univex directly or from a Univex service agent. • Do not overload the mixer. Overloading is the #1 cause of mixer failure. Follow the Table of Mixing Capacities on page 7. -
Page 12: Trouble Shooting Guide
8.3 Attachments hitting bowl. 8.3 Inspect for cause Ref: 6 and 7. 8.4 Overloaded mixing bowl. 8.4 Adjust contents of bowl per Capacity Table. * Remedies designated with * require the services of an authorized Univex service agent. Page 11... -
Page 13: 230V, 60Hz, 1Ph / 100V, 50/60Hz, 1Ph
ELECTRICAL WIRING DIAGRAM 115V, 60HZ, 1PH / 220-240V, 50HZ, 1PH / 230V, 60HZ, 1PH 100V, 50/60HZ, 1PH FIGURE 2A Notes: 1. ATTACH DOUBLE CRIMP FERRULE. 2. ATTACH DOUBLE CRIMP 1/4 FEMALE QUICK DISCONNECT FULLY INSULATED. 3. MATERIAL: 16GA 1015 TEW CSA AND UL APPROVED. IMPORTANT: Before making electrical connections, check the specifications on the data plate (located on the left side near the power cord) to assure they agree with those of your electrical service. -
Page 14: 220-240V, 50Hz, 1Ph (Europe Only)
ELECTRICAL WIRING DIAGRAM 115V, 60HZ, 1PH (FOR CANADA ONLY) 220-240V, 50HZ, 1PH (FOR EUROPE ONLY) FIGURE 2B Notes: 1. ATTACH DOUBLE CRIMP FERRULE. 2. ATTACH DOUBLE CRIMP 1/4 FEMALE QUICK DISCONNECT FULLY INSULATED. 3. MATERIAL: 16GA 1015 TEW CSA AND UL APPROVED. IMPORTANT: Before making electrical connections, check the specifications on the data plate (located on the left side near the power cord) to assure they agree with those of your electrical service. -
Page 15: Figure 2C Wiring Diagram 380-400V, 50Hz, 3Ph (Europe Only)
ELECTRICAL WIRING DIAGRAM 380-400V, 50HZ, 3PH (FOR EUROPE ONLY) FIGURE 2C Notes: 1. ATTACH DOUBLE CRIMP FERRULE. 2. ATTACH DOUBLE CRIMP 1/4 FEMALE QUICK DISCONNECT FULLY INSULATED. 3. MATERIAL: 16GA 1015 TEW CSA AND UL APPROVED. 4. ATTACH #10 RING TERMINAL IMPORTANT: Before making electrical connections, check the specifications on the data plate (located on the left side near the power cord) to assure they agree with those of your electrical service. -
Page 16: Warranty
Warranty The Univex SRM12 mixer carries a two-Year, on-site, parts and labor warranty against any defects in materials or workmanship. The two-year period begins on the date of purchase by the end user and remains in full effect provided the unit is used properly in accordance with our instructions.
