Installation

3.2.5.1 Installation
Check that the surface of the package unit, where the compressor is to be installed, is even and
horizontal. If it is uneven and non-horizontal, tightening the bolts may lead to compressor deformation,
which may prevent normal operation.
3.2.5.2

Shaft Alignment between the Compressor and Driving Machine

 Turn off the main power and control power of the driving machine before shaft
alignment work between the compressor and the driving machine. Be careful so that
the power of instruments does not turn on during shaft alignment work. If the power
turns on during shaft alignment work, the driving machine starts moving and there is a
risk of being entangled with the rotating shaft.
 At the time of turning ON/OFF each electric power breaker, make sure to prevent
electric shock.
 For shaft alignment work between the compressor and driving machine, use
designated tools in normal condition. If a worn or damaged tool or a tool unsuitable for
the work is used, there is a risk of being injured.
In the case shaft alignment between this product and the driving machine, be sure that the deviations
within the range shown in the Table 3–2. However, if alignment tolerance of the driving machine side is
more stringent than Table 3-2, please adjust to the request within the allowable value of the driving
machine side.

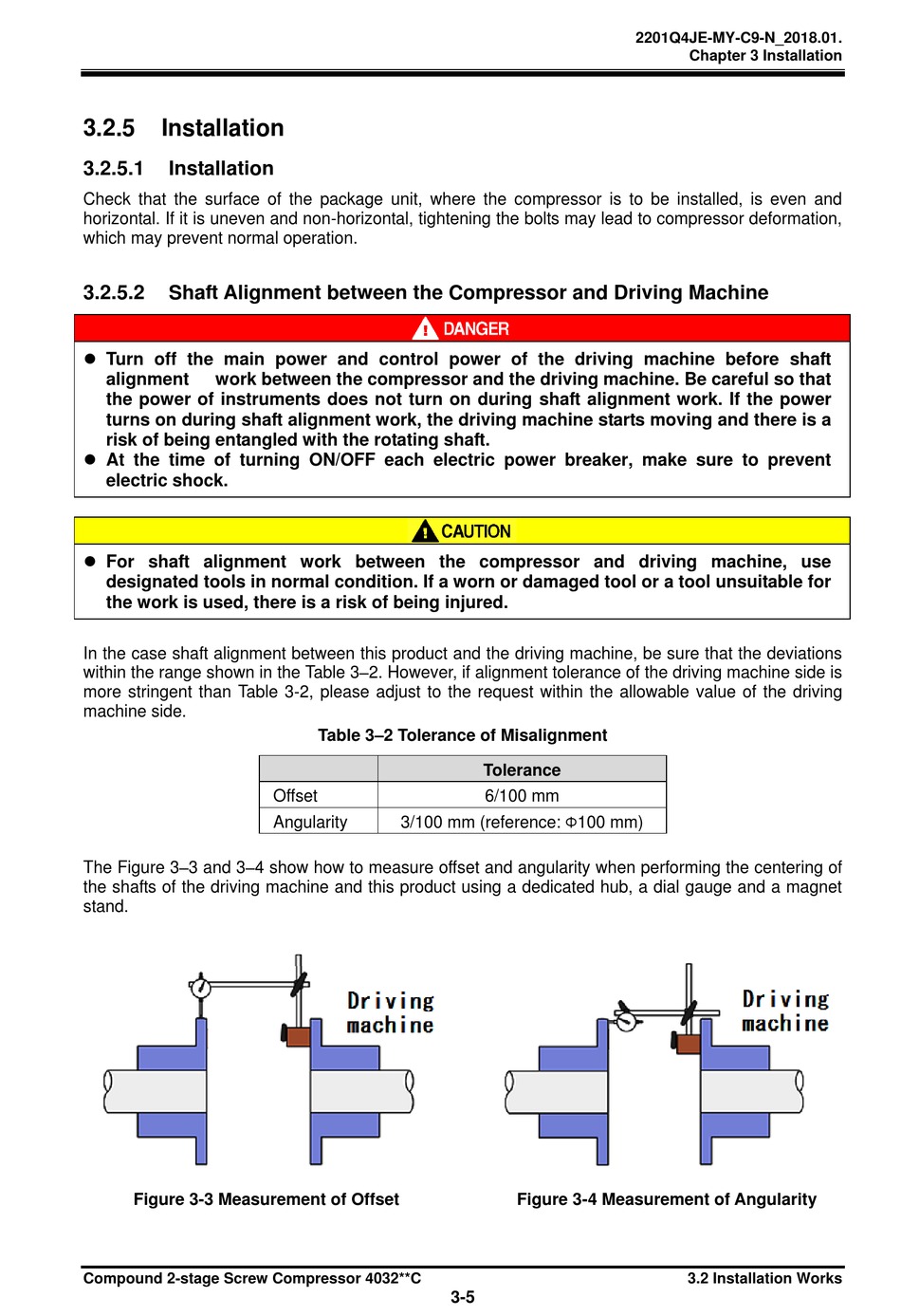

The Figure 3–3 and 3–4 show how to measure offset and angularity when performing the centering of
the shafts of the driving machine and this product using a dedicated hub, a dial gauge and a magnet
stand.
Figure 3-3 Measurement of Offset
Compound 2-stage Screw Compressor 4032**C
Table 3–2 Tolerance of Misalignment
Offset
Angularity 3/100 mm (reference:
Tolerance
6/100 mm
Φ
100 mm)
Figure 3-4 Measurement of Angularity
