Step 10.

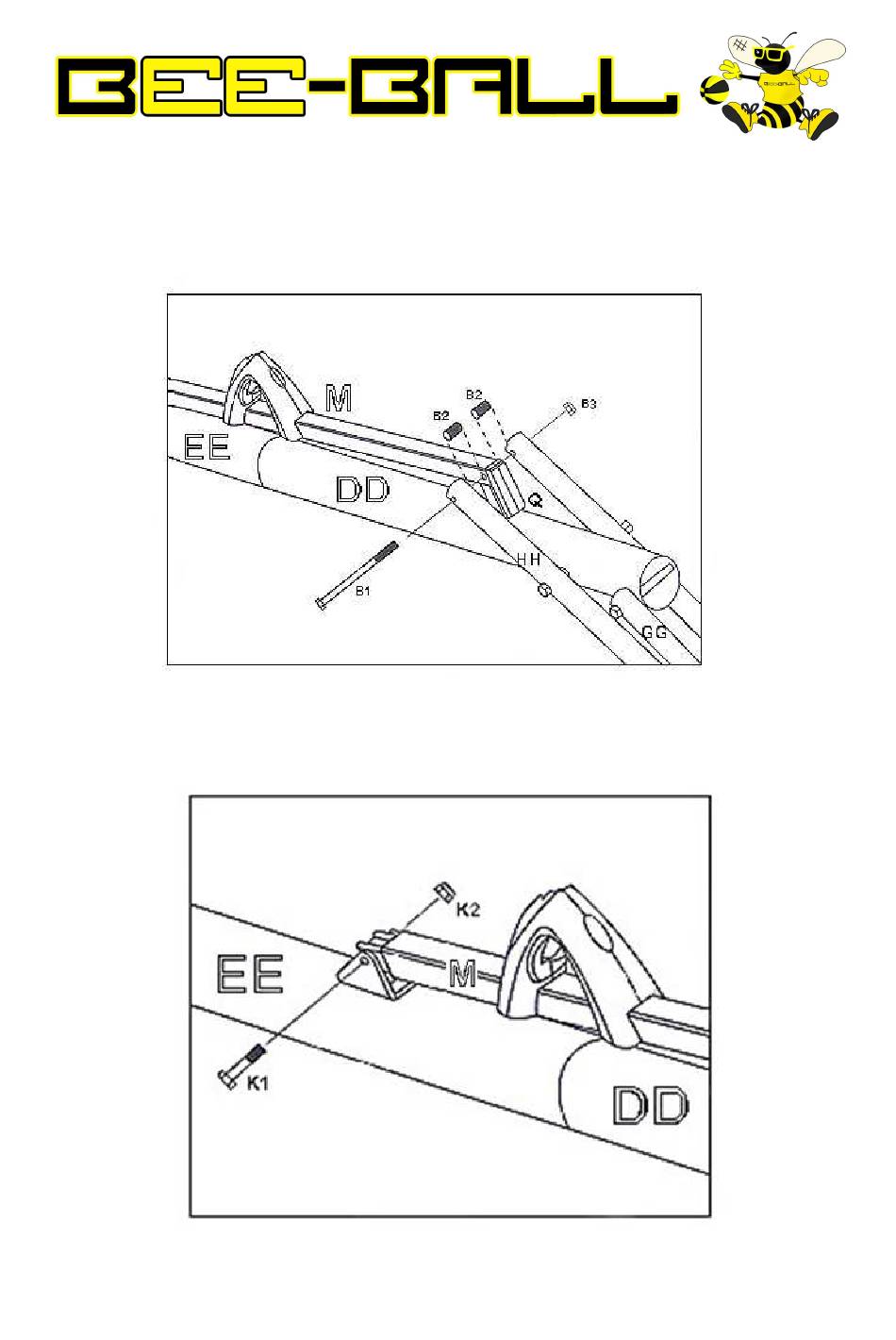

Place pole M between parts HH and fix together using bolt (B1) as shown below, please place spaces as
shown below. Tighten the nuts however do not over tighten that they cannot move as they are part of
the adjustment system and will need to freely move.
+
Step 11.
Secure pole M to the brace (O) on the middle pole (EE) using bolt (K1)
