MODEL : T 2 BIKE TRAILER
Owner's Manual should be kept for future reference
1. Completely read and understand Owner's Manual before assembling or operating this product.
2. This product should be assembled by an adult.
IMPORTANT SAFETY INFORMATION
• Failure to follow these warnings and assembly instructions could result in serious injury or death!
• Immediately discard all plastic bags and plastic wrapping materials!
• Maximum weight capacity for one child is 50 pounds, and for two children is 100 pounds!
• Never use this trailer/stroller if it becomes damaged!
• To avoid serious injury, children should always wear the seat belt and the shoulder straps!
• Never leave children unattended in or around this product!
• Never allow children to assemble, fold, or disassemble this unit!
• Accessories or parcels placed in trailer/stroller may cause it to become unstable!
• Not for use with children under 12 months old! Children must be able to support their own heads!
• Before riding, check that all parts are assembled according to the manufacturer instructions!
• Tires should be inflated to 25-35 PSI ( between 2.5 and 3.5 bar) for maximum comfort! Check tire
pressure before each use!
• Use a foot pump or hand pump to inflate tires! Pressurized air hoses can cause over inflation!
• Periodically re-check all fasteners to make sure they are tight!
• Clean trailer only with soap and water. Do not use solvents!
Make sure your bike brakes work properly! Braking distance is increased when pulling a trailer!
•
• This trailer is wide! Allow extra clearance near curbs, signs, parked cars, and other obstacles!
• A bicycle with trailer attached requires a wide turning radius! Do not turn sharply!
• Children must wear an approved safety helmet when using this product in trailer mode!
• Never remove protective canopy when pulling children in the trailer!
• Always use the safety flag when pulling this trailer!
• Do not ride over curbs! Avoid bumps and holes! Always signal your turns!
• Use extra caution when turning on uneven pavement, and going downhill!
• Not for use at high speeds! Do not exceed 10 MPH!
• NEVER use this trailer at night!
• Install a rearview mirror on your bike to check on children in trailer!
• Dress children appropriately to prevent them from getting chilled or overheated while riding!
• Protect against wind-chill in cold temperatures, and provide adequate ventilation and hydration
during warmer temperatures.
INSTRUCTIONAL OWNER'S MANUAL
PRODUCT REGISTRATION:
MAKE SURE TO REGISTER YOUR PURCHASE AT
http://allensportsusa.com/about/product-registration
TO QUALIFY FOR PRODUCT WARRANTY AND TO RECEIVE
IMPORTANT PRODUCT NOTIFICATIONS
SAFE TOWING TIPS
1
Advertisement
Table of Contents
Related Manuals for Allen Sports T2 BIKE TRAILER
Summary of Contents for Allen Sports T2 BIKE TRAILER
- Page 1 INSTRUCTIONAL OWNER’S MANUAL PRODUCT REGISTRATION: MAKE SURE TO REGISTER YOUR PURCHASE AT http://allensportsusa.com/about/product-registration TO QUALIFY FOR PRODUCT WARRANTY AND TO RECEIVE IMPORTANT PRODUCT NOTIFICATIONS MODEL : T 2 BIKE TRAILER Owner’s Manual should be kept for future reference 1. Completely read and understand Owner’s Manual before assembling or operating this product. 2.
- Page 2 INSTRUCTIONAL OWNER’S MANUAL FULLY ASSEMBLED TRAILER PARTS LIST QUANTITY DESCRIPTION Frame w/ Canopy, Sling Seat with 5 point safety harness, tow bar, tow bar coupler and rear wheel bracket attached 16” Rear wheels Safety flag...
-
Page 3: Table Of Contents
INSTRUCTIONAL OWNER’S MANUAL CONTENT 1. Warnings / Cautions ........4 2. Pre-Ride Safety Check ........4 3. Safety Guidelines ..........5 4. Main Cabin Frame and Assembly....7 5. Installing Wheels ..........8 6. Using Top Cover/Windscreen .......9 7. Safety Flag Installation .........9 8. Five-Point Harness ........10 9. -
Page 4: Warnings / Cautions
INSTRUCTIONAL OWNER’S MANUAL PLEASE READ ALL INSTRUCTIONS AND EXAMINE CONTENTS CAREFULLY BEFORE ASSEMBLY. Please read the instruction manual and warning labels completely and carefully before using your trailer. CAUTION: Please carefully read the instruction manual and all safety warning labels before using the trailer. IMPORTANT: Passengers and riders should always wear properly fitted, approved cycling helmets. -
Page 5: Safety Guidelines
INSTRUCTIONAL OWNER’S MANUAL SAFETY GUIDELINES: Think Safety First! Check the working condition of both bicycle and trailer before every use. If you discover broken components, misalignments, or missing parts, correct the problem prior to use. PLEASE FOLLOW THESE SAFETY GUIDELINES WHEN USING YOUR TRAILER: •... - Page 6 INSTRUCTIONAL OWNER’S MANUAL The safety of your child is of great concern. The trailer seat is intended for passengers older than 12 months and able to wear an approved helmet. Your child must be able to hold his head upright. Check with your pediatrician to make sure your child’s development makes him or her a suitable passenger in the trailer.
-
Page 7: Main Cabin Frame And Assembly
INSTRUCTIONAL OWNER’S MANUAL MAIN CABIN FRAME AND ASSEMBLY STEP 1: Remove the trailer, wheels, hitch arm and walking kit from the box. WARNING: Immediately discard all plastic bags and plastic wrapping materials! OPEN FRAME STEP 2: Remove trailer and all components from carton. Unfold trailer by pulling the frame and remove all components from inside. -
Page 8: Installing Wheels
INSTRUCTIONAL OWNER’S MANUAL MAIN CABIN FRAME AND WHEEL ASSEMBLY NOTE: For your safety and the safety of your child, before attaching the trailer to your bicycle, it is recommended that your bike undergo a safety check by a qualified bicycle mechanic. STEP 3: RELEASE THE TOW BAR 1. -
Page 9: Using Top Cover/Windscreen
INSTRUCTIONAL OWNER’S MANUAL FOUR SEASON COVER & FLAG ATTACHING THE FOUR SEASON COVER STEP 5: 1. Position the four-season cover over the trailer where roll-up window is facing towards the front side of the trailer. (Fig.12). 2. Wrap the Velcro backed fixing straps and secure the cover around the frame. 3. -
Page 10: Five-Point Harness
INSTRUCTIONAL OWNER’S MANUAL ATTACHING TO BIKE AND SAFETY HARNESS STEP 7: ATTACHING TRAILER TO BICYCLE 1. Loosen left side rear axle to allow the hitch to attach to frame. 2. Positiion hitch over left rear axle of bicycle frame (Fig15). 3. -
Page 11: Removing Passengers
INSTRUCTIONAL OWNER’S MANUAL Adjust the straps so that the crotch strap and shoulder straps meet at the child’s stomach level, IMPORTANT: not at chest level! (Note: The center crotch strap will not be clipped to any shoulder straps.) REMOVAL OF PASSENGERS Before removing children or cargo from the trailer, stop the bicycle and lock the trailer parking brakes on both wheels. -
Page 12: Maintenance
IF YOUR PRODUCT REQUIRES WARRANTY SERVICE, PLEASE DO NOT RETURN IT TO RETAIL STORE. PLEASE CONTACT: ALLEN SPORTS USA (800) 722-5536 ~ CUSTOMERSERVICE@ALLENRACKS.COM Please note that all returns and exchanges are subject to the return policy of the retailer where the product was originally purchased R.
Need help?
Do you have a question about the T2 BIKE TRAILER and is the answer not in the manual?
Questions and answers

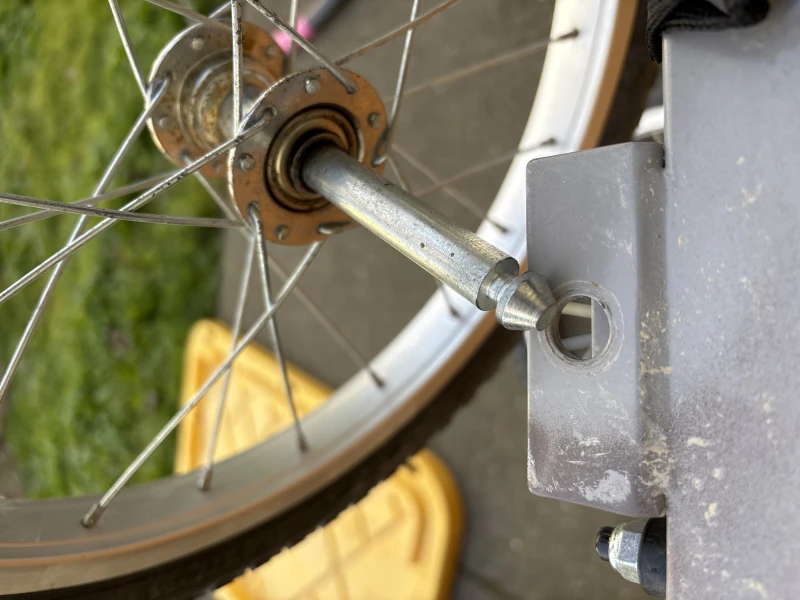

I can’t get my wheels back on
To reattach the wheels on an Allen Sports T2 Bike Trailer, follow these steps:
1. Tip the trailer frame to access the underside.
2. Locate the hole in the end of the hub axle.
3. Slide the quick-release (QR) pin, which is tethered to the bike frame near the wheel bracket, through the hole in the stub axle.
4. Loop the end of the pin over the shaft to secure it.
5. Repeat the process for the other wheel.
6. Ensure the QR pins are properly closed and snapped shut.
Do not use the trailer if the QR pins are missing or damaged, as improperly secured wheels may fall off.
