Thank you for purchasing a Panasonic product.
●Please read the operation manual for the safe and correct use of this product.
Make sure that you read the Safety Precautions on page 8 before using this product.
●Check that the purchase date and store have been marked correctly on the warranty form and keep it with the operation manual in a safe place.
Installation
Refer to the installation manual provided with the Central Controller.
Color Monitor Indoor Master
for Digital Pair Wiring System
VG - M186D
(Supports Residential Video Entry Camera) (Video Recording and Sound Recording) (Exposed Model)
Installation Manual Enclosed Separately
(Video Recording and Sound Recording) (Exposed Model)
電源
窓
VG-M 186D
火災
WINDO W
POWER
FIRE
外出
玄関
押す
ABSEN T
DOO R
PUSH
警報 音停 止 画面 表示
非 常
STO PALR M DISP LAY
EME RG.

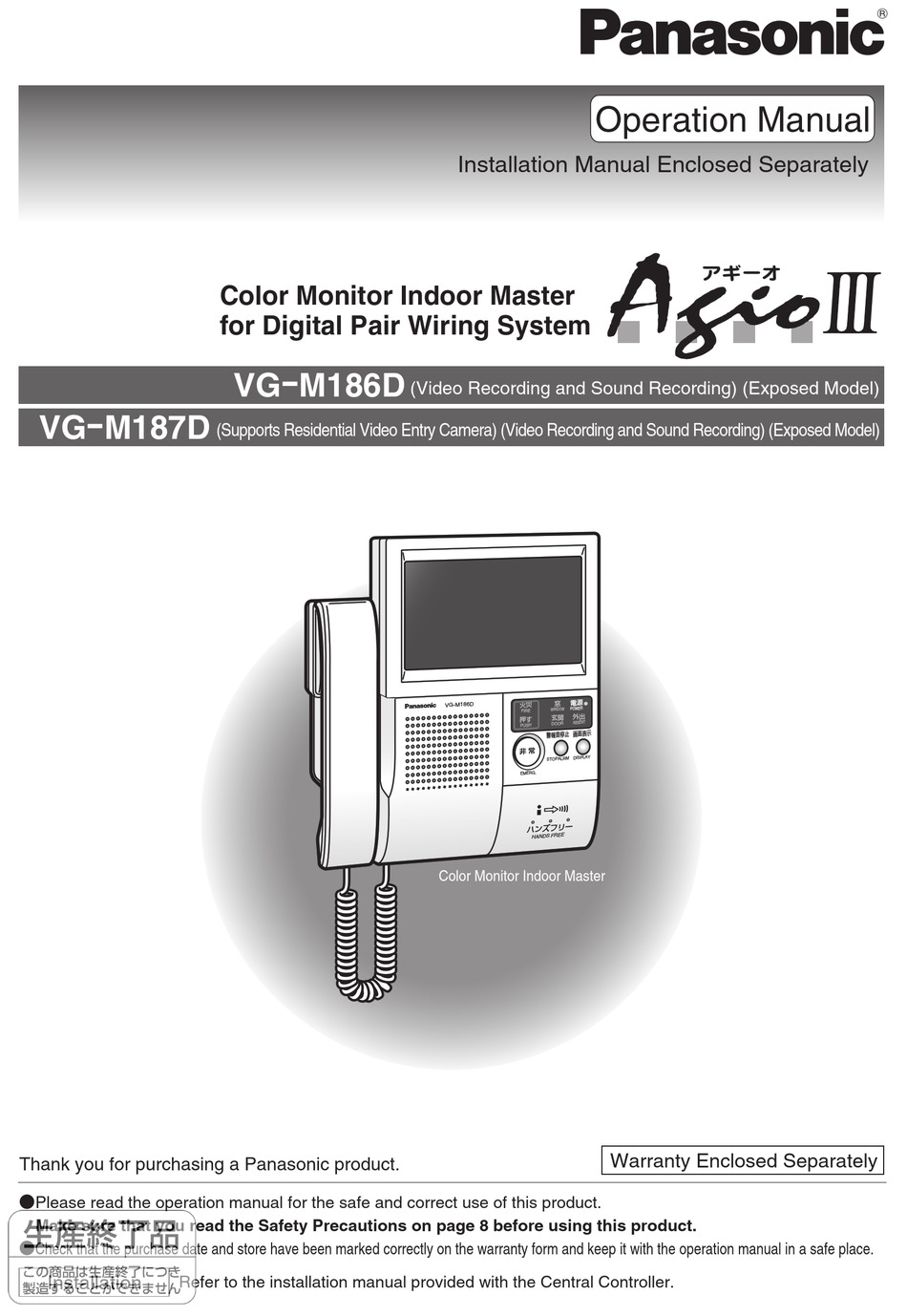

Color Monitor Indoor Master
Operation Manual
Warranty Enclosed Separately
