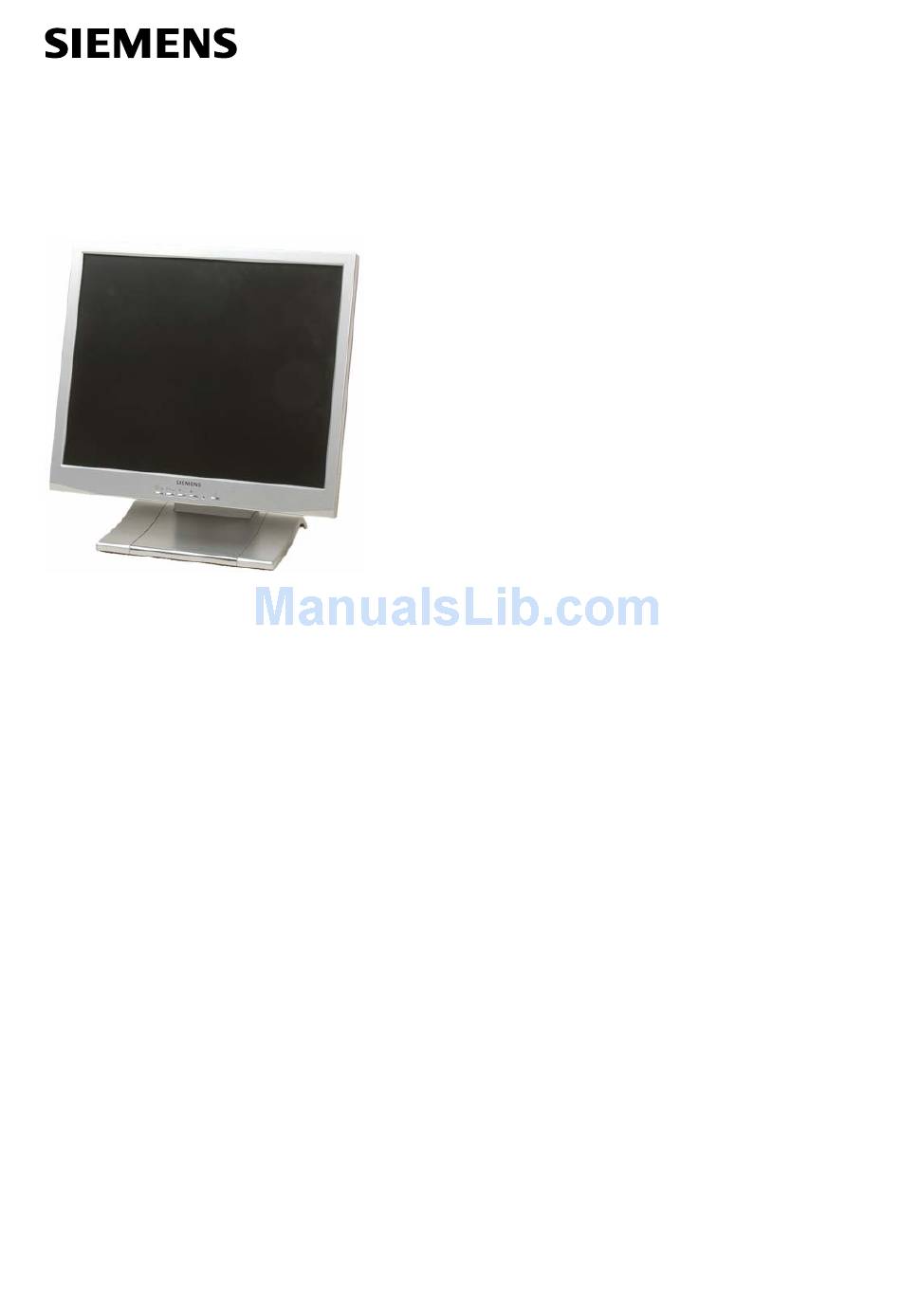

TFT LCD Monitor CMTC1720 CTMC1920 User Manual Fire Safety & Security Products Siemens Building Technologies... - Page 2 Data and design subject to change without notice. / Supply subject to availability. © 2006 Copyright by Siemens Building Technologies AG Wir behalten uns alle Rechte an diesem Dokument und an dem in ihm dargestellten Gegenstand vor. Der Empfänger erkennt diese Rechte an und wird dieses Dokument nicht ohne unsere vorgängige schriftliche Ermächtigung ganz oder teilweise Dritten zugänglich machen oder...
-
Page 3: Table Of Contents
Contents Siemens Building Technologies Fire Safety & Security Products Product Description...5 Work Safety Information ...6 Standards and Guidelines...7 FCC Information...7 CE Information ...7 Technical Data...8 Setting up the Monitor...9 Connect the Monitor to your Computer...9 Connect the Monitor to the Video Source...9 Connection and Buttons ...10... - Page 4 Siemens Building Technologies Fire Safety & Security Products 10.2006...
-
Page 5: Product Description
VESA DPMS, supported by Plug & Play, complying with DDC1/2B. 100 – 240 V AC Power Supply NTSC/PAL Auto-Detect High Resolution PC Input Video Input Audio Input Y/C Input OSD with Multiple Languages Siemens Building Technologies Fire Safety & Security Products Product Description 10.2006... -
Page 6: Work Safety Information
Upon completion of any service or repairs, ask the technician to perform safety checks to determine that the equipment is in safe operating condition. WARNING Siemens Building Technologies Fire Safety & Security Products Do not modify the monitor power plug in any way. -
Page 7: Standards And Guidelines
89/336/EEC & LVD 73/23/EEC Standard used for showing compliance with the essential requirements of the device: EN 55022 EN 61000-3-2 EN 61000-3-3 EN 50130-4 EN 55024 EN 60950-1 Siemens Building Technologies Fire Safety & Security Products Standards and Guidelines 10.2006... -
Page 8: Technical Data
Audio Input Speaker User’s control Plug & Play Power Management Regulation Siemens Building Technologies Fire Safety & Security Products CMTC1720 17” TFT color LCD panel 431 mm diagonal 337.9 mm (H) x 270.3 mm (V) 0.264 mm x 0.264 mm... -
Page 9: Setting Up The Monitor
Connect the Monitor to your Computer Connect the Monitor to the Video Source Siemens Building Technologies Fire Safety & Security Products Check the attachment of monitor. There is power cord, power adapter user's manual and PC signal cable. -
Page 10: Connection And Buttons
Connection and Buttons Connection and Buttons Connection Buttons Siemens Building Technologies Fire Safety & Security Products DC 12V input DVI-I(PC) input CVBS input S-VIDEO input AUDIO input Menu/Exit Enters the OSD to adjust main menu. This button is also used to return to the previous menu or submenu. -
Page 11: Adjusting The Osd Screen (Dvi And Pc)
This option is used to adjust the image contrast. VOLUME This option is used to adjust the sound volume. Siemens Building Technologies Fire Safety & Security Products Press the Menu/Exit button For adjusting the OSD screen the following options are available: Fig. -
Page 12: Configuration Of The Phase, Clock, Positioning Of Image
This option is used to adjust the vertical position of the image. PHASE The option is used to reduce horizontal striping in the screen image. CLOCK The option is used to reduce vertical striping in the screen image. Siemens Building Technologies Fire Safety & Security Products 10.2006... -
Page 13: Options For Osd Setup
If there is no operation or automatic adjustment within the set time, the screen will be restart automatically. Exit the OSD Main Menu The EXIT MENU provides the user to exit the OSD without waiting for timeout. Siemens Building Technologies Fire Safety & Security Products English, French,... -
Page 14: Adjusting Osd Screen (Av Equipment)
NOTE If the Menu/Exit button is not pressed, the adjusting screen will automatically disappear after a preset time (in seconds) and the settings will not be saved. Siemens Building Technologies Fire Safety & Security Products Press the Menu/Exit button For adjusting the OSD screen the following options are available: Fig. -
Page 15: Adjusting Brightness, Contrast, Volume
This is option used to adjust the clarity of the screen image. LINE LOCK This is option used to on/off the monitor to lock the line frequency. Siemens Building Technologies Fire Safety & Security Products Adjusting OSD Screen (AV Equipment) -
Page 16: Options For Osd Setup
(in seconds) and the monitor will not be reset to the factory default settings. Exit the OSD Main Menu The EXIT MENU provides the user to exit the OSD without waiting for timeout. Siemens Building Technologies Fire Safety & Security Products English,... -
Page 17: Keyword Index
Adjusting the OSD Screen (DVI and PC) 11 Buttons 10 CE Information 7 Connect to the Video Source 9 Connect to your Computer 9 Siemens Building Technologies Fire Safety & Security Products Connection 10 Exit the OSD Main Menu 13, 16 Guidelines 7... - Page 18 Keyword index Siemens Building Technologies Fire Safety & Security Products 10.2006...
- Page 20 Issued by Siemens Building Technologies Fire & Security Products GmbH & Co. oHG D-76181 Karlsruhe www.sbt.siemens.com Document no. A24205-A336-B334 Edition 10.2006 © 2006 Copyright by Siemens Building Technologies AG Data and design subject to change without notice. Supply subject to availability.
