Mounting CDU + Shunt
Always disconnect the battery negative cable first before installation.
Connection diagram of single battery setup
¹⁾ Normally open or normally closed potential free relay contact.
Contact ratings 5A@30Vdc or 1A@70Vdc
²⁾ Battery temperature sensor is optional. Sensor kits are offered in
lengths of 3m and 10m
³⁾ Besides (future-) accessories, the additional QLINK port can also be
used to connect to a second CDU
Always connect the battery negative cable last when the installation has been completed.
INSTALLATION GUIDE
Please read this document very carefully to avoid
battery monitor malfunction and/or fire hazards!
Connection diagram of a multi battery setup

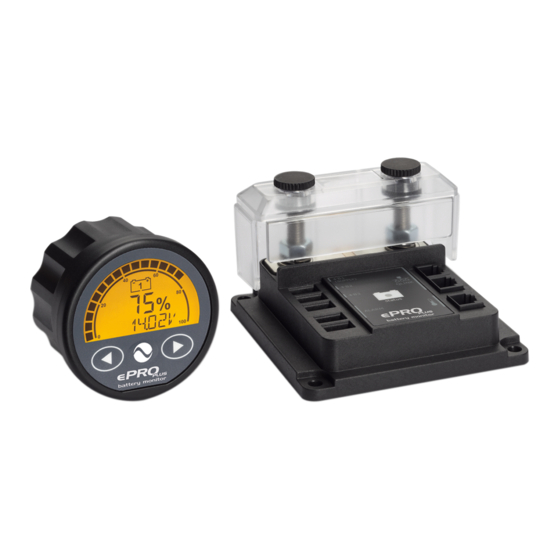

Enerdrive ePRO Plus Battery Monitor Installation Guide (Rev. 1.2)
Advertisement
Table of Contents
Related Manuals for Enerdrive ePro Plus
Summary of Contents for Enerdrive ePro Plus
-
Page 1: Installation Guide
³⁾ Besides (future-) accessories, the additional QLINK port can also be used to connect to a second CDU Always connect the battery negative cable last when the installation has been completed. Enerdrive ePRO Plus Battery Monitor Installation Guide (Rev. 1.2) -
Page 2: Installation Warnings
Placement of rubber covers Battery configurations Please see the above illustration on how to cover unused ports of the active shunt module. A selection of rubber cover parts is included in the package. Enerdrive ePRO Plus Battery Monitor Installation Guide (Rev. 1.2)
