SEARS
OWNERS
MANUAL
HOME
CLEANING
SYSTEM
MODEL NO.
175.8670290
CAUTION:
Read Instructions
and Rules for
Safe Operation
Carefully
For Household
Use Only
Save this
Manual for
Future Reference
i

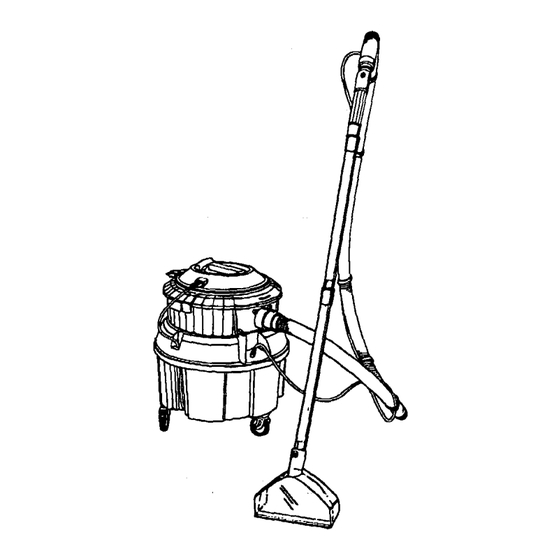

Kenmore
HOME CLEANING. SYSTEM
, INTRODUCTION
• ASSEMBLY
• OPERATION
• MAINTENANCE
• REPAIR PARTS
SEARS,
ROEBUCK
AND CO., Dept. D/731 CR-W, Sears Tower, Chicago, IL 60684
661654-146
(06SO)
Rev.
10Ooo)
_]NTED
IN U.S.A,
Advertisement
Related Manuals for Kenmore 175.867029
Summary of Contents for Kenmore 175.867029
- Page 1 Rules for Safe Operation Carefully For Household Use Only Save this Manual for Future Reference SEARS, ROEBUCK AND CO., Dept. D/731 CR-W, Sears Tower, Chicago, IL 60684 661654-146 (06SO) Rev. 10Ooo) Kenmore HOME CLEANING. SYSTEM , INTRODUCTION • ASSEMBLY • OPERATION •...
- Page 2 Do not use with damaged cord or plug. If cleaner is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return it to a Sears Service Center. Do not pull or carry by cord, nor use cord as a handle, nor close a door on cord, nor pull cord around sharp edges or comers.
- Page 3 Assembly ... Operation ... When used for private household purposes, if within one year from the date of purchase, this vacuum cleaner fails due to a ' defect in matehaJ or workmanship, RETURN IT TO THE NEAREST SEARS SERVICE CENTER/DEPARTMENT UNITED STATES, and Sears wig repair it, free of charge.
- Page 4 ASSEMBLY OF RECOVERY TANK AND SOLUTION TANK See Figure 2 1. Place Recovery Tank into Solution Tank (align the word "VACUUM" on Recovery Tank with =VACUUM" on Solution Tank) and secure with Metal Latch. 2, Insert the plug onthe Short Cord from the Solution Tank into the Recovery Tank Power Head.
- Page 5 1. Vacuum carpet 11o remove loose dirt before using Cleaner. 2. To remove stains and ground in dirt present in heavy traffic areas of the carpet, spray or rub Sears Heavy Traffic Pro- Treatment (82833) into carpet before u_ing Cleaner. Follow directions on the bottle.
- Page 6 TEST FOR SOLUTION SPRAY See FTgure 6 1. Hold Floor Nozzle above floor level. 2. Pull Solution Release Trigger on Angled Wand. 3. Observe Floor Nozzle to make sure oleaning solution is being sprayed evenly. (see DETAIL _A") NOTE: If solution is not being sprayed evenly, refer to Trouble Shooting Chad.
- Page 7 WHEN TO EMPTY RECOVERY See Figure 9 During normal operation, your cleaner may stop recovering solution from your carpet. When this occurs there are three check points to alert you: 1. An increase in motor noise. 2. No solution visibly being recovered by the floor nozzle. 3.
- Page 8 TO EMPTY THE SOLUTIONTANK See Figure 11 When (:leaning is completed, both the Recovery Tank and the Solution Tank should be emptied prior to storage. Empty the Recovery Tank as described earlier. There are three methods of emptying the Solution Tank. Method 1 : 1.
- Page 9 The Cleanmore Spraymate has a motorized beater brush which is especially good for difficult to clean areas of heavy traffic. ATTACHMENTS may be purchased or ordered through your nearest Sears store. comes with each attachment set. A'I-rACHMENT • Fig. 14...
- Page 10 .j,i 5. Spray connections leak. "If the "Possible Solutions" to "Problem,s"listedin the chart do not correctthe problem, take your cleaner to a Sears Sen/ice Center for professional service, Repairs not listed in this chart require professional knowledge of this model cleaner and could result In safety hazards and pemonal injury' if not made by a qualified Sea_ Service Technician.
- Page 11 SEARS HOME CLEANING SYSTEM -- MODEL 175.8670290 SEE PAGE 13 FOR F.XPLODED NEW SEE PAGE 12 FOR EXPLODED VIEW_...
- Page 12 SEARS HOME CLEANING SYSTEM --- MODEL 175,8670290...
- Page 13 SEARS HOME CLEANING PART NO, 642315-012 64,L125-OO7 642600-039 641768-004 641838-001 643741-002 643509-001 642149-004 641843-010 642367-006 644548-001 642367-004 643909-902 642367-004 642406-016 641857-012 641866-039 640145-005 643584-000 642405-001 643579-002 642313-000 662252-001 642046-016 968702-007 641798-002 fl42627-001 642470-006 ' 640218-006 706362-319 644773-008 642603-061 643565-016 643561-000...
- Page 14 SEARS HOME CLEANING SYSTEM -- MODEL 175.8670290 l... 1,5 14 ----2O...
- Page 15 SEARS HOME CLEANING PART NO. 662257-001 862262-001 644037_002 644848-006 643731-005 644038-003 644773-005 644773-007 643502-009 643570-09.3 661404*0O3 663324-001 644038-001 643572-007 662266-001 662266-002 662264-001 662263-001 643186_18 643571-013 644159-003 643076-009 642458-005 643737--013 663324-002 661654-146 SYSTEM--- MODEL t75.8670290 DESCRIPTION Angled Wand w/Key # 2, 14...
- Page 16 THE FOLLOWING INFORMATION: • PARTNUMBER • MODEL NUMBER 175.8670290 All parts listed may be ordered from any Sears Service Center. If the parts you need are not stocked locally, your order will be electronically transmitted to a Sears Repair Parts Distribution Center for handling.
