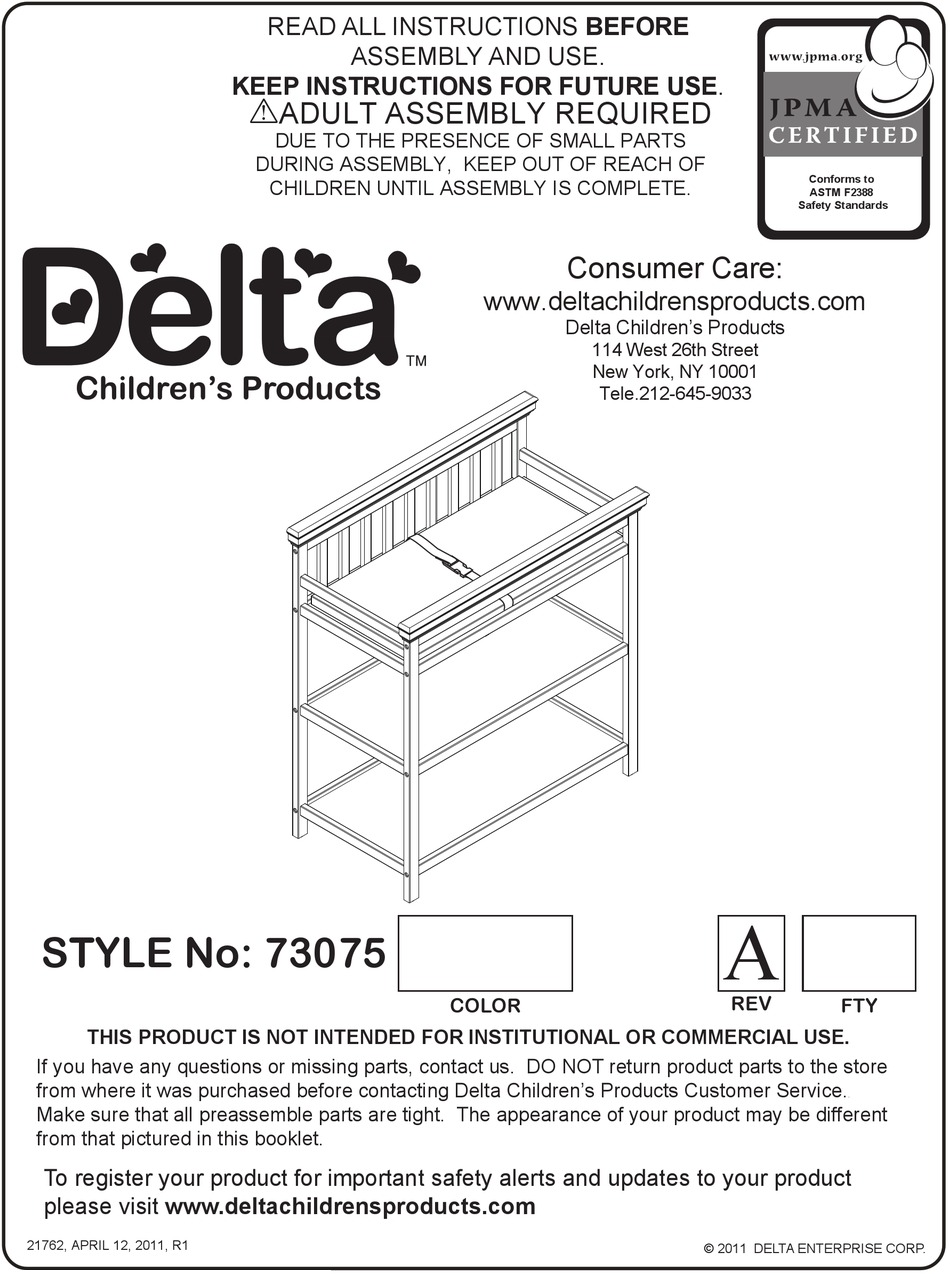

STYLE No: 73075
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
If you have any questions or missing parts, contact us. DO NOT return product parts to the store
from where it was purchased before contacting Delta Children's Products Customer Service.
Make sure that all preassemble parts are tight. The appearance of your product may be different
from that pictured in this booklet.
To register your product for important safety alerts and updates to your product
please visit www.deltachildrensproducts.com
21762, APRIL 12, 2011, R1
READ ALL INSTRUCTIONS BEFORE
ASSEMBLY AND USE.
KEEP INSTRUCTIONS FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED
DUE TO THE PRESENCE OF SMALL PARTS
DURING ASSEMBLY, KEEP OUT OF REACH OF
CHILDREN UNTIL ASSEMBLY IS COMPLETE.
Consumer Care:
www.deltachildrensproducts.com
Delta Children's Products
114 West 26th Street
New York, NY 10001
Tele.212-645-9033
COLOR
Conforms to
ASTM F2388
Safety Standards
A
REV
FTY
.
© 2011 DELTA ENTERPRISE CORP.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 73075 and is the answer not in the manual?

Questions and answers

Related Manuals for Delta Childrens Products 73075

Summary of Contents for Delta Childrens Products 73075

  • Page 1 114 West 26th Street New York, NY 10001 Tele.212-645-9033 STYLE No: 73075 COLOR THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE. If you have any questions or missing parts, contact us. DO NOT return product parts to the store from where it was purchased before contacting Delta Children’s Products Customer Service.

  • Page 2: Part

    WARNING CHANGING TABLE Fall hazard - to prevent death or serious injury, always keep child within arm’s reach. Read all instructions before use of the changing table. KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE USE. Inspect the changing table periodically. Do not use the changing table if it is damaged or broken. Contact Delta Children’s Products with any questions.

  • Page 3: Table Of Contents

    PARTS: MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT. C. CAP RAIL x 2 PART # 21753 D. UPPER BACK RAIL x 1 PART # 21754 A. LEFT SIDE x 1 B. RIGHT SIDE x 1 PART # 21751 PART # 21752 E.

  • Page 4: Part

    PARTS: HARDWARE KIT IS PART # 21761 FOR COLOR 615. SEE FRONT COVER. M. M6 x45 mm BOLT x 20 No drills necessary. Do not use power screwdriver. N. M6 x20 mm BOLT x 2 Phillips Screwdriver P. Φ4x30 mm METAL PIN x 6 Pliers or Adjustable Wrench Required for Assembly...

  • Page 5: Part

    SECTION 1: CHANGING TABLE ASSEMBLY STEP 1 PARTS AND TOOLS REQUIRED TO COMPLETE STEP D. UPPER BACK RAIL x 1 M. M6 x45 mm BOLT x 8 F. MIDDLE FRONT RAIL x 1 (WITH TWO HOLES FOR SHELF BRACE) M4 ALLEN WRENCH G.

  • Page 6: Part

    SECTION 1: CHANGING TABLE ASSEMBLY STEP 2 PARTS AND TOOLS REQUIRED TO COMPLETE STEP H. TOP SHELF x 1 J. BOTTOM SHELF x 2 FROM STEP 1 LAY THE LEFT SIDE ON THE FLOOR, RAILS UP. SLIDE THE TOP SHELF (PART H) IN THE GROOVES ON THE UPPER BACK RAIL AND MIDDLE FRONT RAIL, INTO THE GROOVE ON THE LEFT SIDE, SLIDE (2) BOTTOM SHELVES (PART J) IN THE GROOVES ON THE BOTTOM RAILS, INTO THE GROOVES ON THE LEFT SIDE AS SHOWN.

  • Page 7: Part

    SECTION 1: CHANGING TABLE ASSEMBLY STEP 3 PARTS AND TOOLS REQUIRED TO COMPLETE STEP M. M6 x45 mm BOLT x 8 M4 ALLEN WRENCH SUPPLIED FROM STEP 2 B. RIGHT SIDE x 1 ATTACH THE RIGHT SIDE (PART B) TO THE ASSEMBLY FROM STEP 2 WITH (8) M6x45 mm BOLTS (PART M) USING THE M4 ALLEN WRENCH AS SHOWN.

  • Page 8: Part

    SECTION 1: CHANGING TABLE ASSEMBLY STEP 4 PARTS AND TOOLS REQUIRED TO COMPLETE STEP U. SHELF BRACE x 2 PHILLIPS SCREWDRIVER (NOT SUPPLIED) T. 15mm SCREW x 4 FROM STEP 3 ATTACH (2) SHELF BRACES (PART L) TO THE RAILS USING (4) 15mm SCREWS (PART T). TIGHTEN WITH THE PHILLIPS SCREWDRIVER.

  • Page 9: Part

    SECTION 1: CHANGING TABLE ASSEMBLY STEP 5 PARTS AND TOOLS REQUIRED TO COMPLETE STEP M. M6 x45 mm BOLT x 4 C. CAP RAIL x 2 M4 ALLEN WRENCH P. Φ4x30 mm METAL PIN x 6 FROM STEP 4 SUPPLIED ATTACH (2) CAP RAILS (PART C) TO THE ASSEMBLY FROM STEP 4 WITH (6) Φ4x30 mm METAL PIN (PART P) AND (4) M6x45 mm BOLTS (PART M) USING THE M4 ALLEN WRENCH AS SHOWN.

  • Page 10: Part

    SECTION 1: CHANGING TABLE ASSEMBLY STEP 6 PARTS AND TOOLS REQUIRED TO COMPLETE STEP N. M6 x20 mm BOLT x 2 S. NUT x 2 M4 ALLEN WRENCH SUPPLIED R. NYLON WASHER x 4 PLIERS OR ADJUSTABLE K. RESTRAINT HARNESS x 1 WRENCH (NOT SUPPLIED) FROM STEP 5 ALIGN THE HOLE IN THE END OF THE STRAP OF THE RESTRAINT HARNESS (PART K) WITH THE HOLE...
  • Page 11 SECTION 1: CHANGING TABLE ASSEMBLY STEP 7 PARTS AND TOOLS REQUIRED TO COMPLETE STEP L. FOAM PAD x 1 FROM STEP 6 PLACE THE FOAM PAD (PART L) ONTO THE TOP SHELF (PART H) ON TOP OF THE ATTACHED STRAP FROM STEP 6, BE SURE THE BUCKLE ON THE STRAP IS OVER THE PAD AS SHOWN.
  • Page 12 SECTION 1: CHANGING TABLE ASSEMBLY FINAL RESTRAINT HARNESS SYSTEM USE: . PLACE THE INFANT ON THE CHANGING TABLE FOAM PAD. . POSITION THE RESTRAINT HARNESS OVER THE MIDDLE OF THE INFANT’S TORSO AND INSERT THE BUCKLED ENDS INTO EACH OTHER UNTIL THE LOCK SHUT WITH A CLICK.

  • Page 13: Part

    Consumer Care: www.deltachildrensproducts.com Delta Children’s Products 114 West 26th Street New York, NY 10001 Tele.212-645-9033 Warranty: This Delta Product is warranted to be free from defects for a period of 90 days from the date of purchase under normal use. This warranty extends only to the original retail purchaser and is valid only when supplied with proof of purchase, or if received as a gift, when the registration is on file with Delta.
