Installation Instructions; Install Brackets - Coolaroo Exterior Roller Sun Shade Installation Instructions Manual

Your shade comes standard with the chain on the right side of the shade (Fig. 1) and ready to
be mounted on the inside or outside of your window frame. If you purchased a custom shade,
or intend to keep your shade with the standard settings, you may skip this section and proceed
to the installation instructions.
If you want to move the chain to the left side of the shade or you want to hang your shade from
the top of the window (or ceiling), you will need to make a few simple changes to your shade
before proceeding to the installation instructions. Refer to the Alternate Clutch Setup
section of the manual for instructions on how to make these changes.
Refer to the front page of this manual for help identifying the various components of the shade.
imPortant: The screws included in your hardware kit are for use with wood only. See your
dealer for mounting recommendations when attaching your shade to any other material.

instaLLation instructions

cLotH screW-to-screW
WidtH measurement
72 in. 73.25 in.
(1.83 m) (1.86 m)
96 in. 97.25 in.
(2.44 m) (2.47 m)
120 in. 121.25 in.
(3.05 m) (3.08 m)
Fig. 2 (the above measurements are for stock shades)
Idle UnIt bracket
Fig. 3
Fig. 4
Snap end plUg
Into end UnIt
Fig. 5
oVeraLL WidtH
aPProximate
(Bracket-to-
WeiGHt
Bracket)
74.75 in. 7 lb.
(1.9 m) (3 kg)
98.75 in. 9 lb.
(2.51 m) (4 kg)
122.75 in. 11 lb.
(3,12 m) (5 kg)
clUtch
UnIt
bracket
clUtch end plUg

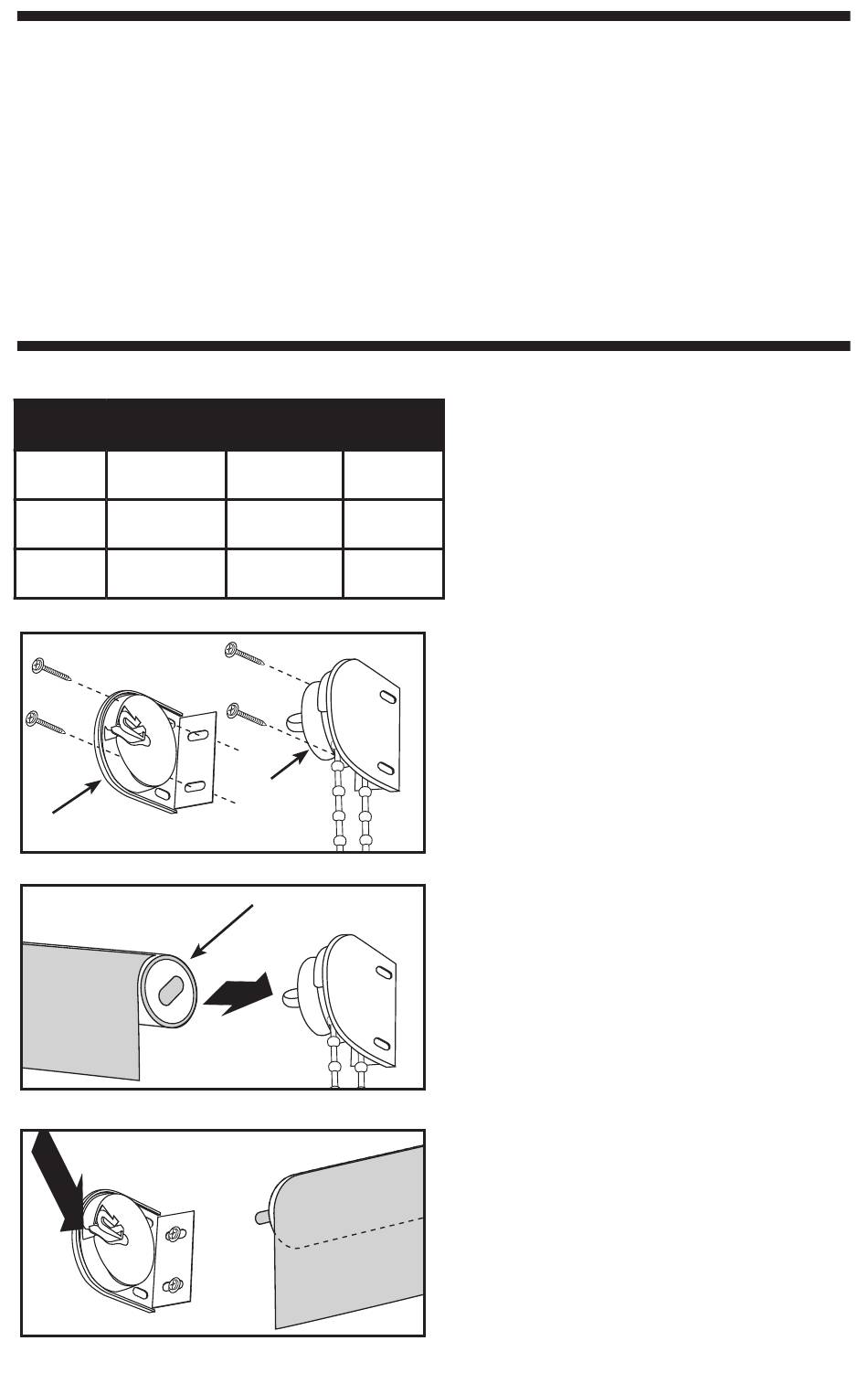

1. mark the Holes
• For stock shades, use (Fig 2) to determine the
placement of your screws.
• For custom shades, mark holes 1/2" less than
overall (bracket-to-bracket) measurement at
each end.

2. install Brackets

Install the Clutch and Idle End Brackets
(Fig 3). The Clutch Unit Bracket will be
on the right side, and the Idle End Unit
Bracket should
standard installation.
do not tighten screws completely yet.
3. install the shade.
First, insert the Clutch Plug into the Clutch
Unit (Fig. 4).
Then insert the Idle End Plug into the
Idle End Unit, and snap the Idle End Plug
securely into place (Fig. 5).
With the shade in place, adjust the brackets
so they fit snugly on each end of the shade.
imPortant:
now go back and tighten the Bracket
screws completely.
be on the left for
