Sanyo CE52LH1R Instruction Manual

Sanyo lcd monitor user manual
Hide thumbs Also See for CE52LH1R:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

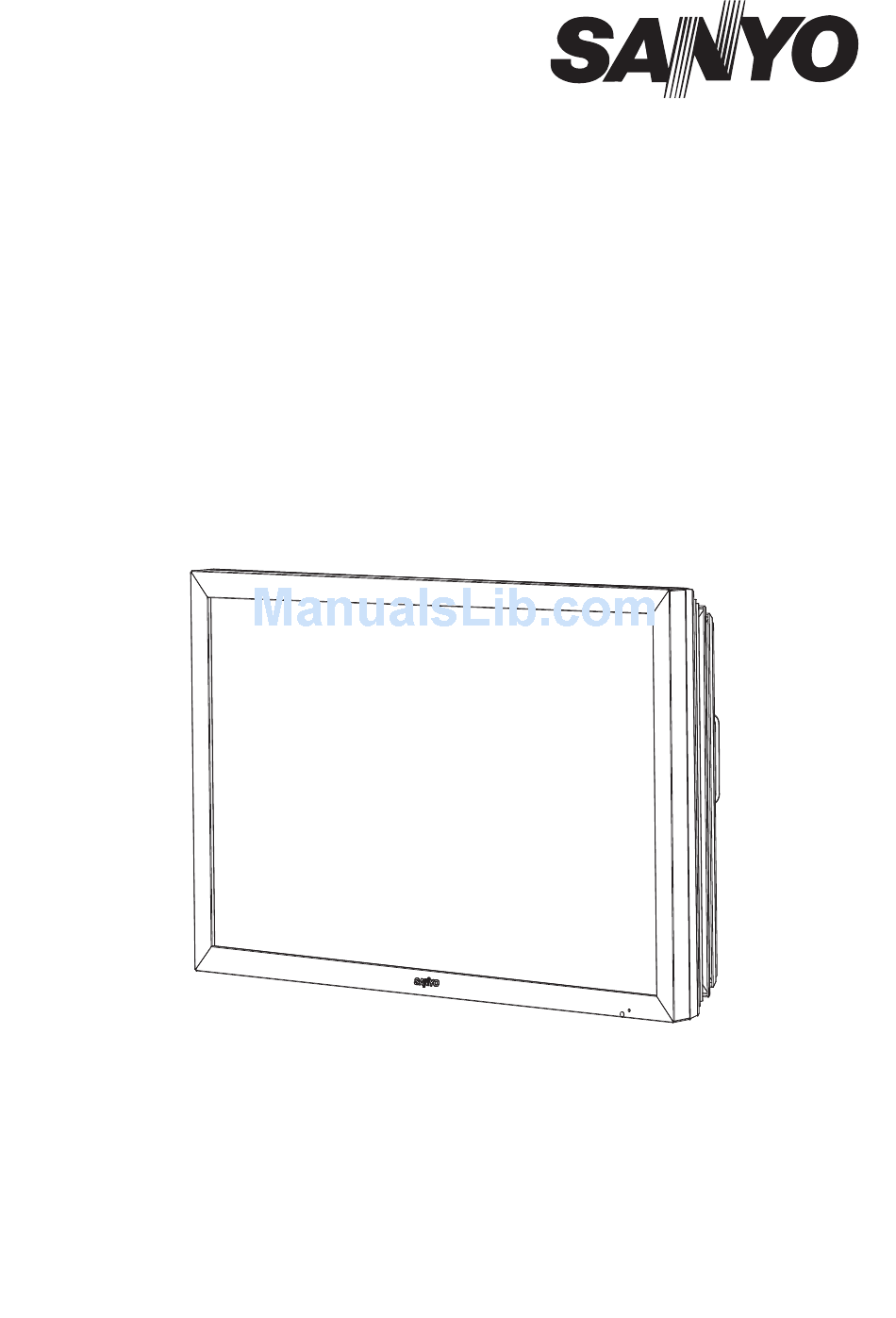

Instruction Manual
52LH1R
LCD Monitor
CE
Please read this Instruction book before using your LCD monitor. We wish you many hours of pleasure from your new LCD monitor.

Advertisement

Table of Contents
loading

Related Manuals for Sanyo CE52LH1R

Summary of Contents for Sanyo CE52LH1R

  • Page 1 Instruction Manual 52LH1R LCD Monitor Please read this Instruction book before using your LCD monitor. We wish you many hours of pleasure from your new LCD monitor.

  • Page 2: Safety Precautions

    CAUTION: Please read and retain for your safety. This unit has been designed and manufactured to assure your personal safety, but improper use can result in potential electric shock or fire hazards. In order not to defeat the safeguards incorporated in this monitor observe the following basic rules for its installation, use and servicing.
  • Page 3 Adjust only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage. This will often require extensive work by a qualified technician to restore the monitor to normal operation. Important recycling information. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

  • Page 4: Ac Power Cord Requirement

    General This End-User License will be governed by laws of England and the User may only bring claims in the English Courts and SANYO shall be entitled to bring a claim in the courts of any jurisdiction. This End-User License is governed by the laws of the State of California.

  • Page 5: Installation

    Step : 1 Mains Connection Connect the display unit to VGA, BNC and Scart connector as required. PJ-Net 1. Connect the in-line power connector to the connector attached to the LCD monitor as shown above. 2. Connect the power cord of the LCD monitor to a wall outlet. As this product does not have a mains On/Off switch, please ensure your mains plug is easily accessible.

  • Page 6: Remote Control Battery Installation

    Input To switch input source from AV1, AV2, AV3, PCor DVI mode. Wide To select the screen mode Full, Zoom, Zoom [Caption-IN], Normal, Natural wide,. Refer to page 11. Menu To enter and exit the main menu, and sub menu. Level Up/Down To enter sub menus.

  • Page 7: Controls And Menus

    Controls and Menus 1. The LCD display has a Standby light to show there is power. Switching into/from standby mode Video / S-Video The Standby mode is used for switching the LCD monitor off for short periods of time. In standby mode the monitor is switched off but is still receiving mains power.

  • Page 8: Sound Menu

    Picture menu Advanced settings Use the 5 or 6 button to select Advanced settings and press the 1 or 2 button to enter the sub menu as follows. DCDi(Directional Correlational Deinterlacing) is used to process moving angled edge in deinterlacing to get the smoothest and most natural image.

  • Page 9: Menu Operation

    Setup menu PIP/POP Setup Use the 5 or 6 button to select PIP/POP Setup and press the 1 or 2 button to enter the sub menu. PIP/POP Mode: Using the 1 or 2 button select the most suitable mode PIP1, PIP2, POP or Off. (Please refer to page 12.) When Mode is set to Off, Sub Source and PIP Position will not work.

  • Page 10: Installation Mode

    Installation Mode Installation Mode Temperature Error This LCD monitor allows you to set up the following: SETTING PROCEDURE 1 . Press and hold the GREEN button on the remote control for 4 seconds. (Installation Mode will appear) 2. Use the 5 or 6 button to highlight each option, use the 1 or 2 button to adjust each option.

  • Page 11: Selecting Of Picture Size

    Selecting of picture size Select screen size among “Full”, “Zoom”, “Zoom(Caption-IN)”, “Normal” and “Natural wide” by pressing WIDE button on the Remote Control. Full Provides image to fit width of screen by expanding image width uniformly. This function can be used for enjoying a squeezed video signal with wide video aspect ratio of 16 : 9 screen.

  • Page 12: Pip/Pop Operation

    PIP/POP Operation Using this function, you can enjoy a DVI or Network program and an image (AV1, AV2, AV3 or PC input) at the same time. Press the ON/OFF button on the Remote Control repeatly to select PIP1, PIP2, POP or OFF mode. During the PIP/POP mode, press the Main/Sub Picture Swap button will switch the location for main and sub picture.

  • Page 13: Specifica Tions / Helpful Hints

    Specification Common specification Power source 120V 50Hz / 60Hz Colour system PAL / NTSC / NTSC4.43/ SECAM AV terminal AV1: Scart CENELEC Standard Input: Composite video, RGB (5V RGB with 5V sync to pin 14) and audio-L/R Output: composite video and audio L/R AV2: BNC Input: RGB, H and V / Y, Pb, Pr and audio L/R Output: RGB, H and V / Y, Pb, Pr...

  • Page 14: Pc/Dvi-D / Component Signal Support Timing List

    PC/DVI-D / COMPONENT SIGNAL SUPPORT TIMING LIST Component signal suppo rt timing Resolution Horizontal Vertical frequency frequenc y ( KHz) 720x480 15.735 720x576 15.625 720x480 31.25 720x576 31.25 1280x720 45.00 1152_900 1280x720 37.50 1152_900 1920x1080 33.75 1152_900 1920x1080 28.13 1920x1080 31.25 1280_1024 Dot Clock...
  • Page 16 Part No. 1KA6P1P0391-- Printed in U.K.
