Options for ABB drives, converters and inverters
Quick installation and start-up guide

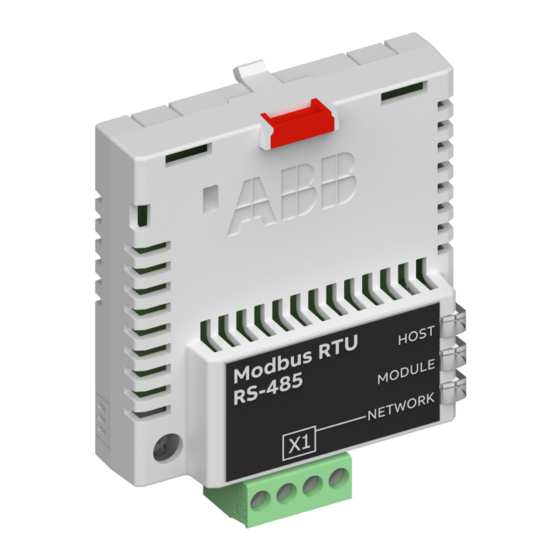

FSCA-01 RS-485 adapter module
Safety instructions
WARNING! Obey the safety instructions. If you ignore them, injury or death, or damage to the
equipment can occur. See the user's manual.
Mechanical installation
1. Pull out the lock.
2. Install the module carefully to an option
module slot of the drive. See the drive
hardware manual.
3. Push in the lock.
4. Tighten the screw to torque 0.8 N·m using
a Torx TX10 screwdriver.
WARNING! Do not use excessive force,
or leave the screw too loose. Over-
tightening can damage the screw or
module. A loose screw decreases the EMC
performance, and can even cause an operation
failure.
Electrical installation
Layout of the module
2
3
1
5
4
1
No.
Description
1
Lock
2
Mounting and grounding screw
3
Bus connector [X1]
4
Termination jumper [J2]
5
Diagnostic LEDs
3
4
