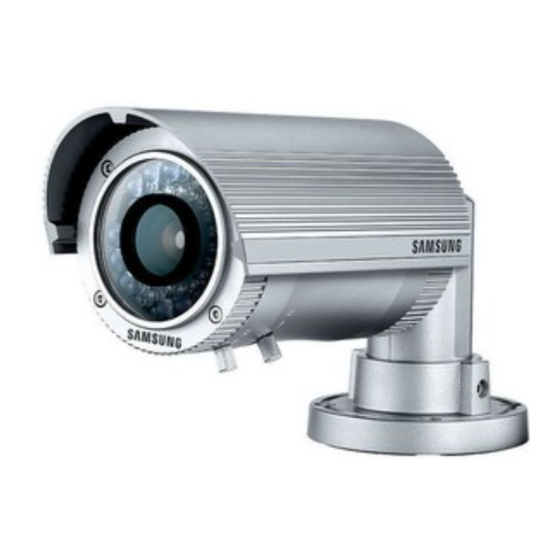

Samsung SCC-B9373 Operating Instructions Manual
Day&night ir led camera
Hide thumbs
Also See for SCC-B9373:
- Specification sheet (1 page) ,
- Operating instructions manual (60 pages) ,
- Operating instructions manual (60 pages)
Table of Contents
Related Manuals for Samsung SCC-B9373
Summary of Contents for Samsung SCC-B9373
-
Page 1: Operating Instructions
DAY&NIGHT IR LED CAMERA operating instructions imagine Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register the possibilities SCC-B9373... -
Page 2: Safety Precautions
Continued use in such a condition may cause fire or electric shock. 9. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.) 10. -
Page 3: Fcc Statement
CAUTION 1. Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibration or magnetic interference. 2. Do not install in a location subject to high temperature (over 122°F), low temperature (below 14°F), or high humidity. -
Page 4: Important Safety Instructions
important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Table Of Contents
contents FEATURES THINGS TO KEEP IN MIND DURING INSTALLATION AND USE NAME OF EACH PART INSTALLATION TROUBLESHOOTING SPECIFICATIONS DIMENSION Features Things to keep in mind during installation and Name of each part Camera Installation Troubleshooting Specifications Dimension contents... -
Page 6: Features
features 1/3” Sony super HAD CCD • Resolution: 540TVL (Color), 570TVL (B/W) • Minimum Scene Illumination 0 Lux (with LED On) • IR range Distance up to 70m • Color & B/W Auto switchable by Photocell and Sensitivity • Built-in 6~50mm / F1.6 Day & Night Vary-focal DC Auto Iris Lens •... -
Page 7: Name Of Each Part
name of each part ZOOM LEVER RING GUIDE BOLT SERVICE VIDEO PORT PAN TILT ADJUSTMENT FOCUS LEVER DC LEVEL VOLUME SCREW CAP BRACKET name of each part... -
Page 8: Camera Installation
installation CAMERA INSTALLATION Zoom and Focus Lever • - Loosen the Levers and adjust Zoom/Focus After controlling, tighten each lever. 1. Zoom Lever - To widen the viewing angle, turn the “Zoom Lever” to “W”(Wide) - To obtain a closer view, turn this Lever to “T” (Tele). 2. -
Page 9: Troubleshooting
6. Bracket Loosen the Pan/Tilt bolts of the bracket to adjust the camera direction. In reference to page 3. 7. Connecting to Monitor and Power - Set the impedance switch to the 75Ω standard position unless other equipment is looped out of the monitor. -
Page 10: Specifications
specifications ITEM Image Sensor Effective Pixels Scanning System Scanning Frequency Resolution Shutter Speed S/N Ratio Sync. System Min. Illumination Video Output Lens Power Supply(*) Power Consumption Operating Temp. Operational Humidity Dimensions (*) Must use regulated & specified power supply. specifications NTSC 1/3"... -
Page 11: Dimension
dimension dimension...
