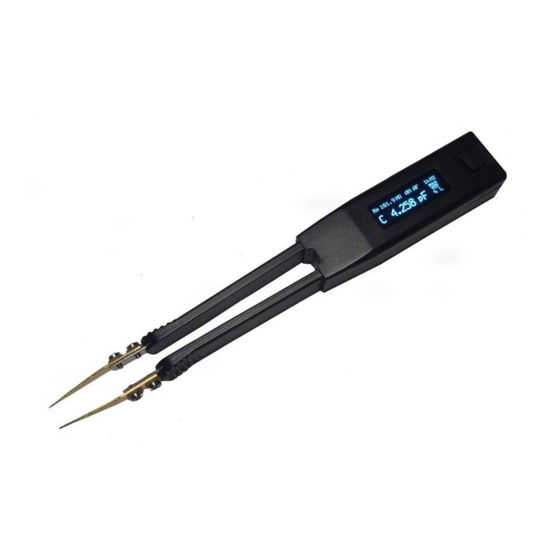

Smart Tweezers Colibri ST5C Manual

MODEL: Colibri ST5C
Measuring with Colibri

Press the control button to turn on.

The device powers off automatically
if it not operational for 60 seconds.
Note: If the frequency is forced to 10KHz
the device might not power off automatically.

To set both test frequency and measurement
function to AUTO press button and hold it for
about 2 seconds.
AM and AF symbols appear on the display

To change measurement function
press button.

To change test frequency press button and
hold it for about 1 second
Note: Set C mode and 100Hz to measure
large value capacitors reliably.
Note: Set L mode and 10Khz to measure
small value inductors reliably.
Control Diagram
PRESS TO WAKE UP
PRESS & HOLD LONGER THAN 2 SEC
TO SET MODE AND TFREQ TO AUTO
PRESS SHORTER THAN 1SEC
AUTO AM
RES
MODE IND
CAP
ESR
PRESS & HOLD LONGER THAN 1 SEC
AUTO AF
10kHz
TEST
FREQ 1 kHz
100Hz
DISCHARGE CAPACITOR BEFORE MEASUREMENTS
®
