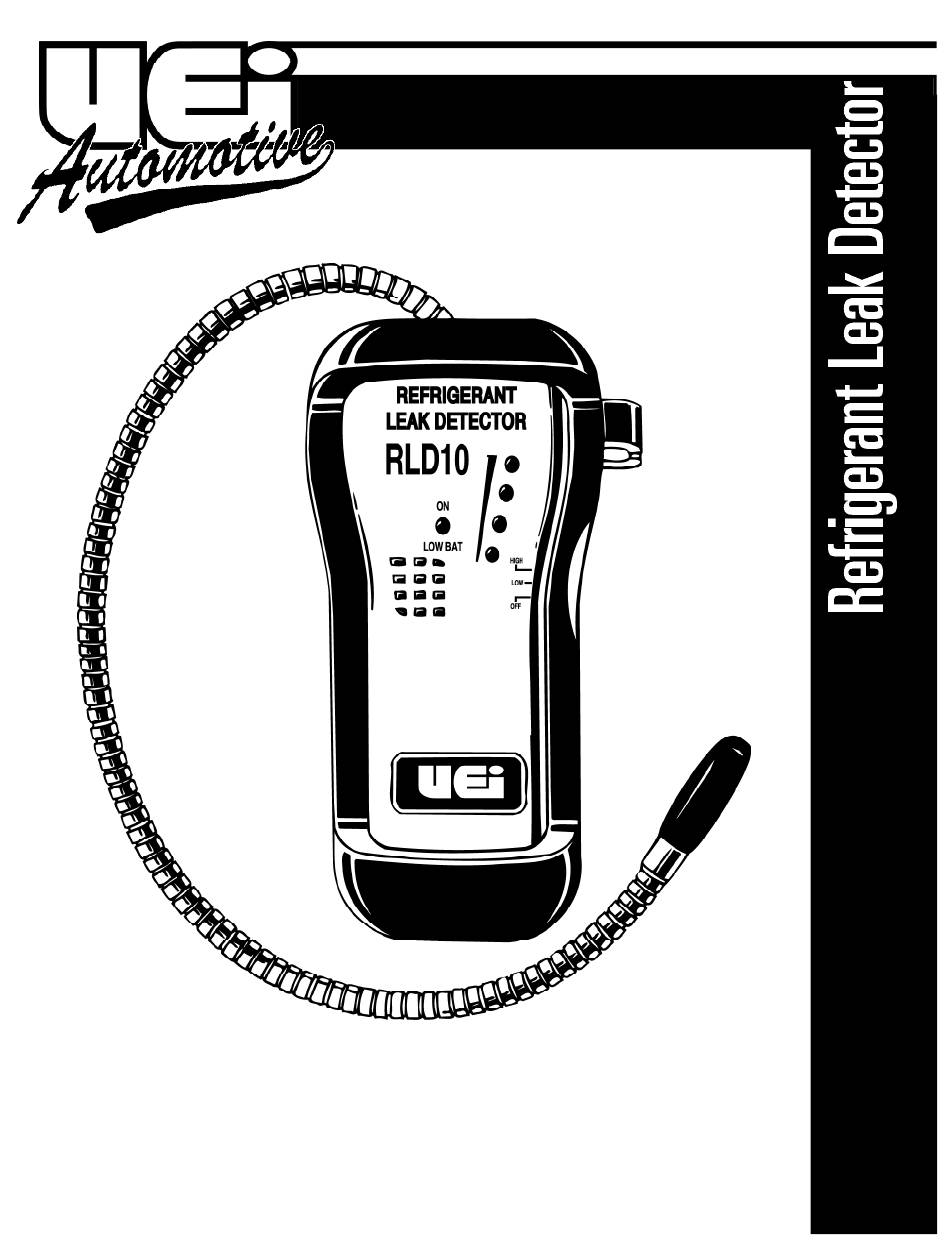

- Page 1 INSTRUCTION MANUAL RLD10 1-800-547-5740 • Fax: (503) 643-6322 www.ueiautomotive.com • email: info@ueiautomotive.com...
-
Page 2: Controls And Indicators
International Symbols Operating Instructions Functional Description The RLD10 runs through a brief warm-up and self-calibration when it is initially turned on. Typically, you can observe the following sequence of events when the unit is turned on in fresh air: 1. The power-on indicator light glows steadily green*. - Page 3 Your RL D 10 can operate in either high sensitivity or low sensitivity mode. your instrument: Begin using your RLD10 with the power/mode slide switch in its • Calibrate your instrument annually to ensure it meets original uppermost position. This is the instrument’s most sensitive position.
- Page 4 .4 ounces per year. To ensure your instrument is performing at its peak, send it to the UEi factory or a qualified S p e c i f i c a t i o n s instrument calibration facility for annual certification.
-
Page 5: Physical Characteristics
B. Current: 24 mA C. Loaded high voltage: 2400V ±50V (loaded with 100.0 M Ohms Four tic-rate scaled LED indicators Visual level indicators changing from green to yellow to light red to red (indicating relative, not specific quantities) RLD10-MAN P. 4... -
Page 6: Refrigerant Leak Detector
Any implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the express warranty. UEi shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expenses or economic loss.
