ITEM
SHIMANO
DESCRIPTION
CODE NO.
NO.
1

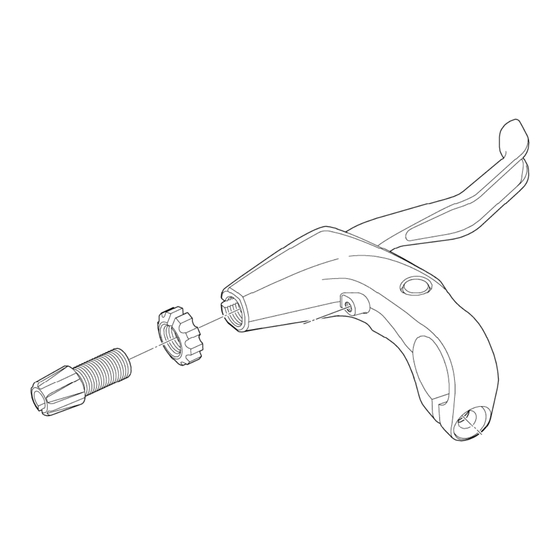

Cable Adjusting Bolt & Nut
Y8VB98010
2
Y6BX87000
Reach Adjusting Bolt (M4x 10.3)
3
Clamp Bolt (M6x 14.8)
Y8U806000
A: Same parts.
B: Parts are usable, but differ in materirals, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
Specifications are subject to change without notice.
TIAGRA Brake Lever
BL-4600
INTERCHANGEABILITY
A
A
A
Mar.-2011-3141
©
Shimano Inc. A
Advertisement
Related Manuals for Shimano BL-4600
Summary of Contents for Shimano BL-4600
- Page 1 Reach Adjusting Bolt (M4x 10.3) Clamp Bolt (M6x 14.8) Y8U806000 A: Same parts. Mar.-2011-3141 © B: Parts are usable, but differ in materirals, appearance, finish, size, etc. Shimano Inc. A Absence of mark indicates non-interchangeability. Specifications are subject to change without notice.
- Page 2 Outer casing Cable hook • Use the ST-4600/4603, BL-4600/R780 with the BR-4600. Do not use the BR- Installation nut 4600 in combination with previous STI levers for road riding or with the BL- R770/BL-R550 brake levers for flat handlebars, otherwise the braking performance provided will be much too strong.
- Page 3 Prima dell’uso leggere attentamente le Istruzioni freios cuidadosamente antes do uso. Usar sólo en las combinaciones indicadas antes. relative all’Assistenza per il Sistema Frenante. Mar. 2011 by Shimano Inc. Usare solo nelle combinazioni indicate sopra. TG-8VB0A-001 XBC. IZM. Printed in Malaysia...
