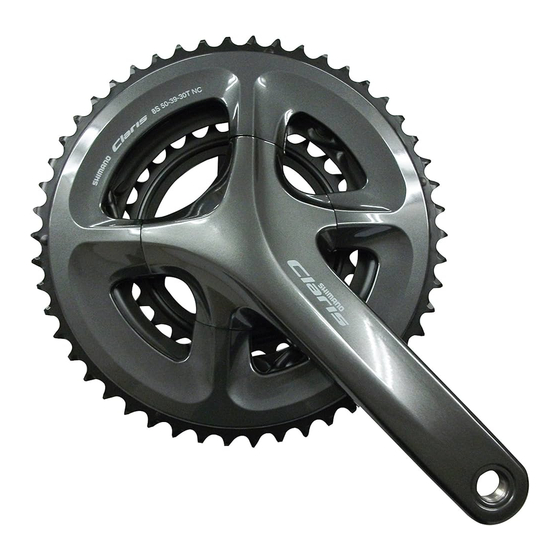

- Page 1 (English) DM-RBFC001-03 Dealer's Manual ROAD Trekking City Touring/ URBAN SPORT E-BIKE Comfort Bike Crankset SORA FC-R3000 FC-R3030 CLARIS FC-R2000 FC-R2030 Bottom bracket BB-RS500 BB-RS501 BB-RS500-PB...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT NOTICE ....................3 TO ENSURE SAFETY ....................4 LIST OF TOOLS TO BE USED .................. 7 BB-RS500 / BB-RS501 ............................7 BB-RS500-PB ..............................7 INSTALLATION ....................... 9 Bottom bracket ............................9 PRESS-FIT BB ..............................9 Installing the crank arms ...........................13 MAINTENANCE ....................16 Replacing chainrings ..........................16... -
Page 3: Important Notice
• All manuals and technical documents are accessible online at https://si.shimano.com. • For consumers who do not have easy access to the internet, please contact a SHIMANO distributor or any of the SHIMANO offices to obtain a hardcopy of the User's Manual. -
Page 4: To Ensure Safety
• Be sure to follow the instructions provided in the manuals when installing the product. Only use SHIMANO genuine parts. If a component or replacement part is incorrectly assembled or adjusted, it can lead to component failure and cause the rider to lose control and crash. - Page 5 • Products are not guaranteed against natural wear and deterioration from normal use and aging. • For maximum performance we highly recommend SHIMANO lubricants and maintenance products. For Installation to the Bicycle, and Maintenance: • When installing the pedals, apply a small amount of grease to the threads to prevent the pedals from seizing. Use a torque wrench to securely tighten the pedals.
-
Page 6: List Of Tools To Be Used
LIST OF TOOLS TO BE USED... - Page 7 LIST OF TOOLS TO BE USED LIST OF TOOLS TO BE USED The following tools are needed for installation, adjustment, and maintenance purposes. Tool Tool 4 mm hexagon wrench Soft face mallet 5 mm hexagon wrench TL-FC16 / TL-FC18 8 mm hexagon wrench 17 mm spanner „...
-
Page 8: Installation
INSTALLATION... -
Page 9: Bottom Bracket
Bottom bracket INSTALLATION „ Bottom bracket Grease the left- and right-hand cups and TL-FC32 use the SHIMANO original tool to install Inner cover the right-hand cup of the bottom Right-hand cup (left-hand thread) bracket, the inner cover and the Left-hand cup left-hand cup of the bottom bracket. -
Page 10: Press-Fit Bb
If the frame has no openings inside the bottom bracket shell, it can be installed without the inner cover sleeve. Installation Insert the bottom bracket into the bottom bracket shell. Insert the SHIMANO original tool into TL-BB12 the bottom bracket. To be continued on next page... - Page 11 INSTALLATION PRESS-FIT BB Press fit the bottom bracket by 8 mm hexagon wrench tightening with a spanner while making 17 mm spanner sure that the contact surface of the bottom bracket stays parallel to the contact surface of the bottom bracket shell.
- Page 12 While holding down the end of the removal tool, push the tool in from the other side until it locks in place. Tap the SHIMANO original tool with a Soft face mallet soft face mallet until the end of the bottom bracket is ejected.
-
Page 13: Installing The Crank Arms
INSTALLATION Installing the crank arms „ Installing the crank arms Fully insert the right crank arm unit until it touches the bottom bracket. Set the wide groove area of the left Wide groove area (left crank arm) crank arm into the axle of the right Wide groove area (axle) crank arm unit where the groove is wide. - Page 14 INSTALLATION Installing the crank arms Use the SHIMANO original tool to TL-FC16 tighten the cap. Apply grease: Premium Grease (Y04110000) Tightening torque 0.7 - 1.5 N·m Push in the stopper plate and check that Plate pin the plate pin is securely in place, and...
-
Page 15: Maintenance
MAINTENANCE... -
Page 16: Replacing Chainrings
MAINTENANCE Replacing chainrings MAINTENANCE „ Replacing chainrings FC-R3000 / FC-R2000 / FC-R2000-CG With the marked side of the largest Mark chainring facing outward, set the largest Crank arm chainring so that the chain drop Chain drop prevention pin prevention pin is positioned under the crank arm. - Page 17 MAINTENANCE Replacing chainrings FC-R3000-CG Crank arm 4 mm hexagon wrench Chain guard 5 mm hexagon wrench Tightening torque 1.5 - 2.5 N·m 12 - 14 N·m With the marked side of the smallest Crank arm chainring facing inward, set the smallest Alignment tab chainring so that the alignment tab is positioned under the crank arm.
- Page 18 MAINTENANCE Replacing chainrings FC-R3030 / FC-R2030 / FC-R2030-CG With the marked side of the largest Mark chainring facing outward, set the largest Crank arm chainring so that the chain drop Chain drop prevention pin prevention pin is positioned under the crank arm.
- Page 19 MAINTENANCE Replacing chainrings FC-R3030-CG Crank arm 4 mm hexagon wrench Chain guard 5 mm hexagon wrench Tightening torque 1.5 - 2.5 N·m 12 - 14 N·m Set the middle chainring and the Crank arm smallest chainring so that the marked Alignment tab sides face inward and the alignment tab on each chainring is positioned under...
- Page 20 Please note: specifications are subject to change for improvement without notice. (English) © May 2022 by SHIMANO INC. ITP...
