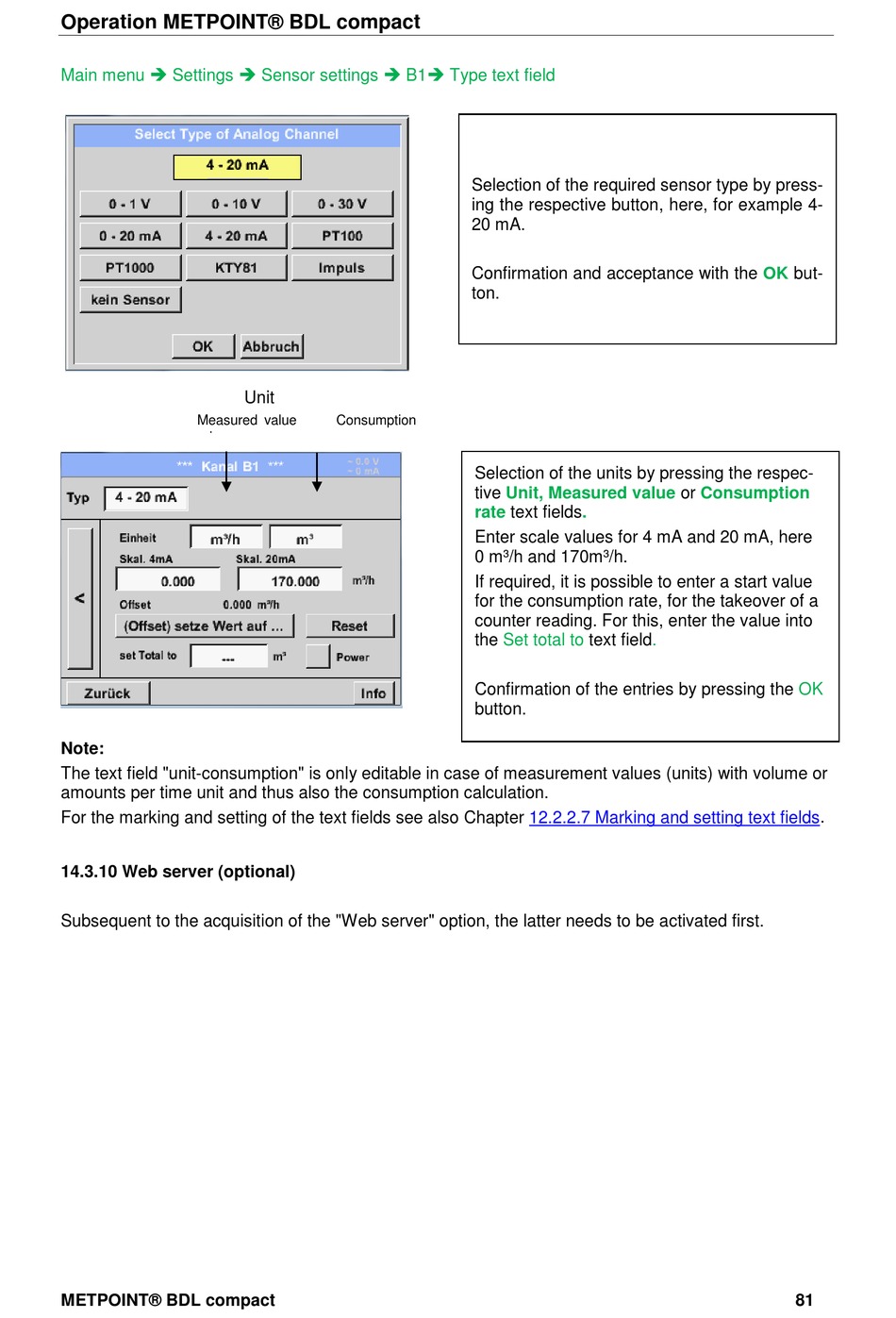

Operation METPOINT® BDL compact
Main menu Settings Sensor settings B1 Type text field
Measured value
t
Note:
The text field "unit-consumption" is only editable in case of measurement values (units) with volume or
amounts per time unit and thus also the consumption calculation.
For the marking and setting of the text fields see also Chapter
14.3.10 Web server (optional)
Subsequent to the acquisition of the "Web server" option, the latter needs to be activated first.
METPOINT® BDL compact
Unit
Consumption
Selection of the required sensor type by press-
ing the respective button, here, for example 4-
20 mA.
Confirmation and acceptance with the
ton.
Selection of the units by pressing the respec-
tive
Unit, Measured value
rate
text
fields.
Enter scale values for 4 mA and 20 mA, here
0 m³/h and 170m³/h.
If required, it is possible to enter a start value
for the consumption rate, for the takeover of a
counter reading. For this, enter the value into
the
Set total to
text
field.
Confirmation of the entries by pressing the
button.
12.2.2.7 Marking and setting text
OK
but-
or
Consumption
OK
fields.
81
