Philips Domestic Appliances and Personal Care

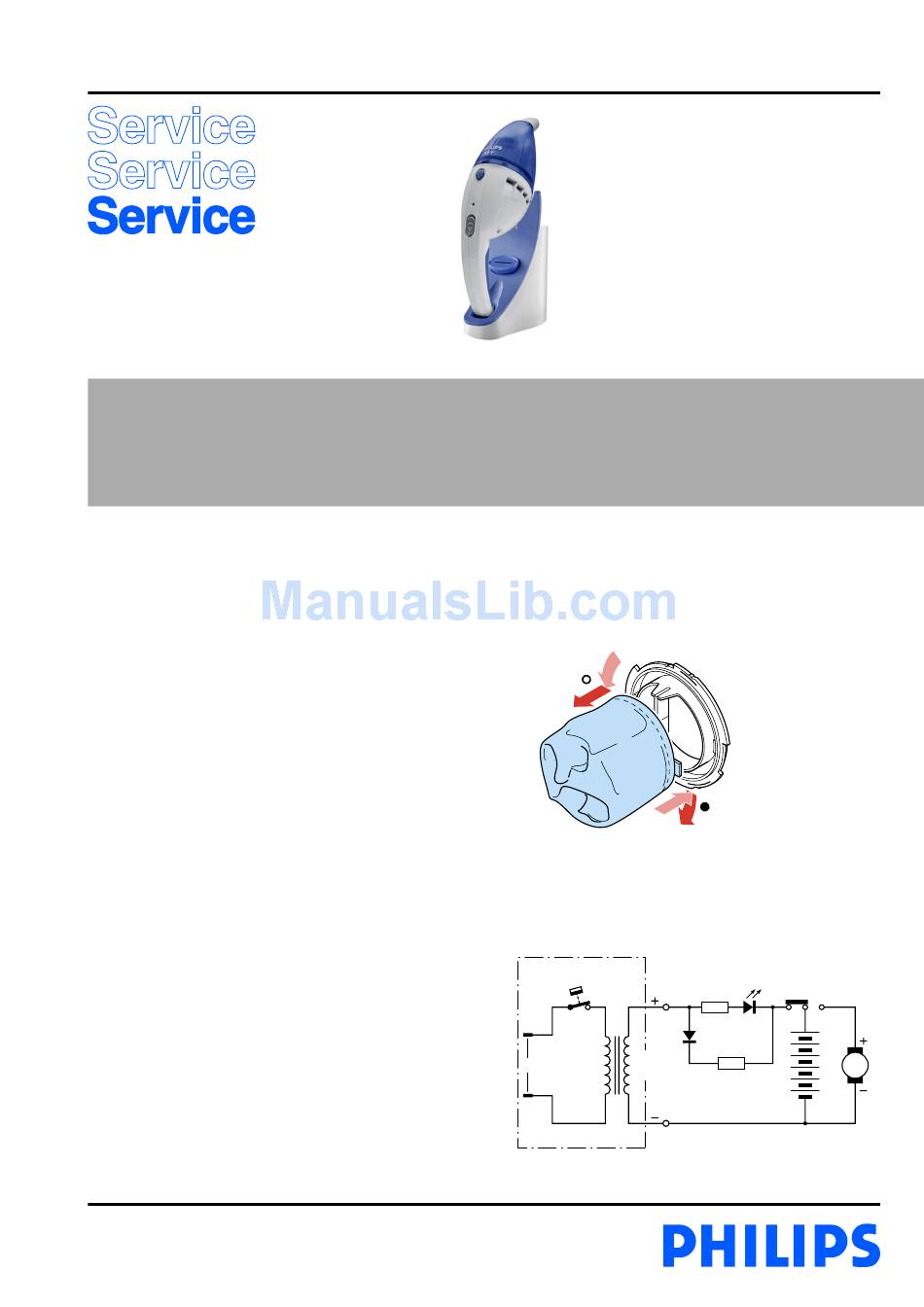

Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Adapter
- Power
- Rechargeable batteries
- Run time
- Charging time
- Charge indicator
- Charging base
- Accessories
- Application environment : Wet and dry
- Filter FC8036
- Dust chamber
Published by Philips Domestic Appliances and Personal Care
06/03
: DC 9 V - 600 mA
: Driven by 7,2 V DC motor
: 6 x GPI NiCd - 1600 mAh
: NiCd minimal 9.5 min.
: 16 hours trickle charging
: LED
: Multi mountable
incl. accessory storage
: Crevice, brush and squeegee
: Standard filter (single),
washable
: Capacity dry min. 270 ml.
Capacity wet min. 105 ml.
Printed in the Netherlands
Vacuum cleaner
REPAIR INSTRUCTIONS
- No specific issues
ASSEMBLY & DISASSEMBLY ADVICE
OPTIONAL (accessories)
- No specific issues
Thermal
Fuse
DC 9V
AC
600 mA
ADAPTER
© Copyright reserved
FC6055
S1
R2
LED
D1
R1
M
1.2 V x6
Subject to modification
