Orbit 56544 Manual

2 Outlet Advanced
HOSE FAUCET TIMER
Important, please read!
When expecting freezing temperatures,
timers should be removed from the hose
faucet and stored indoors to avoid potential
freeze damage.
Filter traps dirt particles, prolonging
life of timer. Clean filter regularly and
replace if worn.

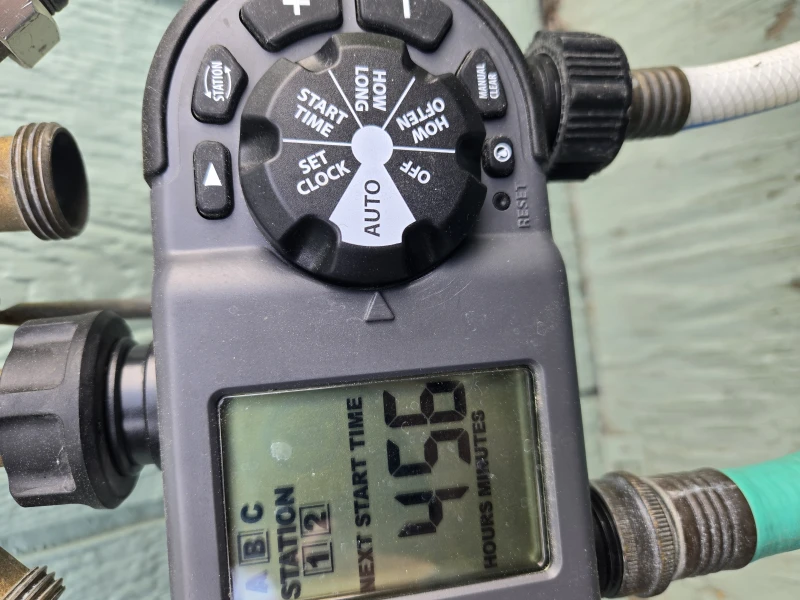

TIMER FEATURES
FILTER
HOSE TAP
CONNECTION
LOW
ARROW
BATTERY
INDICATOR
STATION
A B C STATION
STATION
1 2
MANUAL MANUAL
NEXT START TIME NEXT START TIME
+/- BUTTONS
EVERY EVERY DAYS DAYS AM AM
AUTO
HOURS MINUTES PM
HOURS MINUTES PM
MANUAL/
MANUAL
CLEAR
CLEAR
RESET
DIAL
STATION 1 RAIN DELAY STATION 2
DIAL—
Rotate the dial to customize your
watering schedule.
+/- BUTTONS—
Use these buttons to adjust
time and program.
RAIN DELAY—
While in AUTO press to
activate Rain Delay.
ARROW—
Moves cursor around the screen
during programming.
STATION—
Moves between Station 1
and Station 2.
MANUAL/CLEAR—
Press to water manually or
to clear programming.
RESET—
Press to reset back to factory settings.
AUTO
—Timer waters according to your
customized schedule.
SET CLOCK
—Set the time of day.
START TIME
—Select what time you would
like to start watering.
HOW LONG
—Determine how long to water
HOW OFTEN
—Choose how often you will water
OFF
—Turn off all watering.
INSTALLING THE BATTERIES
1. Remove the tray on the back of the timer by sliding or
pulling it out.
2. Insert two AAA (1.5V) alkaline batteries
(not included) and replace the tray.
NOTE: Firmly replace the battery tray to ensure water
resistance and increase battery life. You will know the
battery tray is fully inserted if it does not pull out easily.
Used up or dead batteries must be removed from the timer
and disposed of properly. Replace batteries when low
battery icon appears on display. Do not dispose of batteries
in fire. Batteries may explode or leak.
PROGRAMMING THE TIMER
SET CLOCK AND DAY
PM
1. Turn dial to SET CLOCK.
2. Using the +/- buttons, set the time of day,
including AM and PM. Timer advances faster if
button is held down.
3. Press the ARROW button to set current day.
4. Press the +/- buttons to move between and select
the current day of the week. Press the ARROW
button to toggle back to the time of day.
5. Turn dial to save changes
WATERING SCHEDULES AND START TIMES
A B C
STATION
1 2
START TIME
AM
This timer features three customizable watering
schedules [A], [B], [C]. A watering schedule may
include start times for Station 1, Station 2, or both
Station 1 and Station 2. A watering start time is
the time of day the timer will begin to water all
programmed stations; one after another.
NOTE: Only watering schedule [A] is required. Advanced
Users may use watering schedules [B] and [C] for
additional watering.
1. Turn dial to START TIME.
2. Watering schedule [A] is automatically selected and
the time selector will be blinking.
NOTE: Timer will not function without at least watering
schedule [A] selected.
3. Using the + / - buttons, set the time you want all
watering to begin, including AM and PM. Timer
advances faster if button is held down. A box is placed
around watering schedule [A] noting a start time has
been added.
NOTE: The timer will not function without at least
one start time entered.
4. Both Station 1 and Station 2 are automatically
selected (noted by boxes around them) when a start
time is added. Both Station 1 and Station 2 will water,
one after the other, beginning at your selected start
time. To remove a station from watering schedule [A]
press the STATION button to cycle through and select
Station 1 or Station 2. Press the - button to toggle the
station off (removing the box). Press the + button to
toggle the station on (adding the box).
NOTE: The timer will not function without at least one
station selected.
5. Advanced Users - To program watering schedules
[B] or [C] press the ARROW button to move through a
select {B] or [C]. Selected schedule will be blinking.
Repeat steps 3-5 to program additional watering
schedules. Use watering schedules [B] and [C] if you
need additional watering schedules.
6. Turn dial to save changes and move to the next step.
HOW LONG
STATION
1 2
MINUTES
1. Turn dial to HOW LONG.
2. Station 1 and the time selector will be blinking.
3. Use +/- buttons to add a 1 to 360 minute watering
duration. Timer advances faster if button is held
down. A box is placed around Station 1.
NOTE: A watering duration is required for Station 1 to water.
4. To select Station 2 press the STATION button. Station
2 and the time selector will be blinking.
NOTE: To move between stations press the STATION button.
