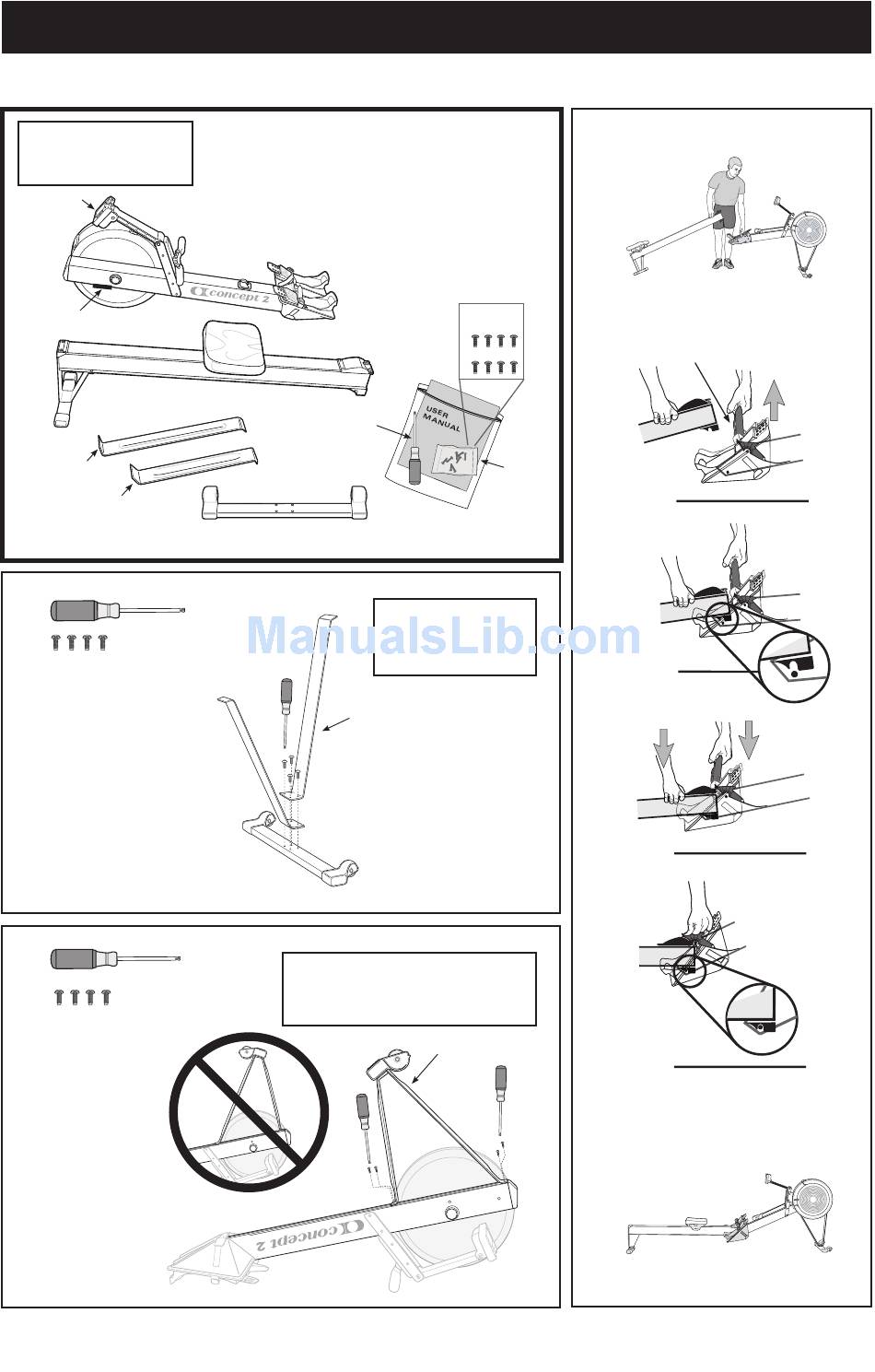

Concept2 MODEL D Assembly Instructions

Assembly Instructions
IMPORTANT NOTE:
Use these instructions for
MODEL D assembly.
PN 1818
Serial number
PN 2858 - Gray
PN 2848 - Black
PN 2137 - Gray
PN 1118 - Black
PN 2136 - Gray
PN 1117 - Black
1
(4) 3/4" (2.54 cm)
PN 2233
2
(4) 3/4" (2.54 cm)
PN 2233
MODEL D
Weight: 57 lb (26 kg)
Dimensions: 8 ft x 2 ft (244 cm x 61 cm)
Space Required for Use: 9 ft x 4 ft (274 cm x 122 cm)
Weight Capacity: 500 lb (227 kg) as tested by Concept2*
*300 lb (135 kg) as tested per European Stationary Fitness
Equipment Testing Standard EN 20957-7
PN 2854 - Gray
PN 2844 - Black
PN 1708
PN 2230
PN 2856 - Gray
PN 1735 - Black
Long Leg
23.5"(60 cm)
To prevent thread damage, be sure holes line
up before inserting fasteners. Do not fully
tighten until all fasteners are in place.
MODEL D
Contents of PN 2952
PN 2233
3/4" (2.54 cm)
PN 2952
Assembly Tip
Note that the long leg
extends from the same side
as the caster wheels.
Caster Wheels
Assembly Tip
Long Leg
3
Footstrap
1.
2.
3.
4.
1116
