4 How to Use

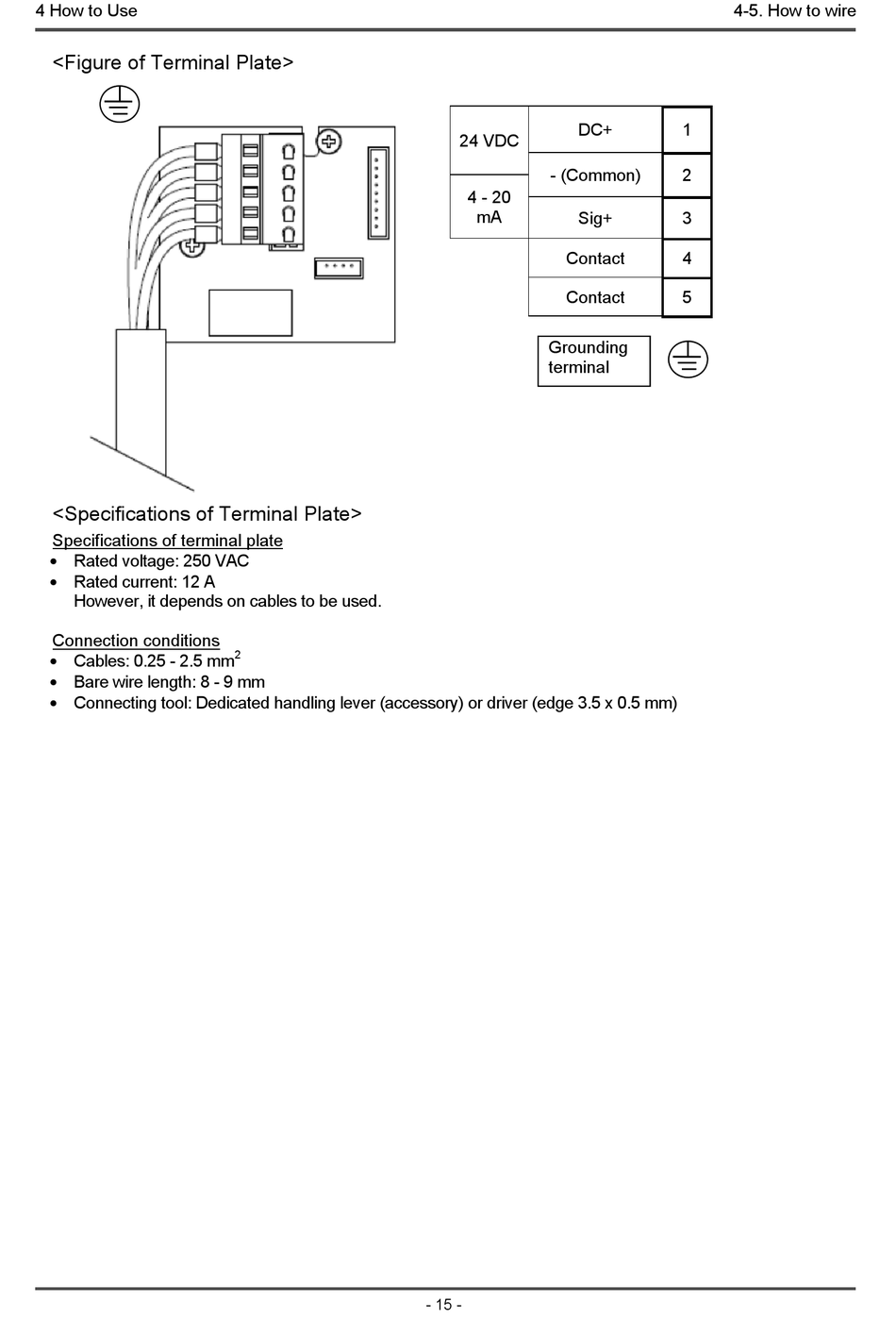

<Figure of Terminal Plate>
<Specifications of Terminal Plate>
Specifications of terminal plate
 Rated voltage: 250 VAC
 Rated current: 12 A
However, it depends on cables to be used.
Connection conditions
 Cables: 0.25 - 2.5 mm
 Bare wire length: 8 - 9 mm
 Connecting tool: Dedicated handling lever (accessory) or driver (edge 3.5 x 0.5 mm)
2
DC+
24 VDC
- (Common)
4 - 20
mA
Sig+
Contact
Contact
Grounding
terminal
- 15 -
4-5. How to wire
1
2
3
4
5
