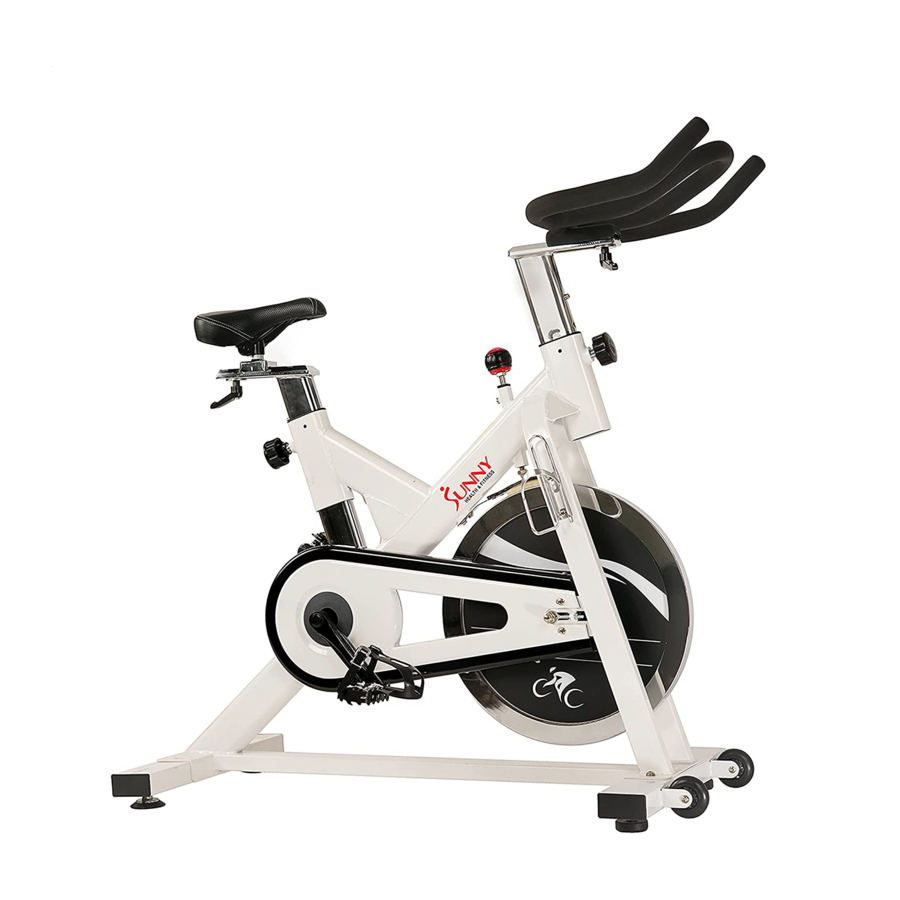

- Page 1 INDOOR CYCLING BIKE SF-B1110S USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM 63 60 11 12 13 14 15 HARDWARE PACKAGE #4 d8* 16*1.5 4PCS #5 M8*55 4PCS #28 d10* 40*4 1PC #29 M10*25 1PC #75 S6 1PC #76 S14-15-17 1PC #77 S10-13-17-19 1PC... -
Page 4: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. End Cap F80*40 Spacer Φ22*Φ12.2*6 Rear Stabilizer Tension Knob Foot Leveler Washer d8*Φ16*1.5 Brake Rod Φ10*210 Hex Screw M8*55 Square Nut Front Stabilizer M6*H14*S10 Screw Φ7.8*30 Brake Board t7*138.3*28 Bearing 608ZB Φ8 Spring Piece t1.5*110*15.5 9L/R... - Page 5 Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ...
-
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: Remove Shipping Tubes (No. 69) from Main Frame (No. 57) by removing 4 Screws (No. 70) and 4 Washers (No. 4) with Allen Wrench (No. 75). NOTE: You may discard these parts or save them for future packaging and transportation {Screws (No. - Page 7 STEP 4: Insert Handlebar Post (No. 36) into Main Frame (No. 57) and fix with [handlebar adjustment] Knob (No. 38). Secure Handlebar (No. 35) onto Handlebar Post (No. 36) using L-Shaped Knob (No. 29) and Washer (No. 28). STEP 5: WARNING! Read instructions carefully as improper assembly may cause permanent damage to your bike.
- Page 8 ADJUSTMENTS GUIDE ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the stability of the bike is secured. If you notice that the bike is unbalanced during use, you should adjust the foot levelers located beneath the front and rear stabilizers. To do so, use Spanner (No.
-
Page 9: Adjusting The Handlebar
DISMOUNTING THE BIKE WARNING! Do not dismount the bike or remove your feet from the pedals until the pedals have stopped completely. You can stop the flywheel at anytime by pushing down on Tension Knob (No. 41). ADJUSTING THE HANDLEBAR Loosen the [handlebar adjustment] Knob (No. -
Page 10: Maintenance Instructions
MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all 1. Check if all hardware is secure, such as: the equipment: seat, frame, handlebars. Pay water bottle holder, flywheel nuts, belt/chain special attention to the seat post, handlebar guard bolts, brake caliper lock nuts and...
