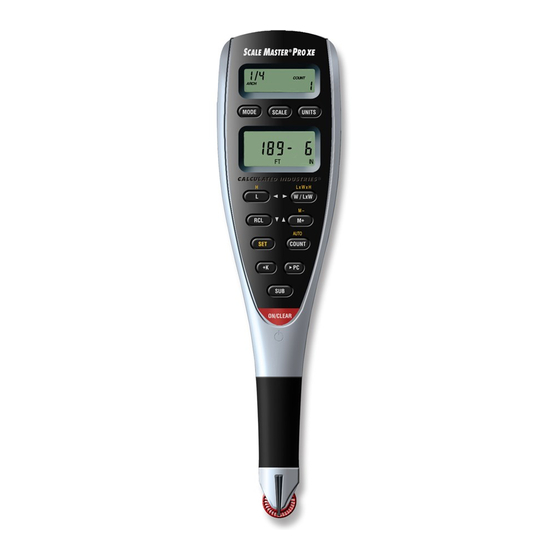

- Page 2 cale aSter ro xe ® Introduction The Scale Master Pro XE Multi-Scale Digital Plan Measure has been specifically designed to simplify takeoffs from architectural and engineering drawings. Finds linear measurements of any • shape Finds rectangular areas and volumes • Converts between scales and •...
-
Page 3: Table Of Contents
able of onTenTs Getting Started Key Definitions ..........1 Operation Keys ..........1 Setup Keys .............3 Measuring Keys ..........5 Function Keys ..........7 Using the Scale Master Pro XE Adjusting the Wheel........10 Preferences ............. 11 Imperial/Metric Modes ........ 13 Built-In Scales ..........14 Imperial (Standard) Scales ...... - Page 4 Appendix Error/Auto-Range Function ....... 29 Interference ............ 29 Battery/Automatic Shut-Off ...... 30 Battery Replacement ........30 Default Settings ..........31 Specifications ..........32 Repair and Return ......... 33 Warranty............34 FCC Class B ........... 36 Looking for New Ideas ........ 37 Contact Us ............
-
Page 5: Getting Started
eTTinG TarTed Key Definitions Operation Keys [ON/CLEAR] – On/Clear Turns power on. Press once to clear the display. This will not clear the last rolled measurement as it is a permanent value and can be recalled to the main display at any time by pressing [RCL] [RCL] [SET] [ON/CLEAR] –... - Page 6 [RESET] – Hardware Reset If your Scale Master Pro XE should ever “lock up,” use a paperclip or similar size object to press the RESET hole. Clears all values, including memory. All permanent settings, including Preferences, remain intact. [SET] – Set Key Used with other keys to access second functions and place the Scale Master Pro XE into programming mode.
-
Page 7: Setup Keys
[LOCK] – Lock Switch The Lock Switch is located on the side of the unit. When the lock is activated, a lock symbol will be displayed in the LCD. While active you cannot alter Scales, Modes, Units, Preferences or the IMP/ (Imperial/Metric) switch. - Page 8 [SCALE] – Scale Selection Repeated presses of will scroll [SCALE] through the available scales. See “Built-In Scales” section. [SUB] + [SCALE] – Scrolls Back Scales Holding and repeated presses of [SUB] will scroll backward through the [SCALE] available scales. [UNITS] – Unit Selection Repeated presses of will [UNITS]...
-
Page 9: Measuring Keys
Moves to the right when setting values for custom scales, auto-count, constant, and height. Will scroll forward through available settings within the preferences. [] ([RCL]) – Down Arrow Decreases the number when setting values for custom scales, auto-count, constant, and height. Will scroll down through the preferences. - Page 10 Enters the displayed measurement into width. The total area will be displayed when the width is entered. Repeated presses will scroll through the following results: 1) Area 2) Perimeter 3) Volume (if Height is entered) 4) Wall Area (if Height is entered) 5) Stored Height (if Height is entered) 6) Stored Length 7) Stored Width...
-
Page 11: Function Keys
(cont’d) 1) Volume (if Height entered) 2) Wall Area (if Height entered) 3) Stored Height (if Height entered) 4) Stored Length 5) Stored Width 6) Area 7) Perimeter Function Keys [M+] – Memory Plus Adds the displayed value to the accumulative value. - Page 12 [RCL] [COUNT] – Count Recall Displays the count value in the main display. [ON/CLEAR] + [COUNT] – Count Clear Clears the count value. [SET] [COUNT] – Auto-Count Enters auto-count setting mode. See the “Setting an Auto-Count” section. [RCL] [SET] [COUNT] – Auto-Count Recall Displays the stored Auto-Count value.
- Page 13 [ON/CLEAR] + [+K] – Constant Clear Clears the constant value. [SUB] – Subtract Mode Toggles subtract mode on and off. When subtract mode is on, rolling forward or backward will subtract from the displayed measurement. Press a second time [SUB] or press to turn subtract [ON/CLEAR]...
-
Page 14: Using The Scale Master Pro Xe
sinG The Cale asTer ro xe Rotate to Adjust Wheel Adjusting the Wheel The Celcon polymer wheel can be adjusted ® for each user’s preference. To adjust the wheel, take a small, flat-head jeweler’s screwdriver and slightly rotate the screw located near the wheel tip. -
Page 15: Preferences
Preferences Preferences allow customization of how the Scale Master Pro XE functions during certain operations. The following preferences are available: Button Beep (butn) – Toggles on or off the beep sound that occurs at the press of a button or during auto-count. Beep, On –... - Page 16 PC Terminate (End PC) – Determines where the “cursor” moves after a value is sent to the PC. The settings represent the key being pressed on the PC keyboard: Enter – PC Enter – PC Tab Left – PC Left Arrow Right –...
-
Page 17: Imperial/Metric Modes
Setting Preferences: 1) Press to access the [SET] [MODE] preferences. 2) Press the ) key to move up [M+] or the ) key to move down [RCL] through the list of preferences. 3) When the preference to be changed is displayed, press the ) key to [W/LxW]... -
Page 18: Built-In Scales
Built-In Scales Imperial (Standard) Scales Architect Engineer I Engineer II ARCH ENG I ENG II 1 foot= 1 inch= 1 inch= 1 inch= 1/4" 10.0’ 300.0’ 1.0 Mi 3/8" 20.0’ 333.3’ 1.5 Mi 1/2" 30.0’ 400.0’ 2.0 Mi 3/4" 40.0’ 416.6’... -
Page 19: Changing Modes
Changing Modes Repeated presses of the key will [MODE] scroll through the list of available modes. Holding when pressing will [SUB] [MODE] scroll backward through the list of available modes. Changing Scales Repeated presses of the key will [SCALE] scroll through the list of available scales. Holding when pressing will... -
Page 20: Operation
Operation User’s Guide – 16... -
Page 21: Rolling A Measurement
Rolling a Measurement To take a measurement with the Scale Master Pro XE: 1) Turn the unit on. If the display does not show zero (0), press the [ON/CLEAR] key to clear the display. 2) Select your type of scale by pressing the key. -
Page 22: Using The Memory Function
minimize the accidental clearing of stored, recalled and calculated values from the display due to very slight wheel movement. Using the Memory Function The Memory function allows you to add rolled or counted values. However, you cannot add dimensioned (rolled) and non- dimensioned (counted) values together. -
Page 23: Additional Memory Functions
Additional Memory Functions [SET] [M+] Subtracts the value in the main display from the value stored in Memory. [RCL] [M+] Displays the total accumulated value in Memory. Repeated presses of will [M+] toggle between total accumulated value, number of entries in Memory, and average value of all entries in Memory. -
Page 24: Setting Custom Scales
+K (Constant) value ● Height value ● To begin setting values, press the [SET] and then the desired key to be programmed. The following keys are used in programming mode: Toggles through available units. [UNITS] ) Advances the cursor to the [W/LxW] ... -
Page 25: Rolling A Custom Scale
Rolling a Custom Scale 1) Press until (# being [MODE] # OPEN a number 1-5) appears in the scale box display. 2) Press . “ ” will appear [SET] [SCALE] ROLL in the main display. 3) Roll desired distance. “ ”... -
Page 26: Entering A Custom Scale
7) Once the desired value has been entered, press to store value and exit the [SET] programming mode. Note: Pressing will exit the [ON/CLEAR] programming mode without saving any value as the Custom Scale. Entering a Custom Scale 1) Press until (# being [MODE]... -
Page 27: Setting An Auto-Count
(cont’d) Metric mode, entered scales are direct ratios. 6) Press ) to increase or [M+] [RCL] to decrease the selected digit. Press the ) key to move to the next [W/LxW] digit to the right or the ) key to ... -
Page 28: Setting A Constant (+K)
2) To change the units of measurement, press until your desired units [UNITS] appear. Press the ) or the [W/LxW] ) key to begin setting the distance. The selected digit will start flashing. 3) Press ) to increase or [M+] [RCL] ... -
Page 29: Additional Constant Functions
(cont’d) 1) Press to access the constant [SET] [+K] function. The appropriate annunciator will begin flashing “ ” for Imperial FT IN Mode or “ ” for Metric Mode. “ ” PLUSk will appear in the display. 2) To change the units of measurement, press until your desired units [UNITS]... -
Page 30: Setting A Height
Setting a Height The height function is used to enter a height value for finding volume. To set a Height: 1) Press to access the height [SET] [L] function. The appropriate annunciator will begin flashing “ ” for Imperial FT IN mode or “... -
Page 31: Finding Area And Volume
Finding Area and Volume The Scale Master Pro XE can calculate Area and Volume once you have your values set for Length, Width, and (for Volume) Height. Finding Area 1) Roll the first side and press the to store as Length. 2) Roll the second side and press [W/LxW] to store as Width. -
Page 32: Additional Area/Volume Functions
Additional Area/Volume Functions [RCL] [L] Displays the value stored in the Length register. [RCL] [W/LxW] Displays the value stored in the Width register. [ON/CLEAR] Clears the value stored as Length. [ON/CLEAR] [W/LxW] Clears the value stored as Width. Connecting to a PC (optional) The Scale Master Pro XE has a computer interface connection so that you can use it with estimating and spreadsheet software... -
Page 33: Appendix
PPendix Error/Auto-Range Function Error Message – If you make an incorrect entry (such as trying to add dimensioned and non-dimensioned values together), the Scale Master Pro XE will display the word “ .” Press to clear. [ON/CLEAR] ERROR Auto Range Function – If the value is too large to display in the selected units of measurement, the answer will be displayed in the next larger measurement units... -
Page 34: Battery/Automatic Shut-Off
Battery/Automatic Shut-Off The Scale Master Pro XE is powered by two 3-Volt CR-2032 Lithium batteries (6 volts total). To conserve battery power, the unit will shut itself off if it is not used for 4-6 minutes. Press the to restore [ON/CLEAR] power. -
Page 35: Default Settings
Default Settings The following are the factory defaults of the Scale Master Pro XE: Default Default Settings Imperial Metric Mode ARCH ENG I Scale 1/4" 1:100 1”:1” Custom Scales Linear FT IN Area SQ FT SQ M CU YD CU M Volume Length 0.00... -
Page 36: Specifications
Specifications Power Source: Two 3-Volt CR-2032 lithium batteries. Approximately 400 hours normal use. Display Method: LCD with commas, annunciators and zero suppression. Display Capacity (Main Display): 9,999,999 (7 digits) Resolution/Accuracy: .025 Inch/99.75% Note: Based on start/stop point and scale magnitude, users typically experience ± 2% - 3% rolling error . -
Page 37: Repair And Return
Repair and Return Repair and Return Information Return Guidelines: 1. Please read the Warranty in this User's Guide to determine if your Calculated Industries product remains under warranty before calling or returning any device for evaluation or repairs. 2. If your product won't turn on, check the batteries as outlined in the User's Guide. -
Page 38: Warranty
Non-warranty repair covers service beyond the warranty period, or service requested due to damage resulting from misuse or abuse. Contact Calculated Industries at the number listed above to obtain current product repair information and charges. Repairs are guaranteed for 90 days. - Page 39 Repair Service — Outside the USA To obtain warranty or non-warranty repair service for goods purchased outside the U.S., contact the dealer through which you initially purchased the product. If you cannot reasonably have the product repaired in your area, you may contact CI to obtain current product repair information and charges, including freight and duties.
-
Page 40: Fcc Class B
FCC Class B Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 41: Looking For New Ideas
Looking for New Ideas Calculated Industries, a leading manufacturer of special- function calculators and digital measuring instruments, is always interested in new product ideas in these areas. If you have a new product idea, please visit our "Bright Idea" page at www.calculated.com/brightidea.asp. -
Page 42: Contact Us
Contact Us Mail Calculated Industries, Inc. 4840 Hytech Drive Carson City, Nv 89706 U.S.A. Phone (775) 885–4900 (775) 885–4949 E-mail techsup@calculated.com World Wide Web www.calculated.com User’s Guide – 38... - Page 43 Software copyrighted and licensed to Calculated Industries by Scale Master Technologies, LLC, 2009. User’s Guide copyrighted by Calculated Industries, 2009. Scale Master and Calculated Industries ® ® are registered trademarks of Calculated Industries, Inc. ALL RIGHTS ReSeRveD CALCULATeD INDUSTRIeS ®...
