ALEKO

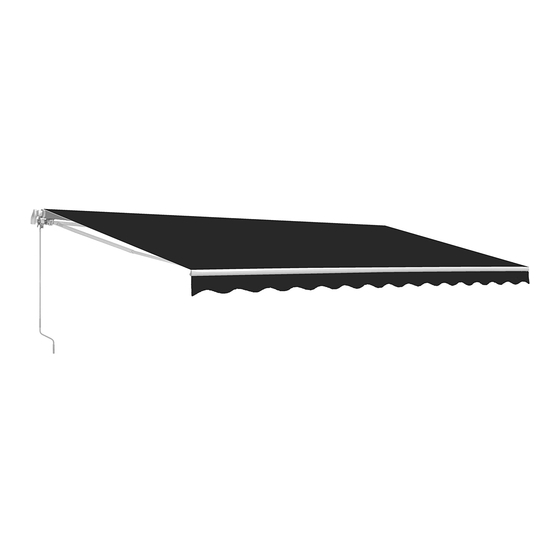

Victoria Series Retractable Awning
Instructions for Installation and Operation
The owner's manual includes assembly and operating instructions, safety warnings, and the lists of parts and
hardware. If you have questions about the assembly or operation of this product, or have missing or defective
parts, please e-mail us at
Parts Diagram
Safety Installation and Operation
Part List
-
www.AlekoProducts.com
Contents
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
or call us (M-F 7:00 AM to 5:00 PM PST) at 253-872-3656
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- 2 / 3/ 4/ 5
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- 7 / 8 / 9
-
-
-
-
-
-
-
-
-
- 9/ 10
- 1
- 5
-
6
-
- 6
- 9
Advertisement
Related Manuals for Aleko Victoria Series
Summary of Contents for Aleko Victoria Series
-
Page 1: Table Of Contents
® ALEKO Victoria Series Retractable Awning Instructions for Installation and Operation PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE! The owner’s manual includes assembly and operating instructions, safety warnings, and the lists of parts and hardware. If you have questions about the assembly or operation of this product, or have missing or defective parts, please e-mail us at Sales@AlekoProducts.com... - Page 2 Page 1...
-
Page 3: Steps Of Assembly
Page 2 WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY! Steps of Assembly 1. Roller Assembly: Insert roller connector (A-3) into right roller (A-2), fasten it with bolt (A-A-1). Link the left roller (A-1) to the connector (A-3), fasten it with bolt (A-A-1). Now you have a full length roller. - Page 4 Page 3 4. Installation of gear box: Combine left roller support (D-1) D-1 D-3 D-4 with gear box (D-3) through bolt (D-4) M6x50, refer to Diagram 1. Then install right roller support (E-1) and round E-2 E-1 Diagram 1 shaft cover (E-2) together as in Diagram 2. Diagram 2 5.
- Page 5 Page 4 Through from Through the fabric into roller and front 9. Front bar wrist support assembly: Blocker (P) and Arm-Bar Link (Q-1) into big trough of front bar, put both left and right plastic cover (R) to each end of the bar, then fix the Bolt for Cover &...
-
Page 6: Specifications
Page 5 12. Setting position of whole awning: Make sure two arms are tied tightly to torsion bar, move front bar wrist support (Q-1) until it connects with arms’ hole. Align the front bar and roller, tighten bolt (Q-2) of two Arm-Bar Link upwardly by screwdriver. Then fasten self locking nut M10 +Washer Ø10(Q-3) with bolts up to 95% tight using ribbon tube spanner. - Page 7 Page 6 Safe installation and operation Never install it in high and windy places, as the sunshade may drop and hurt someone Don’t use it in places that have vibrations or impulsions. Don’t use it in places of high temperature such as walls near furnaces. ...
-
Page 8: Installation Procedure
Page 7 Installation Procedure 1. Measure the distance along the wall where it can be placed. Drill holes for wall brackets on the wall according to the installation distances and height of the wall brackets. The diameter and depth of hole must be the same as expansion bolts. The holes of each group must be on the same line in transversal 3.5 Inch... - Page 9 Page 8 Installation distance between wall brackets Awning < 10.8ft Only 2 wall brackets for each end of torsion bars Awning 10.8ft ~ 14ft 2 wall brackets at each end of torsion bar, a middle bracket in between distance of 2 arm shoulders (arm brackets refer to steps of assembly 6) Awning 14.5ft ~ 20ft 2 wall brackets at each end of torsion bar, 2 middle brackets...
-
Page 10: Common Mistakes
Page 9 CAUTION: PROPER LOCATION OF THE BRACKETS IS THE MOST IMPORTANT ASPECT OF THE AWNING INSTALLATION. IT IS CRITICAL THAT YOU FASTEN ALL THE MOUNTING BRACKETS TO STUDS, JOISTS, HEADERS OR OTHER MAJOR STRUCTURAL COMPONENTS. WARNING: FAILURE TO SECURELY FASTEN ALL THE BRACKETS TO THE WALL COULD RESULT IN THE COLLAPSE OF THE AWNING AND CAUSE PERSONAL INJURY OR DEATH. - Page 11 Page 10 Installation of motor bracket: Combine left roller support with motor bracket through bolt M6 x 50, see Diagram 4 above; Fixing guide: 1. Please connect the down-lead of the motor and the wire of power supply to the switch according to the diagram.
-
Page 12: Please Do Not Return This Product To The Store
For more information, parts and accessories Please visit our web site: www.AlekoProducts.com PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE! If you have questions about the assembly or operation of this product Or have missing or defective parts, please e-mail us at Sales@AlekoProducts.com Or call us (M-F 7:00 AM to 5:00 PM PST) at 253-872-3656...
