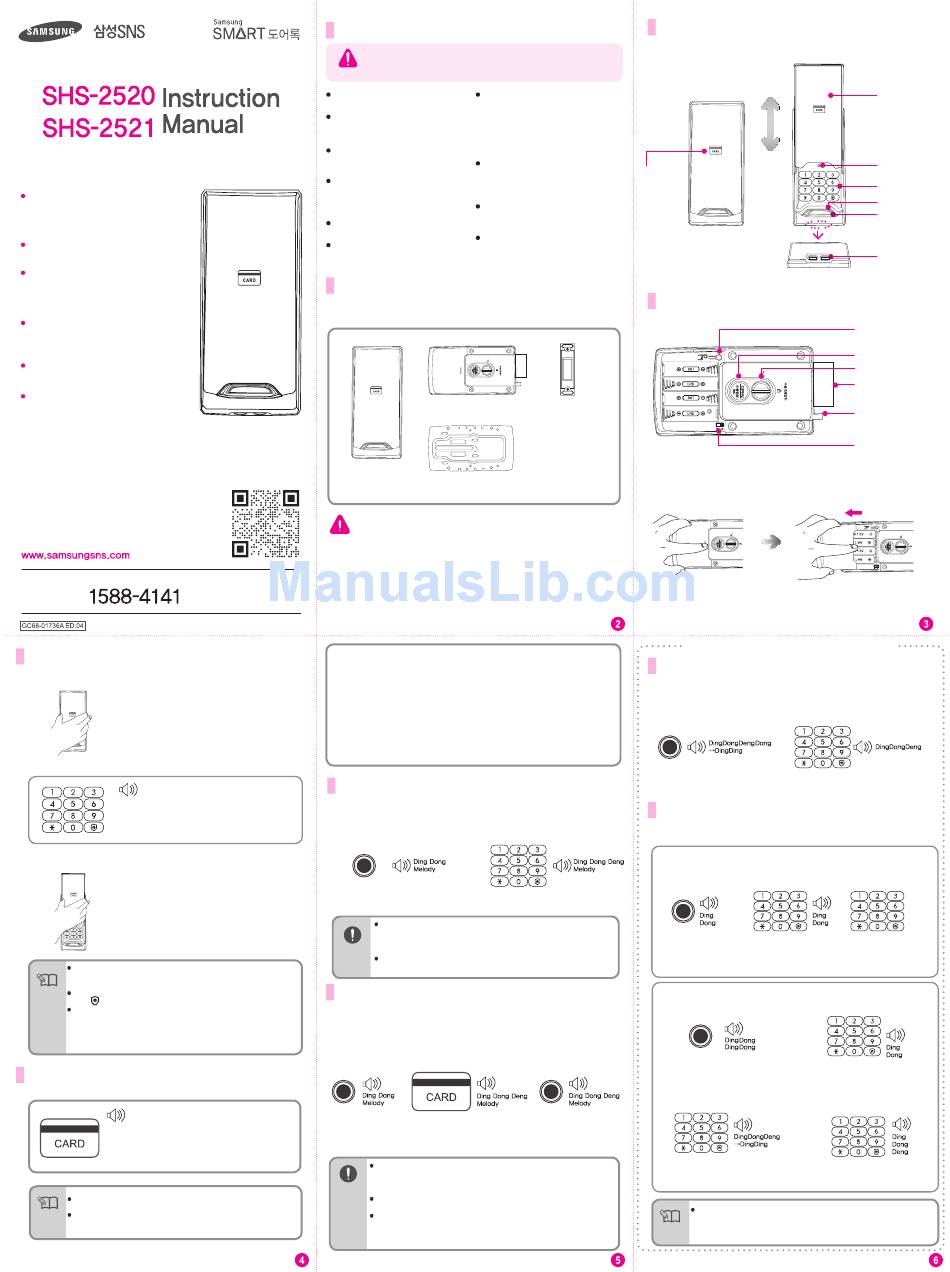

Samsung SHS-2520 Instruction Manual

Convenient Opening of the
Door
Simple operation via card and
passcode
Automatic lock feature
Safer with automatic lock feature
Prank Prevention Feature
In the case of entering unregistered
information, the attempt is
automatically blocked
Dual-Lock Feature
With dual-lock feature, the security
is enhanced
Fire Detection Feature
Built-in fire detection sensor
Crime Prevention Feature
When going out, crime prevention
feature can be used.
Internet Home Page
SamsungSNS(Inc.)
Anywhere in the country If you accurately provide the product name,
ServiceCenter
fault condition, and contact number, then
Representative
we will always provide kind assistance and
PhoneNumber quick service to customers' questions.
Opening the door from the outside
(passcode)
1. Press the [Number Input] button.
Raise the [number cover]
- With the number cover open,
press the [*] button
2. Enter the passcode.
Success :↑Ding Dong Deng Dong Melody
Fail : Ding Dong Ding Dong Melody
When all of the lights in the number
keypad show up, enter the passcode
and press [*] button.
3. Lower the [number cover]
Lower the [number cover]
Passcode must be entered with the number keypad lighted up, and
when the light is turned off, press the [*] button and enter it again
then.
When the passcode is incorrectly entered to cancel the input, press
Reference
the [ ] button and start from the beginning.
If the passcode is incorrectly entered for five consecutive sounds, a
different alarm sound is played for about 10 seconds, and the
operation of doorlock is paused for roughly 3 minutes. During the
operation pause status, "beep" sound is played every 10 seconds,
and after 3 minutes, a long "beep" sound is played, and the pause
status is automatically disabled.
Opening the door from the outside
(card, key tag)
Success :↑Ding Dong Deng Dong
Fail : Ding Dong Ding Dong
At the card recognition area,
contact the card and key tag
With the number cover opened, card or key tag is not recognized.
Reference
For the card that is not automatically recognized, press the
[card recognition] button and then try to be authenticated.
Precautions for Safety
Precautions for safety protect the user's safety and prevent damages
and inconvenience due to accidents. Please read this and use the
product properly.
Warning
Do not install or repair the product Properly fit the battery into the product
randomly as you want. onto its accurate (+/-) terminals.
When the battery is incorrectly placed
Do not install the product in a location
in its direction or charge as displayed
where the gap between the door and
into the battery room, leakage and
doorframe is more than 5mm.
breakage may occur, so please be
Cautiously manage the passcode so
careful.
that other people cannot know it, and
When the battery life is ended, replace
regularly change the number.
all the batteries at once, and avoid
Do not operate the product when your
using new and used batteries at the
hand is wet, and be careful to not let
same time.
water, beverages, and other liquid to
When cleaning the product, do not
get inside the product.
wipe it with water, benzene, or
Do not forcibly press or use a sharp
alcohol, and instead, use a dry cloth.
tool to hit the button.
Replace the batteries to new ones
When you are going out, always
within one week of first hearing the
check the ensure that the door was
battery replacement notification alarm.
fully locked.
Product Components
Product components may be changed depending on the
installation environment.
Inside of Main Unit
Outside
of Main Unit
Fixed Panel
Warning
You must carry or keep at least one
emergency key outside.
In the case of an emergency, please
read and learn the instruction for
manual switchgear.
Things to know before using this product
※ All registration and setting operate only when the door is open.
※ In addition to regular passcode, card, and key tag, master
information )passcode, card, and key tag) may be registered
additionally for use. Master information is not erased in the case of
regular passcode, card, and key tag registration. When the product
is first purchased, there is no registered master information
Tip : If the master information is registered, pressing register
button shortly will give "ding dong dong ding" sound instead of
"ding dong" sound.
Passcode Registration
Passcode can be registered in 4~12 digits, and only one
can be registered to use
1. Press the [Register] button. 2. Register the new passcode.
Open the battery cover and Enter the new passcode (4~12
shortly press [register] button. digits) and press the [*] button.
Please be careful to manage the passcode so that other people will
not know. Using the same passcode for a long period of time may
lead to its exposure, so regularly change the passcode for use.
Caution
Registered passcode cannot be deleted, so register a new passcode
to use.
Card and Key Tag Registration
When card or key tag is registered, previously registered card
and key tag information are all deleted, so try to register all
cards and key tags at once. Total of 20 card keys and key
tags can be registered (ISO 14443 Type A support)
1. Press the 2. Contact card and
[Register] button. key tag.
Open the battery
Contact the card or key
cover and shortly
tag that needs to be
press [register]
registered.
button.
To register various cards and key tags continuously, register the card
or key tag, and contact another card or key tag within 10 seconds. If
another card or key tag is not registered within 10 seconds, the
registration automatically ends.
Caution
To check if the card or key tag is normally registered, check the card
and key tag, and then close the door.
"Samsung SNS Doorlock" abides to the "ISO 14443 Type A standards,
and the cards, key tags, and NFC-use smartphones that completed
certification from "Samsung SNS Doorlock" are able to be registered on
the doorlock for use.
Names and Features (Outside)
Number cover
closed
Card
recognition
area
Names and Features (Intside)
Doorframe Strike Plate
(Strike)
Key-Tag (2EA)
'AA' Battery (LR6) (4EA)
Spacer
Instruction Manual
Installation Screw
Installation
Paper Diagram
Opening the cover of the main unit on the inside
Gently press the battery cover of the main unit on the
inside and pull the cover in the direction shown in the
arrow.
Only applicable in using master information
Initialization
(master information, passcode, card, key tag)
All registered information, including master information, are
deleted. When registered information is initialized, the passcode
is set to be '1234'.
1. Press the [Register] button.
Open the battery cover and
press the [register] button for
about 5 seconds.
Registration and changes to master passcode
Master passcode can be registered in 4~12 digits, and only one
master passcode can be registered to use.
Register the first master passcode
1. Press the
[Register] button.
Open the battery
cover and press the
[register] button
shortly.
Change the master passcode (if already registered)
1. Press the [Register] button.
3. End card key
registration
Open the battery cover and
press the [register] button
shortly.
3. Enter the master passcode
To end registration,
press the [register]
button of the main
unit on the inside.
Enter the master passcode that
you would like to register, and
press [*] button
Registered master passcode cannot be deleted, so it needs to be
changed to a new master passcode or used with initialization method to
delete all the registered information (master information, passcode,card,
Reference
and key tag).
Number cover opened
Opened
Number cover
Close
Reset hole
Number keypad
Display lamp
Card recognition
button
External power
contact are
Registration Button
OPEN Button
Manual Switchgear
Deadbolt
Door Opening Sensor
Automatic/Manual Lock
Conversion Switch
2. Enter master passcode.
When the light comes onto the
number keypad, enter the passcode
and then press the [*] button
2. Enter the master 3. Enter the master
information passcode
When the light comes Enter the master
onto the number passcode that you
keypad, enter '88' and would like to register,
then press [*] button. and press [*] button.
2. Enter the master information.
When the light comes onto the
number keypad, enter '88' and
then press [*] button.
4. Enter the master passcode
that is to be changed.
Enter the master passcode
that is to be changed, and
then press [*] button.
