  • Page 3: Product Features

    Product Features The door can be opened with a RF card. The door can be opened with a transit RF card. Up to 20 cards be registered. The door can also be opened with a password. Once the user’s password is registered, the door can be opened without a key by entering the registered password.

  • Page 4: Table Of Contents

    Contents Product Features Safety Cautions Notes before Operation Product Components Outer Body Parts Inner Body Parts Replacing the Batteries Using the Emergency Battery Basic Functions Initialization (Password, Card, Key Tag) Password Change Card and Key Tag Registration Deleting the Card or Key Tag Opening the Door from Outside with a Password Opening the Door from Outside with a Card or Key Tag Opening the Door from the Inside...

  • Page 5: Safety Cautions

    Safety Cautions This section contains important information to ensure the user’s safety and prevent potential damage to property. Please, read this section carefully and use the product accordingly. Warning, Caution and Note Explained: Warning Information given under this heading is information the user must be aware of to prevent physical harm.
  • Page 6 Cautions during Installation The user shall not install or Do not install the product in the repair the product without place where the gap between authorization. the door and the frame is 5mm or more. The manufacturer does not assume responsibility for damage to the If the gap is too wide, the product may product resulting from attempts to the...
  • Page 7 Cautions during Repair or Maintenance Be sure to correctly match the Replace all batteries immediately poles (+/-) when installing the after they run out of power, and batteries. Install the batteries never mix new batteries with with the correct poles (+/-). used ones.

  • Page 8: Notes Before Operation

    Notes before Operation Product Components Inner Body Support Panel Outer Body Support Panel and Outer body Fastening Bolts Strike and Support Panel Fastening Bolts Inner body Fastening Bolts Outer body Fastening (Rotating Prevention) Bolt Strike User Manual 'AA' Batteries (LR6) Key Tag The product components used may vary depending on the installation environment.

  • Page 9: Outer Body Parts

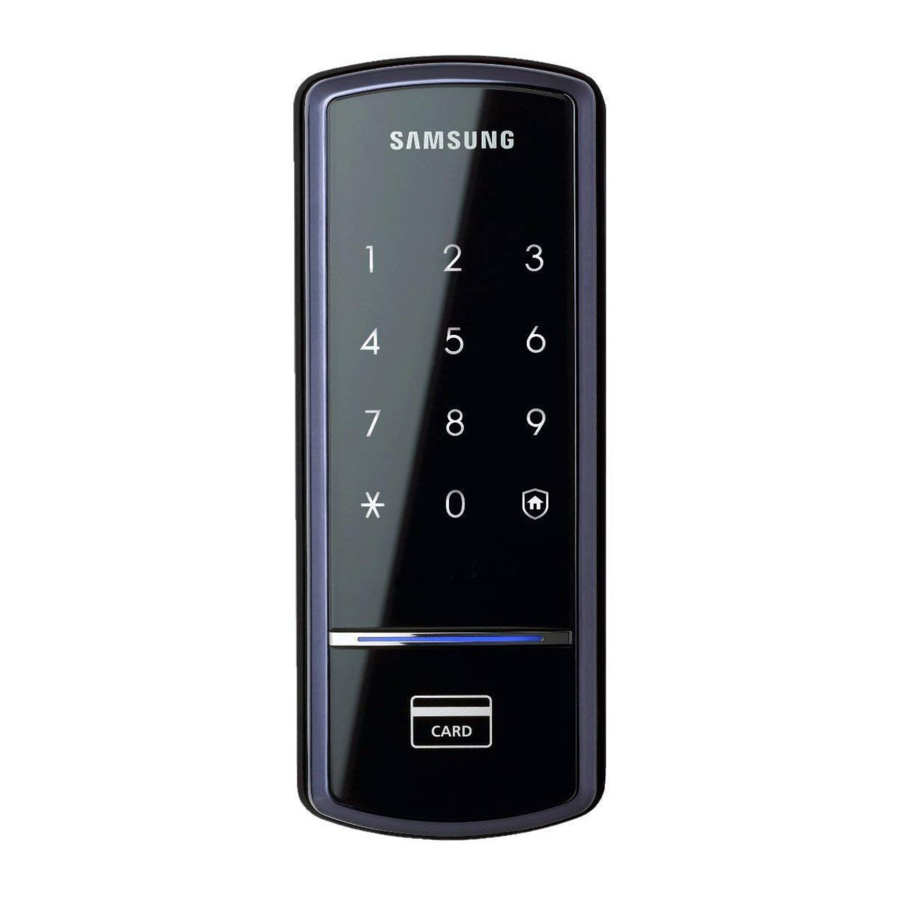

    Outer Body Parts Number Pad Lighted Number Pad Unlighted Number Pad LED Indicator Card Reader Reset Switch External Power Port Name Description Number Pad Enter numbers to register, change and delete a password. The door can be opened by entering the registered password onto the number pad.

  • Page 10: Inner Body Parts

    Inner Body Parts Registration Button OPEN/DOUBLE LOCK Button Manual Knob Deadbolt Door Opening Sensor Automatic /Manual Locking Switch Battery Cover Name Description Registration This button is used to change the password and register a card or a Button key tag. OPEN/DOUBLE This button is used to unlock the door from the inside and to set the LOCK Button...

  • Page 11: Replacing The Batteries

    Replacing the Batteries 1. Battery Replacement Alarm Generation If the melody of “Blues for Elise” sounds when Blues for opening the door with the password or a card (key Elise~ tag), it is time to replace the batteries. Battery Life Although actual battery life differs depending on the manufacturer, date of production and operation environment, 4 1.5V AA alkaline batteries can last for ten months, based on an average of 10 uses...

  • Page 12: Using The Emergency Battery

    Using the Emergency Battery 1. When the Lock Fails to Operate Due to Discharged AA Batteries If the batteries are not replaced after their replacement time comes, they will be completely discharged and the lock will not operate. Password Entry Recognition of Card or Key Tag The door is not opened.

  • Page 13: Basic Functions

    Basic Functions This section describes the ways to initialize the information registered in the lock, to register the password and card data, and to open or close the door. Initialization (Password, Card, Key Tag) All registered data (password, card, key tag) are deleted. After initialization, the password is set to ‘1234’, and the registered card, key tag data are erased.

  • Page 14: Password Change

    Password Change The password can be 4~12 digits number. Only one password can be registered. Please register a new password after initialization. Open Always hold the door open while registering or changing the password. 1. Pressing the [Register] button (from the inside) DING DONG Open the battery cover of the inner body and briefly press the [Register] button.
  • Page 15 3. Entering a New Password (from the outside) DING DONG Enter the new password (4 to 12 digits) and press the [ ] button. - To prevent burglary, it is recommended to use a password of 6 digits or longer. (Only numbers between 0 and 9 can be used.) 4.

  • Page 16: Card And Key Tag Registration

    Card and Key Tag Registration Up to 20 cards, including the key tag, can be registered. (Only ISO14443 A Type is available.) Registering a card or key tag is available while the door is open. 1. Pressing the [Register] Button (from the inside) DING DONG Open the battery cover of the inner body and briefly press the [Register] button.
  • Page 17 4. Terminating Card Registration DING DONG DENG Press the [Register] button on the inner body to terminate the registration. 5. Confirming Card or Key Tag Registration (from the outside) Touch the [Number Pad], and then lightly press the registered card to the card reader. - Please refer to "Opening the Door from Outside with a Card or Key Tag"...

  • Page 18: Deleting The Card Or Key Tag

    Deleting the Card or Key Tag Registered cards cannot be individually deleted. All card information is deleted when the card delete function is selected. Previously registered cards cannot be used to open the locked door after they are deleted. 1. Pressing the [Register] Button (from the inside) DING DONG DING DING Open the battery cover of the inner body and press and hold the [Register] button for 5 seconds.

  • Page 19: Opening The Door From Outside With A Password

    Opening the Door from Outside with a Password 1. Touching [Number Pad] Touching [Number Pad] will light up the number pad. 2. Entering the Password Multi-leveled Security Code Entry Mode Success: ↑ DING DONG DENG DONG Fail: DING DONG DING DONG When the numbers on the number pad When two arbitrary buttons are lighted,...

  • Page 20: Opening The Door From Outside With A Card Or Key Tag

    Opening the Door from Outside with a Card or Key Tag The door can be opened from outside using a card or key tag. Touch the [Number Pad] and place the registered card or key tag on the card reader. Applying the Card or Key Tag ↑...

  • Page 21: Opening The Door From The Inside

    Opening/Locking the Door from the Inside Locking the Door Opening the Door Automatically Automatically ↑ ↓ DING DONG DENG DONG DING DONG DENG DONG Press the [OPEN] button to lock the door Press the [OPEN] button in the inner body when it is closed in Manual Locking mode to open the door when it is locked.

  • Page 22: Additional Functions

    Additional Functions Multi-leveled Security Code Entry Mode Setting You can set the security mode suitable for your use when you open the door using a password. DING DING DONG DENG DONG Mode Setting [7] Button : Multi-leveled Security Code Entry Mode [9] Button : Common Mode...

  • Page 23: Double Authorization Mode Setting

    Double Authorization Mode Setting Double authorization mode requires both card and password to open the door, ensuring more security. You can either set up or cancel the function for your convenience. DING DING DONG DENG DONG Mode Setting [4] Button : Double authorization mode [6] Button :...

  • Page 24: Automatic/Manual Locking Setting

    Automatic/Manual Locking Setting The Automatic Locking mode allows for automatic locking of the door when it is closed. Manual Locking Setting Automatic Locking Setting Set the [Automatic/Manual Locking] Set the [Automatic/Manual Locking] toggle switch of the Inner Body to the ‘A’ toggle switch of the Inner Body to the ‘M’...

  • Page 25: Sound Setting And Releasing

    Sound Setting and Releasing The sound that is generated when the number buttons are pressed, when the door is locked or when the locked door is unlocked, can be set according to the user’s preference. Sound Function Setting The product is set to generate all sounds at the factory. (Set in 2 steps) DING DING DONG DENG DONG...

  • Page 26: Alarm Sound/Emergency Sound

    Alarm Sound/Emergency Sound Alarm Sound (Prank Prevention Function) This function generates an alarm sound and deactivates lock operation when it is improperly handled from the outside. Card or Password Error “Peep 20 times” This alarm will sound if an attempt is made to open the door with an invalid card, or if a wrong password is entered five times in a row.
  • Page 27 Setting the Security Function Function that allows alarm to be rung in case the door lock is manipulated from the inside. DING DONG DENG When the door is closed [ ] Press and hold the [ ] button on the of the outside body's number outer body for 3 seconds while the pad will light up.
  • Page 28 Intrusion Detection Function This function generates the alarm sound when an attempt is made to forcefully open the door from the inside or the outside. (This is a basic function of the lock, and cannot be separately set or released.) “Peep”...
  • Page 29 Double Locking The double locking function prevents opening of a locked door from outside. [Inside] DING DONG DENG Press the [OPEN] button for 3 seconds or longer from the inside while the door is locked. [Outside] Peep, Peep When the [Number Pad] is touch, the door cannot be opened while the double locking sound is generated.

  • Page 30: Troubleshootings

    Troubleshootings Please refer to the following if the lock does not operate properly. If the problem can still not be solved, contact the nearest service center. Power Source Problem Solution Remark - Check to ensure the batteries are in good condition, with the poles (+/-) correctly placed.
  • Page 31 The password, card or key tag registration data can - This could be a malfunction of the lock. Please call the be verified, but the nearest service center. door cannot be opened. Automatic Locking Problem Solution Remark - Check to ensure that the Automatic Locking mode is set. If the operation mode is set to Manual Locking, touch the [number pad] to lock the door.

  • Page 32: Operation Summary

    Operation Summary ※ Initialization, registration, change, and deletion are available while the door is open. Setting or Releasing Function Default (Press the buttons in the given order.) Initialization Press and hold the [Register] button for 10 seconds (Password, Enter the current password or ‘4560852580’ card, key tag all Press the button...
  • Page 33 Setting or Releasing Function Default (Press the buttons in the given order.) Double Press the [Register] button Press the button authorizatio Double and the button. n mode authorization mode Setting Press the [Register] button Press the button Common Mode and the button.

  • Page 34: Product Specifications

    Product Specifications Item Specifications Voltage 4 AA Alkaline 1.5 Batteries (LR6) (6V) Emergency Power 9V Battery (6LF22) (Separately sold) Source Operation Method Electronic Control Method (Password entry or card or key tag reading) Weight 1.7 Kg (including both inner and outer bodies) Outer Body 68.7 mm(W )×...

  • Page 37: Warranty

    Warranty...
