INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CoolBot PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Store It Cold CoolBot PRO

Summary of Contents for Store It Cold CoolBot PRO

  • Page 1 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    REBOOTING THE COOLBOT PRO ..........................23 CHECKS ON YOUR COOLBOT PRO ..........................24 MY COOLBOT PRO HAS A BLANK DISPLAY BUT THE POWER LIGHT IS ON .............. 24 MY HEATER DOES NOT SEEM TO BE WORKING ...................... 24 TEMPERATURE SENSORS CALIBRATION TEST ......................24 CHECKS ON YOUR A/C UNIT ............................

  • Page 3: Disclaimer And Warranty

    CoolBot Pro. User accepts all responsibility in the use of and monitoring of the CoolBot Pro and A/C. User assumes all risk of loss of property or product due to improper functioning of the CoolBot Pro (or A/C). User assumes all risk of injury and warrants that he/she will defend, indemnify and hold the seller harmless for any direct or consequential harm or damage that may result from the use of this product.

  • Page 4: What's In The Box

    (1) Data Cable - Data Transfer Cable (Silver or Gray) with RJ11 connector on both ends (1) Power Supply - Mini-USB port connector cable. Input: 110V-240V / Output: 5V, 1Amp (1) CoolBot Pro Quick Start Set Up Guide - 4 pages Rev: 2018 – 7A...

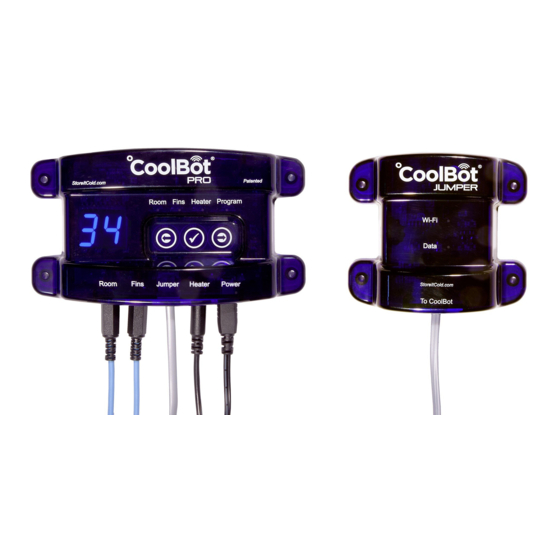

  • Page 5: Knowing Your Coolbot Pro

    KNOWING YOUR COOLBOT PRO FIG 1 Rev: 2018 – 7A ©2018 Store It Cold, LLC...
  • Page 6 “Program” will turn on solid (no blinking). The display will show a number (e.g. 7.8), which will be the firmware version on your CoolBot Pro. POWER INDICATOR LIGHT: This light is constantly on (solid), as long as your CoolBot Pro is plugged in and getting the correct power supply (110V-230V).

  • Page 7: How Does The Coolbot Pro Work With Your A/C

    NOTE: The CoolBot Pro can still work to cool your room without the Jumper. Just install the CoolBot Pro without the Data Cable and without the Jumper connected to it. Your CoolBot Pro will keep your cooler cold but you won’t be able to access data or change settings from the CoolBot Pro App.

  • Page 8: Before Installing Your Coolbot Pro

    Jumper and without a Wi-Fi connection just like the previous generation CoolBots. Go straight to the “INSTALLING YOUR COOLBOT PRO TO YOUR A/C” Section of this manual (page 9). NOTE: Your CoolBot Pro will keep your cooler cold but you won’t be able to access data or change settings from the CoolBot Pro App. •...

  • Page 9: Installing Your Coolbot Pro

    CoolBot Pro/Jumper. STEP 3 In an area where your phone gets good Wi-Fi reception, plug in the CoolBot Pro’s Power Supply. You should see codes and flashing mode lights for several seconds. These should settle down to one flashing Program light, and the code “E0”...

  • Page 10: Installing Your Coolbot Pro To Your A/C

    You are all set up! Unplug your CoolBot Pro from the power supply and proceed to “INSTALLING YOUR COOLBOT PRO TO YOUR A/C” Section of this guide and then to THE COOLBOT PRO APP Section to learn about the amazing features of your web base app.
  • Page 11 Use just 1 layer of electrical tape to attach the end of the Secondary Sensor to the OUTSIDE of the aluminum foil connection from STEP 5. See picture below. For videos and pictures on how to locate the secondary sensor go to: https://www.storeitcold.com/support Secondary A/C Sensor Main A/C Sensor Rev: 2018 – 7A ©2018 Store It Cold, LLC...
  • Page 12 Use a pen/pencil to open a small gap in the fins about 1” from the bottom and near the center (horizontally), between the bottom and second horizontal cooling pipes. Take the cable sensor coming from the CoolBot Pro port labeled “Fins” and gently insert just 1/4 inch (0.7 cm) of the TIP into the small gap.

  • Page 13: Changing Settings On The Coolbot Pro

    CHANGING SETTINGS ON THE COOLBOT PRO The CoolBot will always remember all your last settings even if it has been unplugged for a long time. ROOM TEMPERATURE SETTING This setting is the average temperature you want in your cooler. NOTE: The factory default temperature is set at 42°F/5.6°C.

  • Page 14: Switching Between Fahrenheit And Celsius

    The CoolBot Pro App is a web-based app and is not available from your mobile phone App Store. On most devices you can add a link to your home screen for the CoolBot Pro App so you can access it just like any other app. While in the CoolBot Pro App on your browser do the following: •...

  • Page 15: The Status Tab - Default Screen

    THE STATUS TAB – Default Screen This is the default tab. Every time you open your app, it will default to this screen. Current Tab – Status Tab Current Room Temperature CoolBot Pro Name – Set by the user Current System State (see System States...
  • Page 16 CoolBot briefly offline Device is disconnected, but for less than 30 minutes Check A/C, room, etc. - or wait to see how long it persists Rev: 2018 – 7A ©2018 Store It Cold, LLC...

  • Page 17: The Devices Tab

    THE DEVICES TAB On the Devices tab, you can see more details about the device, set the CoolBot Pro’s settings, and turn on Notifications for when the temperature goes outside of a set range or the CoolBot loses its network connection Current Tab –...
  • Page 18 THE COOLBOT PRO before adjusting Power ON/OFF CoolBot Pro – click to choose This will ONLY turn ON and OFF your CoolBot Pro NOTE: Your A/C unit will keep running and the Room will be held at 60°F (or the lowest setting of your A/C) Confirmation Icons –...
  • Page 19 CoolBot Pro and general information of the app and Wi-Fi signal. Hardware Setup Menu Clicking on the Hardware Setup Expandable Menu gives you choices for resetting your CoolBot Pro, downloading latest firmware for the CoolBot Pro controller, and reconfigure you Wi-Fi connection.
  • Page 20 A confirmation screen will pop before resetting. Update Firmware – This option downloads the latest Firmware version to your CoolBot JUMPER. The tab will become gray and the Status Icon will indicate “updating” in yellow until done. Rev: 2018 – 7A ©2018 Store It Cold, LLC...

  • Page 21: The Account Tab

    Reconfigure Wi-Fi – This option will walk you step by step through the entire Wi-Fi configuration process (just like the first time you set up your CoolBot Pro to connect to your Wi-Fi Network). Press the left arrow to go back to the rest menu.

  • Page 22: Error Codes On Your Coolbot Pro

    The Jumper is in the middle of getting Wi-Fi configuration from the mobile app. Jumper/Wi-Fi If you see this for a long time try power-cycling the CoolBot Pro (unplug- wait 6 sec- plug again) The Jumper is connecting to the Wi-Fi network.

  • Page 23: Er Is Showing On My Coolbot Display

    Inspect the cable for possible damages in the cord or on the tip. ● Clean the plug end of the sensor (jack connector) with a cotton cloth and plug it back in the CoolBot Pro port a couple times making sure it goes all the way in.

  • Page 24: Eh" Showing On My Coolbot Display

    If the error persists after 20 seconds, the HEATER cable is bad and needs replacement. ATTENTION! The CoolBot Pro does not have a workaround mode for a bad Heater Cable. DO NOT plug anything other than a replacement Heater Cable in the Heater port- it won’t work! To order a replacement Heater under warranty (1 year) please contact our support team at support@storeitcold.com.

  • Page 25: Checks On Your Coolbot Pro

    MY COOLBOT PRO HAS A BLANK DISPLAY BUT THE POWER LIGHT IS ON The most likely cause is that your CoolBot is in Sleep mode. Either press any button on the CoolBot Pro, or change the Power setting on the Devices tab in the app.

  • Page 26: Proper Installation And Settings

    We’d love to hear how your CoolBot is doing and learn more about how you are using it. Just fill out our Testimonials Form online, and as a way to say “Thanks!”, we will double your CoolBot Pro warranty from 1 to 2 years! You can find the Testimonials Form at: https://www.storeitcold.com/welcome/...
