Mindray Accutorr 7 Quick Reference Manual

Mindray Accutorr 7 Quick Reference Manual

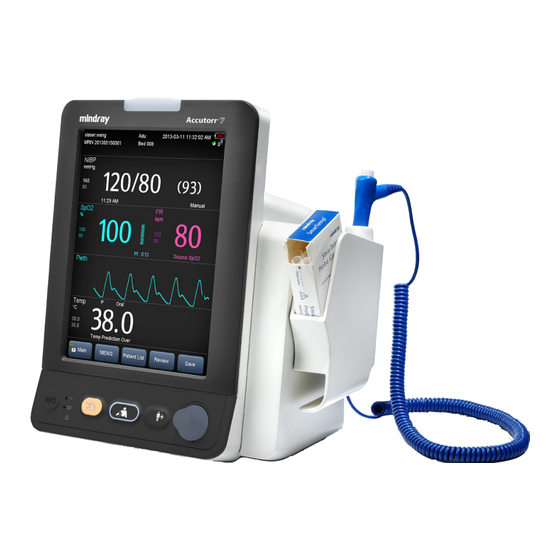

Patient monitor
Hide thumbs Also See for Accutorr 7:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Operator's Manual
Accutorr ®
Q u i c k R e fe re n ce G u i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accutorr 7 and is the answer not in the manual?

Questions and answers

Related Manuals for Mindray Accutorr 7

Summary of Contents for Mindray Accutorr 7

  • Page 1 Accutorr ® Q u i c k R e fe re n ce G u i d e...
  • Page 2 Note: The Accutorr 7 Quick Reference Guide is not intended as a replacement to the Operating Instructions. Prior to operating the equipment, the user must be familiar with the Operating Instructions Manual contents. This document is a guideline only to be used as an aid to...

  • Page 3: Table Of Contents

    Table of Contents Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Hard Keys .
  • Page 4 Table of Contents (cont'd) Reset Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Pause ALL Alarms .

  • Page 5: Keys

    Accutorr ® Quick Reference Guide KEYS Hard Keys Power ON/OFF Switch • Press this key to turn the monitor on. • Press this key to enter/exit Standby mode. • Press and hold this key for more than 2 seconds to turn the monitor off.

  • Page 6: Patient Setup

    The Patient Setup menu allows the clinician to admit a patient through a barcode scanner. To admit a patient through linear barcode scanner on the Accutorr 7 monitor: a. Connect the barcode scanner to the USB connector on the monitor.

  • Page 7: Admit Patient And Enter Demographics (Local Patient List And Adt Database

    The Patient Setup menu allows the clinician to enter patient demographics from the local patient list or the ADT database (hospital's patient database). To enter demographics from the local patient list on the Accutorr 7 monitor: a. Select the Patient List quick key to access the Local Patient List tab.

  • Page 8: Adjust Patient Size

    Discharge A Patient The Discharge function clears all patient information and restores default (preconfigured) settings. To discharge a patient on the Accutorr 7 monitor: • Admit a new patient • Place the monitor into Standby • Turn the monitor off •...

  • Page 9: Standby

    Select Yes to confirm. Resume Monitoring To exit Standby and resume monitoring, select any key on the Accutorr 7 monitor. *If Standby is enabled in the Remote Control menu of BeneVision Central Monitoring System (BeneVision CMS): Selecting any key on the BeneVision CentralStation and BeneVision WorkStation will remove patient from Standby on the Accutorr 7 monitor.

  • Page 10: Nibp

    Accutorr ® Quick Reference Guide d. Select the Main quick key or to return to the main display. NIBP* Factors that Affect Blood Pressure Measurement Accuracy The accuracy of non-invasive blood pressure (BP) measurement has been shown to be affected by numerous factors. Some of the more important aspects (based on published literature) to consider while measuring BP are: • T he cuff should fit snugly, but with enough room for two fingers to be placed between the cuff and the patient’s arm (on adults), and loosely on...
  • Page 11 Accutorr ® Quick Reference Guide legs kept uncrossed. Unsupported back and feet could increase BP by up to 15 mmHg, while crossed legs could result in a 4 to 12 mmHg increase. • O ther factors that have been shown to result in an overestimation of BP are labored breathing (5 to 8 mmHg), full bladder (10 to 15 mmHg), pain (10 to 30 mmHg).

  • Page 12: Initiate A Non-Invasive Blood Pressure Measurement (Nibp)

    NIBP measurement on the Accutorr 7 monitor. Stop Non-Invasive Blood Pressure Measurement (NIBP) To stop the current NIBP measurements on a patient on the Accutorr 7 monitor, you can press the hardkey on the monitor's front panel during the NIBP measurement.

  • Page 13: Set A Non-Invasive Blood Pressure Measurement Interval

    Quick Reference Guide Set A Non-Invasive Blood Pressure Measurement Interval The Accutorr 7 monitor allows the clinician to set a pre-configured interval for a NIBP measurement to be obtained automatically. To set an automatic interval on the Accutorr 7 monitor: a.

  • Page 14: Alarms

    Monitoring System (BeneVision CMS): Adjusting alarm limits on BeneVision CentralStation and BeneVision WorkStation automatically adjust alarm limits on the Accutorr 7 monitor. Adjusting alarm limits on the Accutorr 7 monitor can automatically adjust alarm limits on BeneVision CentralStation and BeneVision WorkStation.

  • Page 15: Alarm Status Symbols

    Monitoring System (BeneVision CMS): Adjusting alarm responses on BeneVision CentralStation and BeneVision WorkStation will not adjust alarm responses on the Accutorr 7 monitor. Adjusting alarm responses on the Accutorr 7 monitor will not adjust alarm responses on BeneVision CentralStation and BeneVision WorkStation.

  • Page 16: Reset Alarms

    ® Quick Reference Guide RESET ALARMS* To reset an alarm for the duration of the alarm on the Accutorr 7 monitor, press hardkey on the front panel of monitor. *If Alarm Pause&Audio Pause&Alarm Reset is enabled in the Remote Control...

  • Page 17: Screen Display

    • N IBP List: Split screen with NIBP list on the lower portion of the display with real time waveforms and numeric parameters HISTORICAL TRENDS To display and record Tabular (List) trends on a patient on the Accutorr 7 monitor: a. Select the Review quick key. b. Select the Spot Check Trends tab.

  • Page 18: Mews

    Enter all required manual inputs. c. Clinical score will be automatically be calculated and displayed. VOLUMES The alarm volume and key volume can be adjusted on the Accutorr 7 monitor. Volume Alarm To adjust the alarm volume on the Accutorr 7 monitor: a.

  • Page 19: Date And Time

    Select the Main quick key or to return to the main display. PARAMETER COLORS The Accutorr 7 monitor provides the ability to adjust the parameter’s numeric and waveform (if applicable) color. To adjust the parameter’s color on the Accutorr 7 monitor: a.

  • Page 20: Lock/Unlock Touchscreen Display

    LOCK/UNLOCK TOUCHSCREEN DISPLAY The Accutorr 7 monitor provides the ability to lock and unlock the touchscreen display. To lock the touchscreen display on the Accutorr 7 monitor press and hold the Main quick key for 3 seconds until appears. To unlock the touchscreen display on the Accutorr 7 monitor press and hold Lock for 3 seconds until the Main quick key appears.

  • Page 21: Disinfecting

    Accutorr ® Quick Reference Guide Disinfecting Disinfect your equipment as required in your hospital's servicing schedule. Cleaning equipment before disinfecting is recommended. The following table lists approved disinfectants. Product Name Product Type Ingredients Sodium hypochlorite bleach Liquid Sodium hypochlorite 10% Isopropanol Liquid Isopropanol 70%...
  • Page 22 Mindray DS USA, Inc. 800 MacArthur Blvd., Mahwah, NJ 07430 Tel: 800.288.2121 or 201.995.8000 www.mindray.com 0 4 6 - 0 0 5 8 4 4 - 0 0 ( 3 . 0 )
