Filling the Fuel Tank

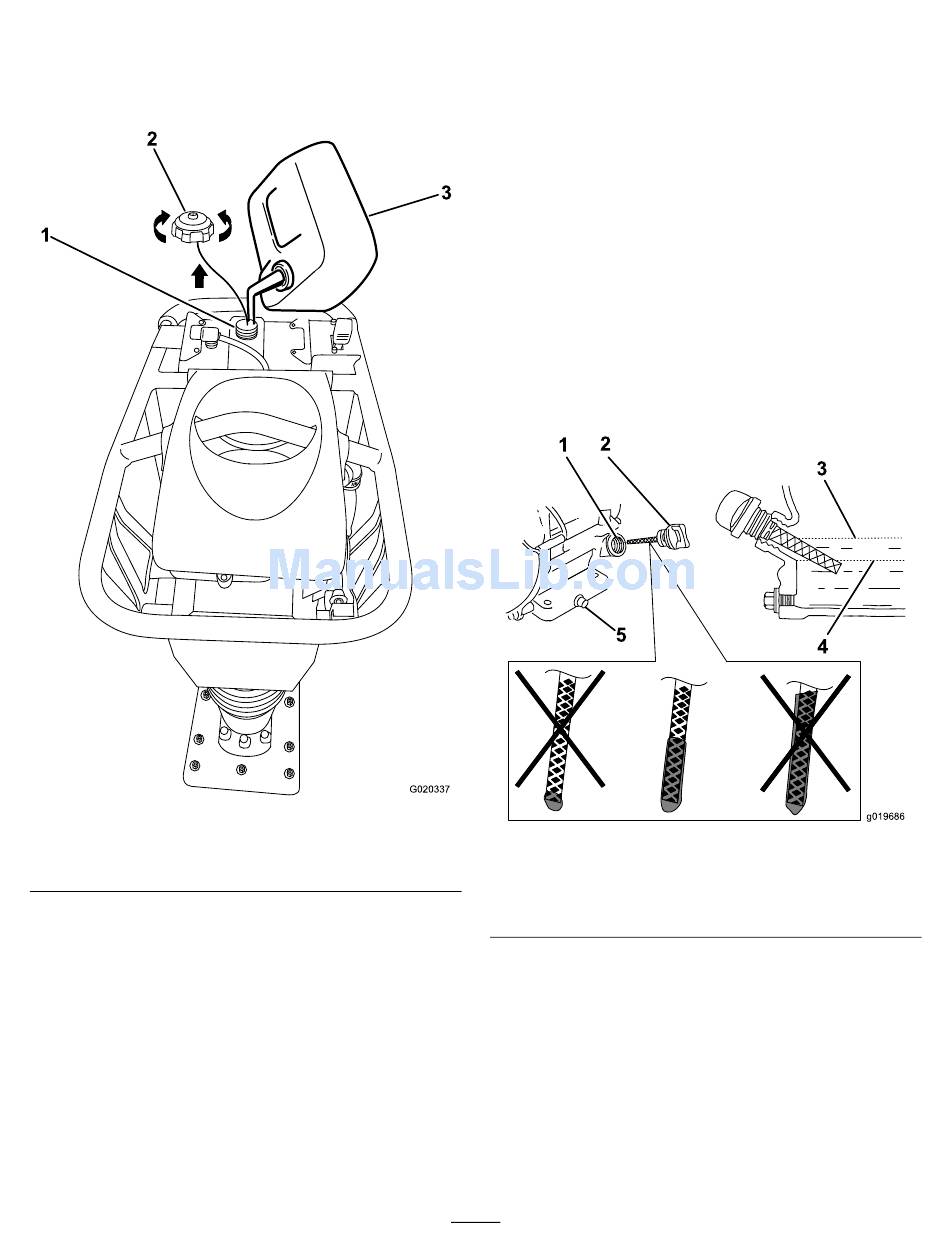

1. Park the machine on a level surface and stop the engine.
2. Allow the engine to cool.
3. Clean around the fuel tank cap and remove it (Figure 9).
2
1
1. Fill with gasoline here
2. Gasoline cap
4. Add unleaded gasoline to the fuel tank, until the level
is 6 to 13 mm (1/4 to 1/2 inch) below the bottom of
the filler neck.
Important: This space in the tank allows gasoline
to expand. Do not fill the fuel tank completely full.
5. Install the fuel tank cap securely.
6. Wipe up any gasoline that may have spilled.

Checking the Engine-oil Level

Oil Type: 4-cycle engine oil that meets or exceeds the
requirements for API service category SJ, SL, SM, or higher.
Figure 9
3. Gasoline can
Crankcase Capacity:
•
0.28 L (0.30 US qt) for models 68034 and 68035
•
0.40 L (0.37 US qt) for model 68036
Viscosity: SAE 10W-30 is recommended for general use.
1. Stop the engine and allow it to cool.
2. Tilt the machine so that the engine is level.
3
Important: Prop or lean the machine against
something to ensure that it does not fall over.
3. Clean around the oil dipstick.
4. Remove the dipstick and wipe the end clean.
5. Slide the dipstick fully into the dipstick tube without
threading it into the filler neck.
6. Pull the dipstick out and look at the end.
The oil should be level with the upper-limit mark
(Figure 10).
1
G020337
1. Filler tube
2. Dipstick
3. Upper limit
Important: Running the engine with a low oil
level can cause engine damage. This type of
damage is not covered by warranty.
7. If the oil level is low, slowly pour only enough oil into
the crankcase to raise the level to the upper limit.
Important: Do not overfill the crankcase with oil
because the engine may be damaged.
8. Install and secure the dipstick.
10
2
5
Figure 10
4. Lower limit
5. Oil-drain bolt
3
4
