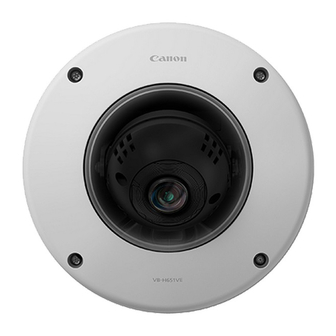

Canon VB-H651VE Installation Manual

1
ENGLISH
2

Network Camera

Installation Guide

Please be sure to read the "Safety Precautions" section for correct use. After reading this
Installation Guide, keep it in a readily accessible location for future reference.
* Some cameras are not available in certain countries or regions.
Caution
Request a professional installer for all installation work. Never try to install the
camera yourself. Doing so may result in unforeseen accidents such as dropping
the camera or electric shock.
Check Included Items
Camera, Screws (M4) x 4 Template
Setup CD-ROM Warranty Card
Safety Wire, Screws (M4) x 2 Ceiling Plate
LAN Cable Cap Packing Attachment
Zip Tie GND Screw (M3) x 1
Waterproofing Tape Waterproofing explanation sheet
Accessories
The following accessories can be purchased separately as necessary. Some accessories are not
available in certain countries or regions.
Pendant Mounting Kit PC640-VB
Dedicated accessory used to install the camera to the end of pipe that extends from high ceilings,
such as in big-box stores.
Dome Unit DU640-S-VB
Smoked dome cover.
Sunshade Cover SC640-VB
Dedicated accessory to protect the camera body from direct sunlight.
Heater Unit HU641-VB
Dedicated accessory attached to the interior to maintain operation temperature within the dome
and achieve stable operation even in extremely cold environments.
Canon AC Adapter PA-V18
Dedicated AC adapter for this camera.
Safety Precautions

Installation Precautions

Warning
Failure to follow the instructions may result in death or serious injury.
Do not install in the following places:
• Places in strong direct sunlight, near heat-generating objects, or locations subject to
high temperatures
• Places near fire sources or flammable solvents (alcohol, thinner, fuel, etc.)
• Places subject to oily smoke or steam
• Confined or enclosed places
Failure to do so may result in fire or electric shock.
• Insulate the ends of cables you are not using.
Failure to insulate may result in fire or electric shock.
Notes on Power Supply
• Only use the dedicated AC adapter (sold separately) for AC power.
• Do not set any heavy objects on the power cable (or the LAN cable for a PoE power supply).
• Do not pull, forcibly bend, scratch, or modify the power cable (or the LAN cable for a
PoE power supply).
• Do not cover or wrap the AC adapter (sold separately) with cloth or blankets.
Failure to do so may result in fire or electric shock.
Caution
Failure to follow the instructions may result in injury.
For installation or inspection of this camera, consult the dealer where you purchased
the product.
• This installation should be made by a qualified service person and should conform to
all local codes.
• When installing, make sure the surface is capable of withstanding the total weight of the
camera and accessories, and sufficiently reinforce if necessary.
• Be sure to use installation screws designed for the type of surface the camera is to be
installed.
• Periodically check the parts and screws for rust and loosening, in order to prevent
injuries and equipment damage due to falling items.
• Do not install in unstable places, places subject to significant vibration or impact, or
places subject to salt damage or corrosive gas.
• Do not install in places subject to strong winds.
• Do not install where snow can accumulate directly on the camera.
• Be sure to attach the safety wire when installing the camera.
Failure to do so may result in the camera falling or other accidents.
• Do not touch the edges of metal parts with bare hands.
• Be careful not to get your fingers caught when installing.
Failure to do so may result in injuries.
The contents of this guide are subject to change without any prior notice.
BIE-7175-000
Installation Guide (This document)
Dedicated wrench
RJ45 Coupler
Waterproof Packing
Multi-Cable
Caution
Failure to follow the instructions may result in property damage.
• Do not move the lens unit by hand.
• Do not install on an unstable surface.
• To maximize shock resistant specifications, do not install on insufficiently strong
surfaces or surfaces subject to significant vibration.
• After turning off the power, do not turn the power on again for at least five seconds.
• Take measures to remove static electricity before performing any procedures.
• If there is condensation, please wait to power on, until the condensation dissipates.
• Please waterproof and dust-proof camera, when installing outdoors.
Failure to do so may result in malfunctions.
• Take care not to damage wiring or piping.
Failure to do so may result in damage to peripheral items.
Important
We recommend the installation of a lightning arrester (a surge protection device) as a measure against
failures caused by lightning strikes. Please refer to our website for details.
Precautions for Installing the Camera Outdoor
When installing the camera outdoors, observe the following
precautions to retain waterproof/dustproof capabilities.
• Use the sunshade cover (sold separately) when installing in a location
with direct sunlight.
• Completely wrap the cable connections and the ends of cables you
are not using, including the connectors, with waterproof tape up to
the cable jacket, so as not to allow water to enter. Please refer to
the waterproofing explanation sheet for details on how to wrap the
waterproofing tape.
• When mounting the camera onto a wall or other upright surface, make
sure that the cables and composite pipe are facing down to prevent
rain infiltration.
• If wiring the camera through the wiring hole on the bottom, use
silicone sealant or a rubber mat to ensure waterproofing. Also use an
insect repellent sponge if necessary.
• Firmly fix the dome case to the main unit of the camera with the lock screws, taking care not to
pinch cables between the main unit and dome case.
Precautions for Use
Warning
Failure to follow the instructions may result in death or serious injury.
• If you discover defective conditions such as smoke, strange sounds, heat or strange
odors, immediately stop using the camera and contact your nearest dealer.
Fire or electric shock may result from continued use of the product.
• If thunder starts, stop installation or inspection etc. and do not touch the camera or
continue connecting the cable.
• Do not disassemble or modify the camera.
• Do not damage the connecting cable.
• Do not insert foreign objects such as water or metal into the camera.
• Do not use flammable sprays near the camera.
• Do not leave LAN cables, external power supply, or the power connector for the AC
sold separately ) connected when the camera is not in use for long periods.
adapter (
• Do not use flammable solvents such as alcohol, paint thinner or benzine when cleaning
the camera.
Failure to do so may result in fire or electric shock.
Specifications
Please refer to the Appendix – Specifications for specifications not listed below.
Lens 2.4x optical zoom (4x digital zoom) lens (electric drive)
Viewing Angle For 16:9 aspect ratios
Horizontal: 122.1° (W) – 50.1° (T)
For 4:3 aspect ratios
Horizontal: 89.2° (W) – 37.6° (T)
Pan Angle Range 350° (±175°)
Tilt Angle Range 150° (±75°)
Rotation Angle Range 350° (±175°)
Network Terminal LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
– Use a category 5 or better LAN cable, 100 m (328 ft.) or less in length.
Audio Input Terminal 3.5 mm ( 0.14 in.) mini-jack connector (monaural)
(common for LINE IN & MIC IN)
Audio Output Terminal 3.5 mm ( 0.14 in.) mini-jack connector (monaural)
(LINE OUT)
External Device I/O Terminal Input x 2, Output x 2
Memory Card microSD Memory Card, microSDHC Memory Card, microSDXC Memory Card Compatible.
Operating Environment Temperature:
When the heater unit (sold separately) is installed
Operating Temperature Range:
AC: -40°C – +55°C (-40°F – +131°F)
Start-up Temperature Range:
AC: -30°C – +55°C (-22°F – +131°F)
– Sunshade cover (sold separately) necessary when under direct sun exposure
When the heater unit (sold separately) is not installed
AC, DC, PoE: -10°C – +55°C (+14°F – +131°F)
– Sunshade cover (sold separately) necessary when under direct sun exposure
Humidity: 5% – 85% (without condensation)
Storage Environment Temperature: -30°C – +60°C (-22°F – +140°F)
Humidity: 5% – 90% (without condensation)
Installation Method Ceiling mount/Surface mount
Power Supply PoE: PoE power supply via LAN connector (IEEE802.3at Type1 compliant)
AC Adapter: PA-V18 (100 – 240 V AC) (sold separately)
External power source: 24 V AC/12 V DC
Power Consumption PoE: Max. approx. 8.9 W*
AC Adapter PA-V18: Max. approx. 10.2 W (100 V AC)
Max. approx. 10.4 W (240 V AC)
DC: Max. approx. 9.3 W
AC: Max. approx. 8.7 W
Max. approx. 21.7 W*
* 1 Class 0 power sourcing equipment (requests 15.4 W)
* When the heater unit (sold separately) is installed
